Micro Computer Desktop Tensile Strength Tester

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：Tensile Testing Machine
  • Accuracy Grade：0.5
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Dimension(W*D*H)：40*45*127cm

Base Info

  • Model NO.：HT-7001-SH
  • Transport Package：Wooden Case
  • Specification：ISO Certificate
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

Basic Info.

Model NO. HT-7001-SH Transport Package Wooden Case Specification ISO Certificate Trademark HOTOTECH Origin Dongguan HS Code 9013809000 Production Capacity 100 Sets Per Month

Product Description

Micro Computer Desktop Tensile Strength Tester

Micro computer desktop tensile strength tester purpose
Accessories such as the different grips, elongation measuring -devices, etc. Are equipped according to the requirements specified in the contract, our sales representative will also give proper suggestions to the customers beforehand.

Micro computer desktop tensile strength tester Function and feature
1. Capacity (optional): 50, 100, 200, 500N
2. Unit(Switchable): Kgf, gf, lbf, N, psi, kpa
3. Load Resolution: 1/20, 000
4. Load Accuracy: ± 1%
5. Stroke(exclude the grips): 600mm
6. Method of Speed Input: Knob
7. Test Speed: 25~300mm/min adjustable
8. Sample rate: 10 times/sec
9. Motor: AC motor with variable freq. Drive
10. Printer: With (optional)
11. Dimension(W*D*H): 40*45*127cm
12. Weight: 34kg
13. Power: 220V, 3A or specified by user

Company Introduction
  Dongguan Hong Tu Instrument Co.,Ltd specializes in developing and producing testing machines and our company established in 2006 year , we have firm connections and full cooperation from China's National Third-Party Quality Inspection and Notarization Center on producing and developing high-precision testing machines
  We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make yu utmost profit

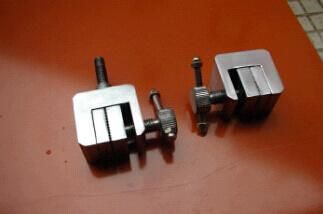

Micro Computer Desktop Tensile Strength Tester                          This is leather clamp
Micro Computer Desktop Tensile Strength Tester
 Capacity  (optional) 50,100,200,500N
 Unit(Switchable) kgf, gf, lbf, N, psi, kpa
 Load Resolution 1/20,000
 Load Accuracy ±1%
 Stroke(exclude the grips) 600mm
 Method of Speed Input  Knob
 Test Speed 25~300mm/min adjustable
 Sample rate 10 times/sec
 Motor AC motor with variable freq.drive
 Printer with (optional)
 Dimension(W*D*H) 40*45*127cm
 Weight 34kg
 Power 220V, 3A or specified by user
