• Model NO.：DZY-III
• Drop Height of Heavy Hammer：450mm
• Light Hammer Drop Height：300mm
• Hammer Head Diameter：50mm
• Transport Package：Wooden Case
• Origin：Zhejiang
• HS Code：9024800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. DZY-III Drop Height of Heavy Hammer 450mm Light Hammer Drop Height 300mm Hammer Head Diameter 50mm Transport Package Wooden Case Origin Zhejiang HS Code 9024800000 Production Capacity 30 Sets/Month

Product Description

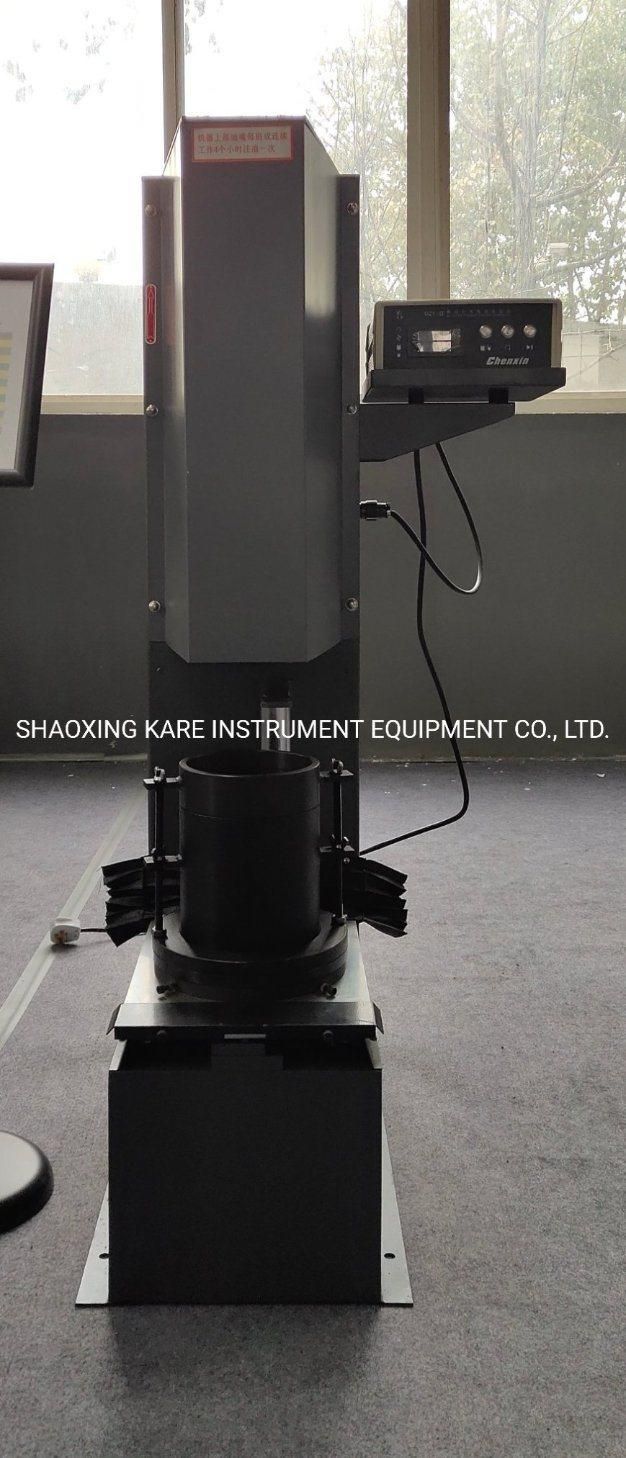

DZY-III Electric Standard Proctor Compactor

1. Instruction
"DZY-III Electric Standard Proctor Compactor " is machine electricity integral instrument of manufacture according to the highroad experimenting profession standard (TO131-93) that ministry of communication have issued, its structure and function tally to experiment norm request completely. It has two kinds of functions of the light type compaction device and the weight type compaction device, can realize auto-count inside operation process, stop machine automatically. This instrument that the work is dependable, the operation is convenient, the vestige of hammer distributes even, try piece quality is good.

2. Structure
Mechanical part and electrical control part

3. Characteristics
3.1. Light compact and heavy compact, two functions
3.2. It has the function of automatic counting during operating
3.3. Automatic stop after test
3.4. Operating easily
3.5. Work reliable
3.6. The hammer track spreads even
3.7. The specimen quality is good
3.8. It adopts high table counter for controlling. (world advanced CMOS circuit)

Operating voltage	380V
Compact speed	30 times/minute± 2times
Motor power	370W 1440r. p. m
Setting compact time	0-99times
