• Model NO.：WES-600B
• Oil Cylinder Position：Under
• Column Quantity：2
• Lead Screw Quantity：2
• Transport Package：Wooden Case
• Origin：Zhejiang
• HS Code：9024101000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. WES-600B Oil Cylinder Position Under Column Quantity 2 Lead Screw Quantity 2 Transport Package Wooden Case Origin Zhejiang HS Code 9024101000 Production Capacity 20 Sets/Month

Product Description

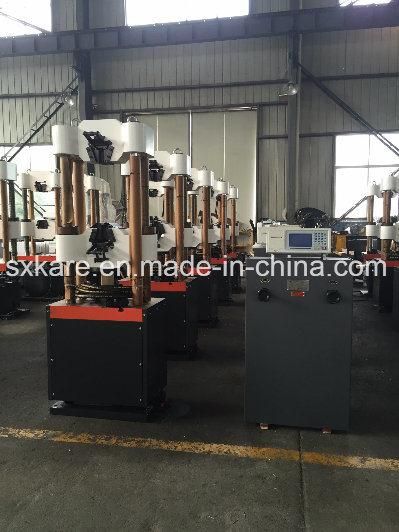

WES-600B Digital Display Tensile Testing Machine
1. Instroduction
Model WES-600B Digital Display Tensile Testing Machine is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. To the metal, nonmetallic composite materials.

2. Structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: High-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.

3. Characteristics
It has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. To metal and non-metallic material in various laboratories.

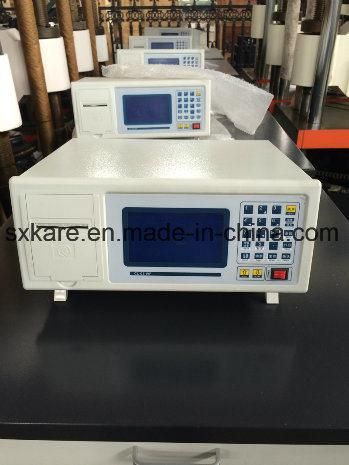

4. Electro-hydraulic measurement control cabinet
4.1 Internal micro-computer control panel, communicate with PC by RS232 series port.
4.2 Adopts famous brand import integrated component, such as BB, AD, Atmel, and so on, fully digitized design.
4.3 Adopts integrated high precision meter amplifier.
4.4 18 bits high accuracy analog-to-digital conversion.

Max. test force	600KN
Measuring range	4%-100%F.S.
Measuring relative error (no higher than)	±1%
Max. distance between tensile jaws	700mm

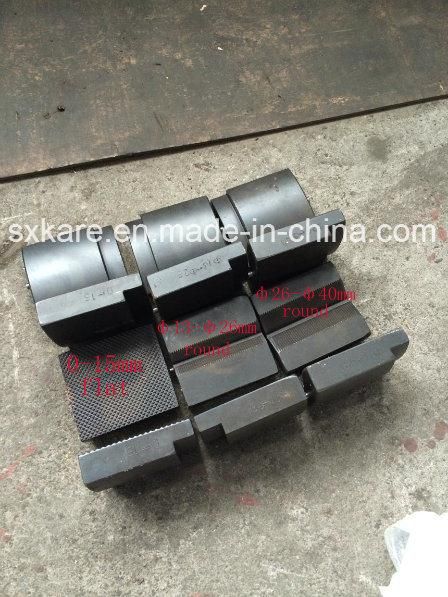

Width of flat plate specimen	≤70mm
Flat specimen holding thickness	0-30mm
Diameter of round specimen	13-40mm
Clip diameter of round specimen with shoulder	13, 18, 24mm
Specification to rib and ribbed round specimen	M16
Distance between bending support rollers	30-540mm
Size of shearing specimen	10mm
Tensile space between two columns	472mm
Compression space between two pole supports columns	472mm
Piston stroke	200mm
Oil pump motor power	2.2kW
Main frame dimension	820×540×2180mm
Oil source cabinet dimension	660×640×1030mm
