• Model NO.：WDS-30,50
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Delivery Time：7-25 Days After Payment
• Color：White,OEM
• Certifications：Ce and ISO
• Standard：ASTM, GB, ISO, DIN
• Transport Package：Standard Export Packing
• Specification：700*450*1775mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDS-30/50 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position None Delivery Time 7-25 Days After Payment Color White/OEM Certifications Ce and ISO Standard ASTM, GB, ISO, DIN Transport Package Standard Export Packing Specification 700*450*1775mm Trademark HST Origin China HS Code 9031809090 Production Capacity 200 Sets Per Month

Product Description

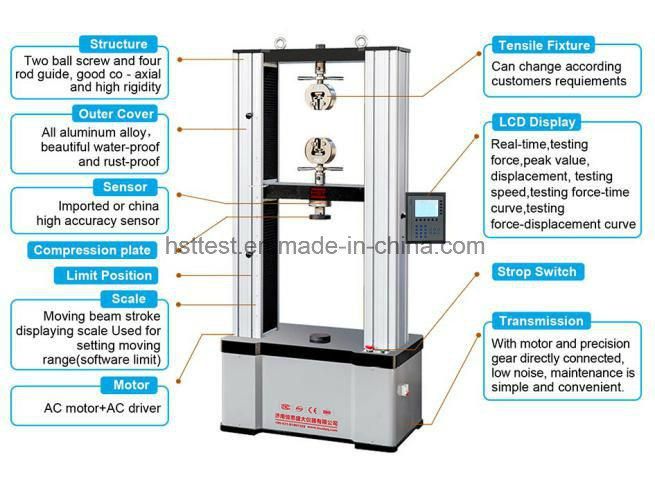

20/30KN Digital Display Desk Top Dual Column Electromechanical Test Machine
 1.Application:It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
 2.Standards:ASTM, ISO, DIN, GB and other international standards.
 3.Specifications:

Model	WDS-30/50
Max. Load(kN)	30/50
Structure	Four-column floor or desk model, (upper is compression and lower is tensile)
Cover	All aluminum alloy
Control method	Single chip control
Load accuracy	ISO 7500,Class1
Load range	2%~100%F·S
Displacement resolution	0.04um
Test speed(mm/min)	0.05-500
Tensile space(mm)	700(can be customized)
Compression space(mm)	700(can be customized)
Test width(mm)	500(can be customized)
Workbench thickness(mm)	58

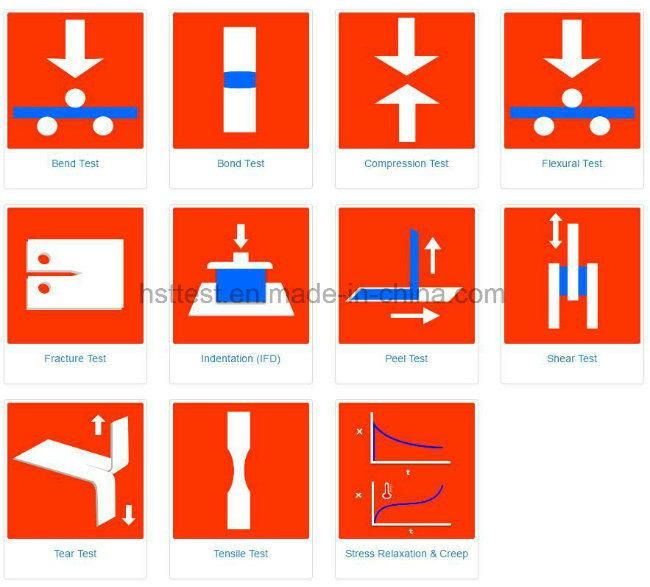

With different fixtures, this machine could attache different tests:
