• Model NO.：YG(B)812
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Touch Screen
• Control：Computer Control
• Weight：110kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Water Pressure Speed：1kpa,Min-100kpa,Min
• Pressure：Hydrostatic Head
• Solution：0.01PA
• Work Model：3 Types
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. YG(B)812 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Touch Screen Control Computer Control Weight 110kg Power Source AC220V Oil Cylinder Position Under Water Pressure Speed 1kpa/Min-100kpa/Min Pressure Hydrostatic Head Solution 0.01PA Work Model 3 Types Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

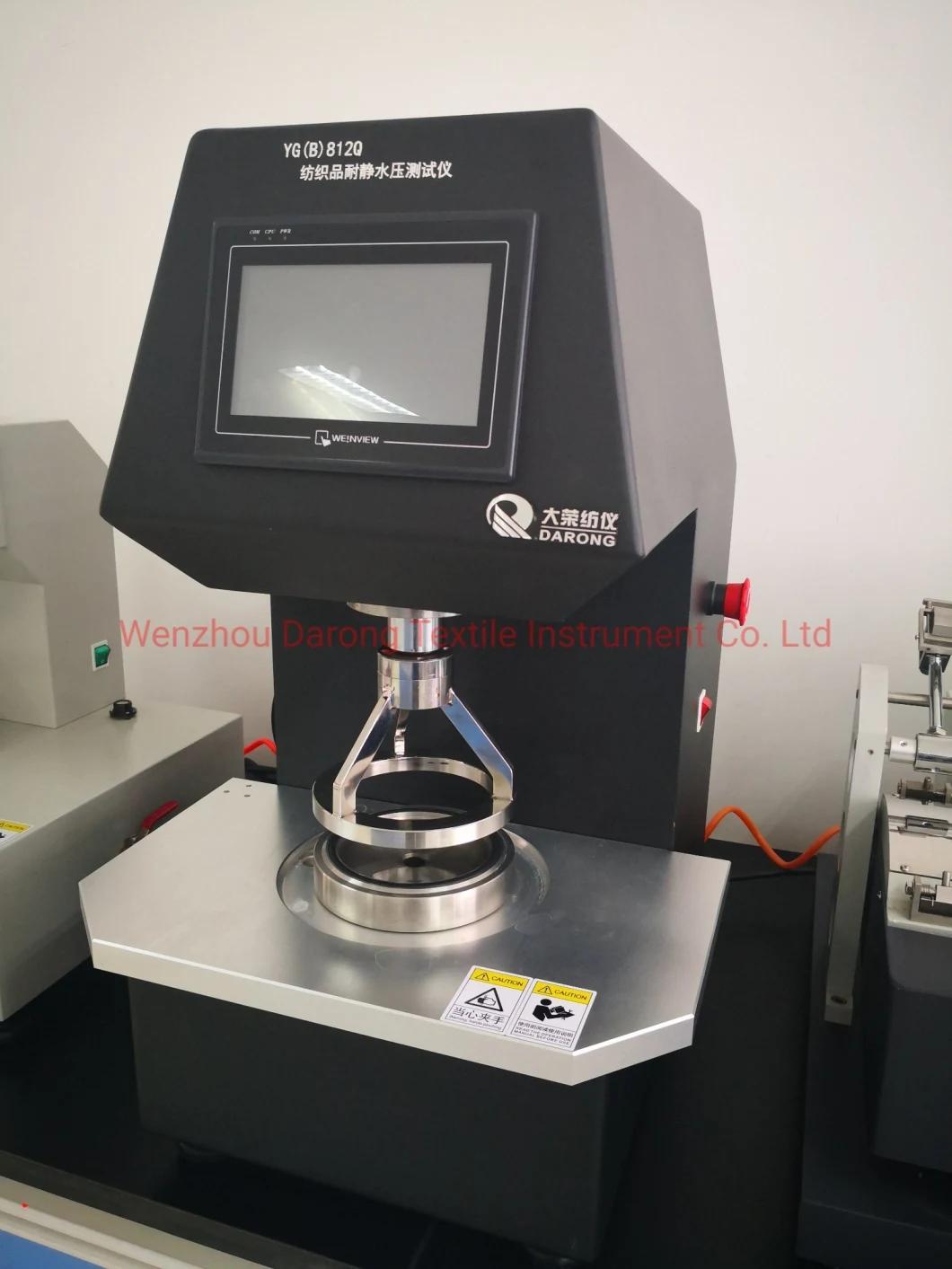

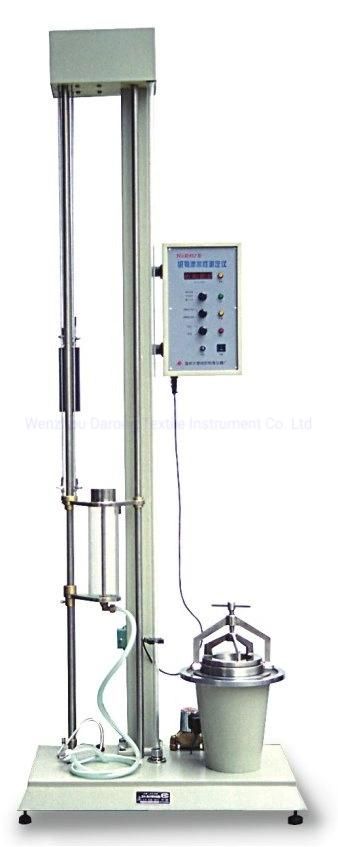

YG(B)812D Textile water permeability testing equipment
[Scope of application] Used for the determination of water seepage resistance of various waterproof treated fabrics (such as canvas, coated cloth, tent cloth, tarpaulin, rainproof clothing cloth and geosynthetic materials, etc.).

[Related standards] GB/ T4744FZ /T01004 AATCC127 DIN 53886 JISL1092
[ Technical parameters
1, test mode: hydrostatic pressure method, constant pressure method, water leakage method
2. Measurement range:

Model	-120	-200
Measuring range	100~1200mmH2O	100~2000mmH2O

3, sample chuck area: 100cm2
4, water tank rising speed: 100±5mm/min; 600 + / - 5 mm/min
5, accuracy error: ≤2.5mm
6, water tank capacity: 1000mL
7, power supply: AC220V± 10% 50Hz
