• Model NO.：HD-B609B-S
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Elongation Accuracy：0.001mm
• Screw：High Precise Ball Screw
• Delivery Time：15 Days After Receive The Deposit
• Load Cell：Celtron Sensor
• Load Resolution：1,250, 000
• Stroke：1000mm
• Test Speed：0.1 to 500 mm,Min
• Motor：Panasonic Servo Motor
• Control and Display：Computer
• Transport Package：Strong Wooden Case
• Specification：ASTM D903 GB,T16491 GB,T1040 GB,T8808 GB13022 GB,T
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

ItemsSpecificationSensorCeltron load cellCapacity10,20,50,100,200kgUnit SwitchoverG, KG, N, LBDisplay DevicePC and LCDResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1 ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Features of Rubber Material Tension and Compression Test Machine:

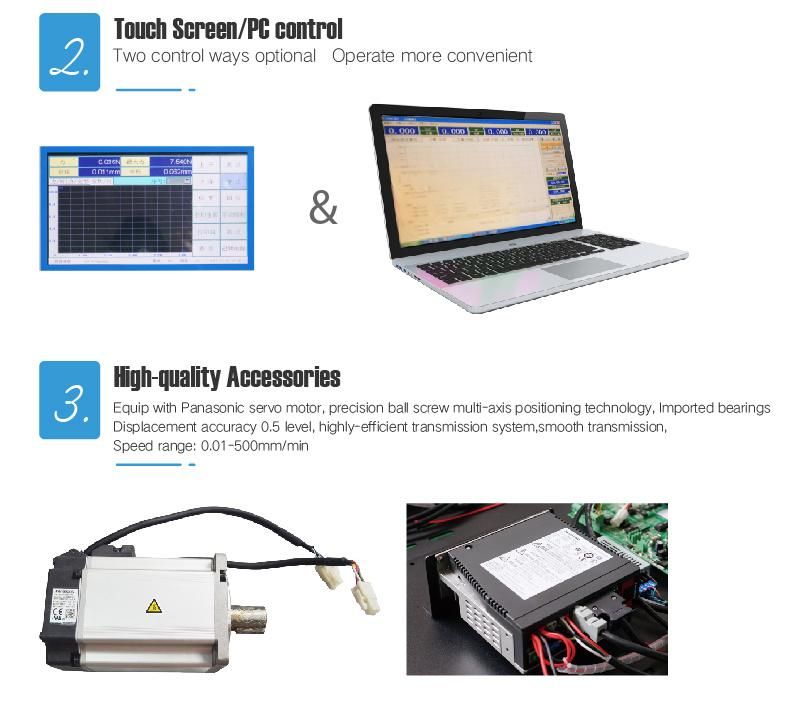

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).

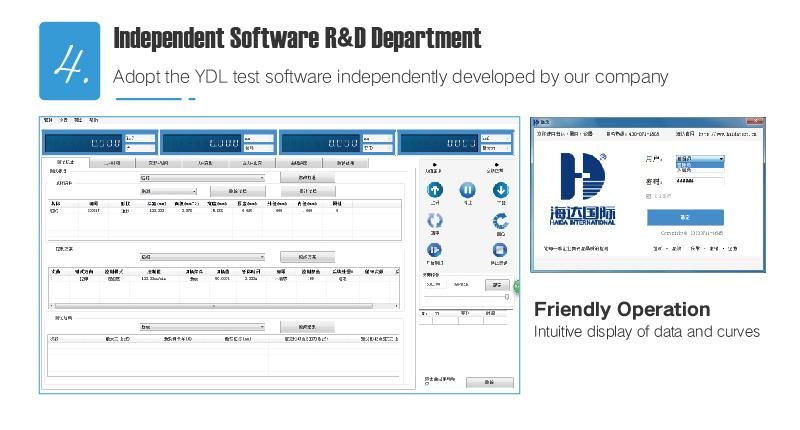

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.

3. Data transmission: RS232.

4. Displacement resolution: 0.001mm.

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
