• Model NO.：GD6100
• Control：Automatic
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Conditions：-5; C -40; C Rh <80%
• Power Supply：AC 220V +,-10%
• High Output：1000V ~ 2200V Every 200V
• Accuracy：2%
• Capacity：50va
• Output Current：25mA
• Temperature Induction Furnace：Maximum Power 1500W
• Cx measuring range：15PF-300PF
• Rx measuring range：10M-10Tohm
• Transport Package：Carton or Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030899090
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. GD6100 Control Automatic Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Conditions -5; C -40; C Rh <80% Power Supply AC 220V +/-10% High Output 1000V ~ 2200V Every 200V Accuracy 2% Capacity 50va Output Current 25mA Temperature Induction Furnace Maximum Power 1500W Cx measuring range 15PF-300PF Rx measuring range 10M-10Tohm Transport Package Carton or Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030899090 Production Capacity 2000PCS/Year

Product Description

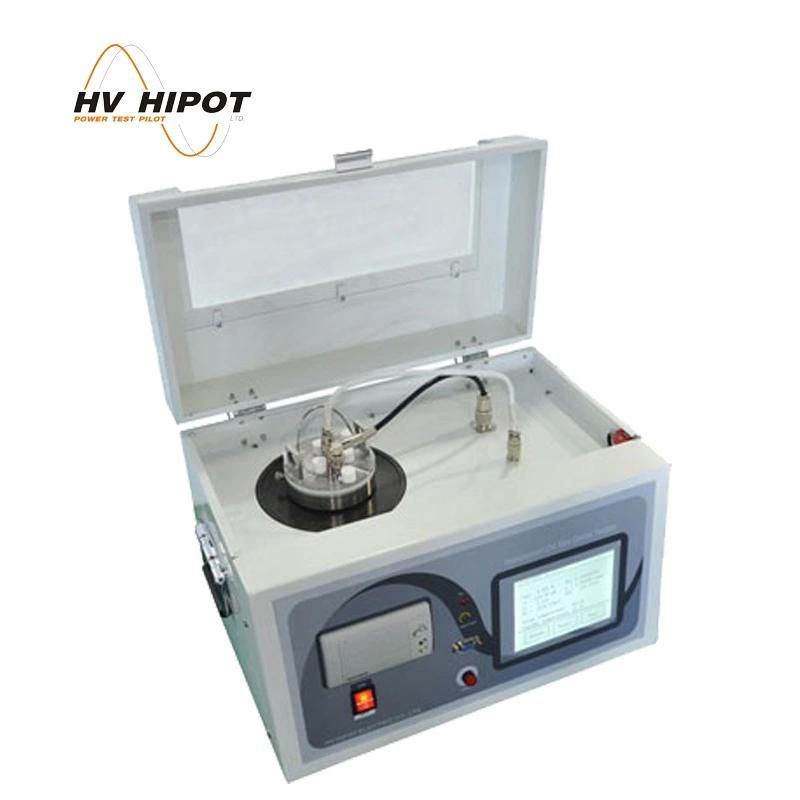

Oil Dissipation Factor Tan Delta Tester Dielectric Strength Tester GD6100






Product Description

GD6100 Automatic Precision Oil Dielectric Loss Testers is a high-precision instrument of testing dielectric loss angle of insulating oil and other liquid, integrated with main components of cup oil of dielectric loss, temperature controller, temperature sensor, dielectric loss test power Bridge, AC test power, standard capacitors.


Features

1. Advanced high-frequency induction heating mode, heat evenly, fast speed, easy to control.
2. All digital technology, automated measurement.
3. Large LCD display, full English menu, the results can be printed.


Technical Specifications


Conditions	-5°C -40°C, RH <80%
Power Supply	AC 220V +/-10%
High output	1000V ~ 2200V every 200V
Accuracy	2%
Capacity	50VA
Output Current	25mA
Temperature induction furnace	Maximum Power 1500W
Temperature control range:	<100degree
Temperature measurement error	+/-0.5degree
Temperature error	+/-1degree
Temperature time	Less than 20mins, at room temperature to 90degree
Measuring range	Tgδ Unlimited, Cx 15PF ~ 300PF
Accuracy	Tgδ : +/- (1.0% of the reading + 0.020%)
C x	+/-(1.0% of the reading+ 0.5PF)
Dimensions	450 (L)*310 (W)*360 (H)
Weight	18kg
