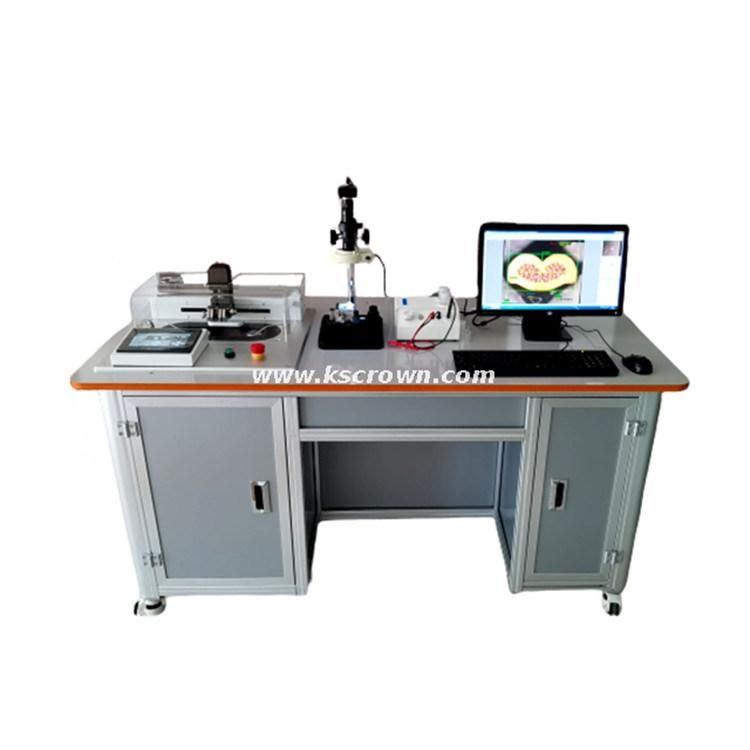

Terminal Cross Section Analysis System
Suzhou Crown Electronic Technology Co., Ltd.- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:1000kg
- Type:Terminal Cross Section Analyzer
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:WL-SE6
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control
- Weight:0-100Kg
- Power Source:AC220V
- Oil Cylinder Position:None
- Model:Wl-Se6
- Cutting Speed:0-2800 Rpm (Using German ABB Motor)
- Grinding Speed:0-2800 Rpm (Using German ABB Motor)
- Power Supply:220 VAC, 50Hz, 2300 W
- Dimensions:1700 mm (Length) X 800 mm (Width) X 850 mm (Height
- Transport Package:Wooden Case
- Specification:0.3cm3
- Trademark:Crown
- Origin:China, Jiangsu
- HS Code:9026209090
- Production Capacity:40-70 PCS,H
Description
Features:

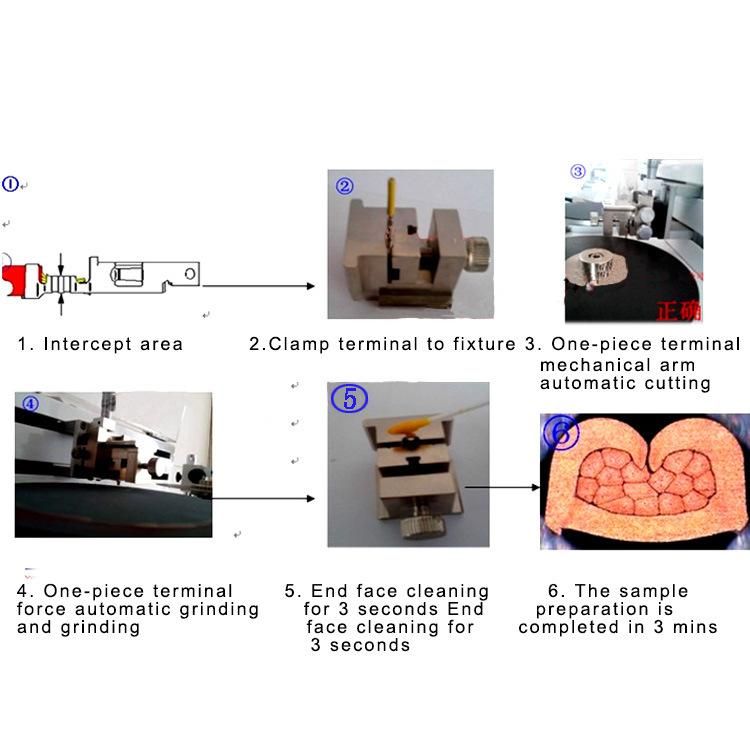

The automatic terminal cross-section analysis system is a precision inspection and analysis equipment specially developed for the quality inspection of the wiring harness industry. The complete system consists of automatic terminal cutting equipment, grinding equipment, corrosion cleaning section image acquisition system, wiring harness terminal picture measurement and analysis system and other units.
The complete inspection system can complete the processing and analysis of a terminal within 5 minutes, which greatly improves the speed of the quality inspection of the terminal section. Simple operation, high-quality image acquisition system, accurate measurement and analysis will escort your production. The high-performance microscope observation instrument and special software can measure the length and calculate the area simply and correctly.
Compact and easy to carry, simple and easy to operate
Fully automatic cutting module
High-speed grinding module with fine adjustment

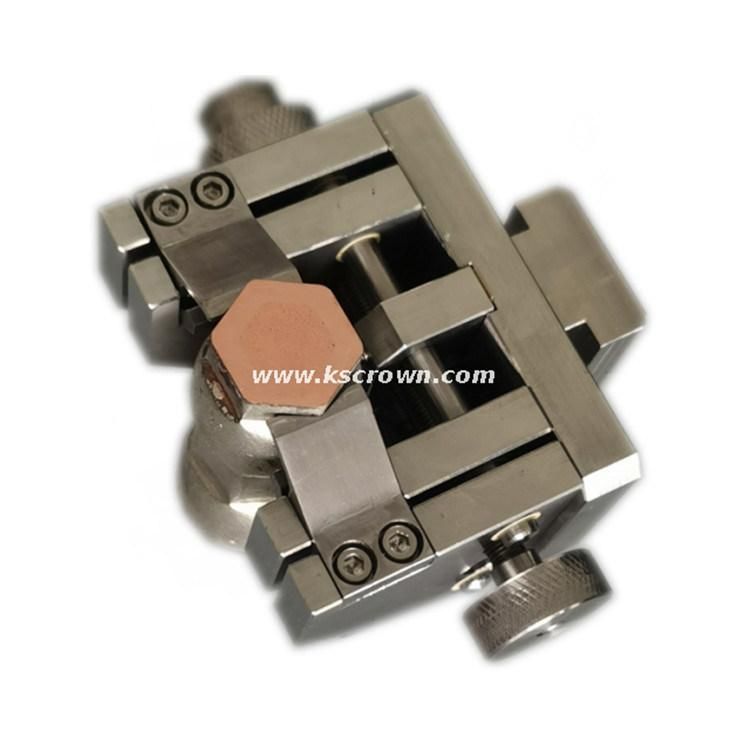

Optional electrolytic corrosion module humanized fixture holder
The design of the protective cover increases the safety of operation
High-quality and low-distortion optical instrument image capture module
Safety protection device for optical instruments, easy to transport
With super bright white LED light source, low heat
X Y Z axis measurement desktop with fine adjustment
High-precision correction ruler
5 million pixel camera USB 2.0
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden

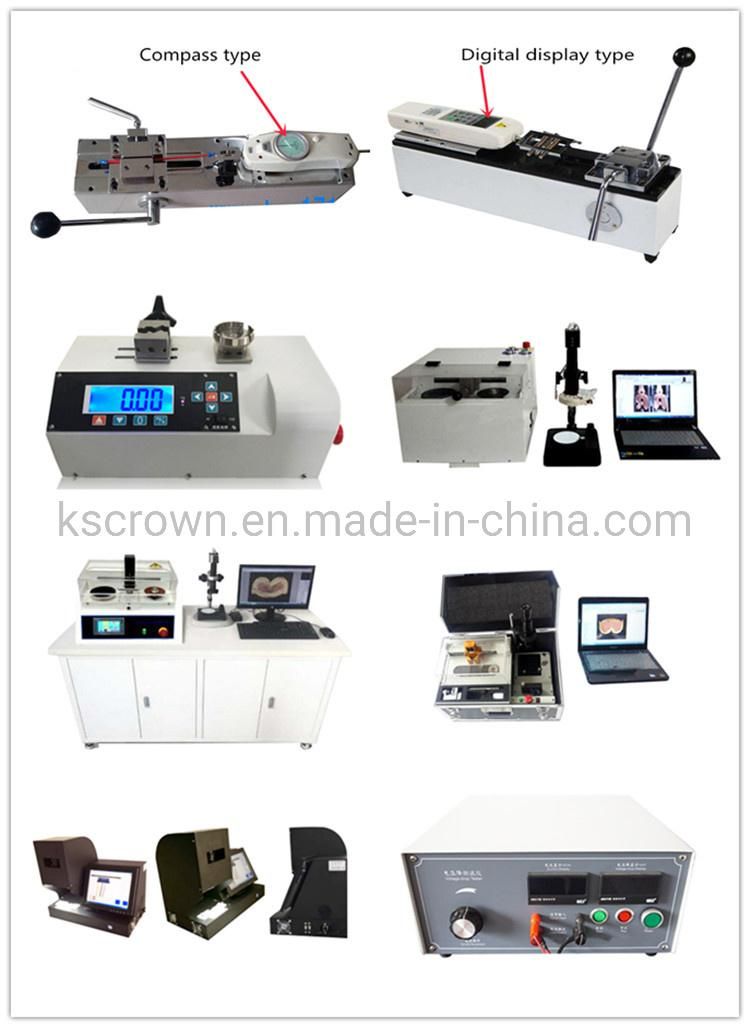

Product show:
Machine processing samples:
