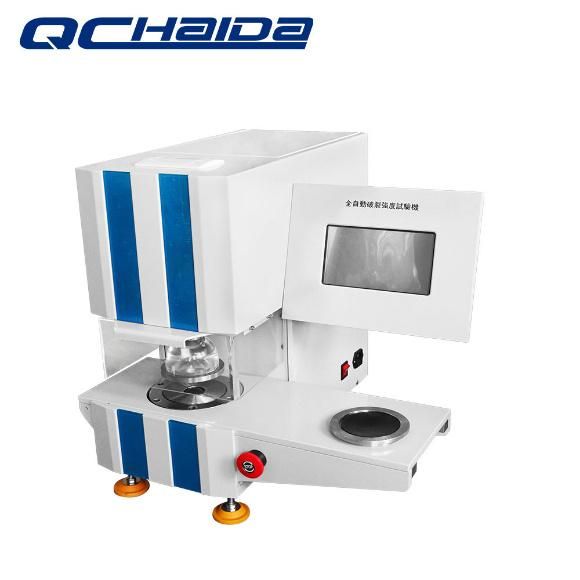

Touch Screen Control Automatic Burst Tester for Paper and Cardboard
Dongguan Haida Equipment Co., Ltd.- Warranty：1 Year
- Type：Strength Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：HD-A504-B
- Display：Digital
- Weight：0-100Kg
- Power Source：AC220V
- Operate Method：Full-Automatic
- Unit (Switchable)：Kpa, Psi, Kg,Cm2
- Accuracy：0.5%
- Control Mode：Touch Screen
- Sample Clamp Force：Automatic; 700~1200 Kpа
- Pressure Speed：95 Ml,Min
- Model：HD-A504-C
- Transport Package：Strong Plywood Case
- Specification：480× 400× 580 mm(L× W× H)
- Trademark：Haida
- Origin：Dongguan, China
- Production Capacity：150 Set Per Month
Description
DescriptionModel HD-A504-B Capacity 0~56 Kg/ cm2 (0.1kg/ cm2) Control mode Touch screen Unit Kpa, psi, kg/cm2 Sample clamp force Automatic,700~1200 KPа Load Resolution 1kPa Material SUS # 304 clamp ring Hydraulic oil 100% silicone oil Pressure speed 95 ml/min Size of clamp ring Upper Ring :30.5 ± 0.1 mm
Lower Ring: 33.5 ± 0.1mm Dimension (L×W×H) 480×400×580 mm Weight Approx. 70kg Power (can be appointed) 1∮, AC220± 10%, 50 Hz Accessories one piece low and high pressure rubber film, one piece wrench,
10 pieces low and high pressure correction sheet, one bottle silicon oil
The Advantages of Digital Paperboard Burst Strength Test Instrument:
The Parameters of Digital Paperboard Burst Strength Test Instrument:
The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
FAQ :
Q1:Your company is a trading company or a factory?
A1:We are direct factory, 17 years focused on physical, paper and package test equipment development, manufacturing, six years of export experience.
Q2:What about the quality of services and products?
A2:Before shipping and delivery of the goods, the quality of the product must be 100% for each inspection and test.
Products use training: each of our products provide video training, to show you how to install and operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS, GB and other standards.
Q3:How long the delivery time is?
A3:Generally about 15-25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
except for the special customization.
Lower Ring: 33.5 ± 0.1mm
10 pieces low and high pressure correction sheet, one bottle silicon oil
The Advantages of Digital Paperboard Burst Strength Test Instrument:
- Very fast testing cycle gives fast feedback to the production
- With automatic test gripinsteadmanualhold the sample.

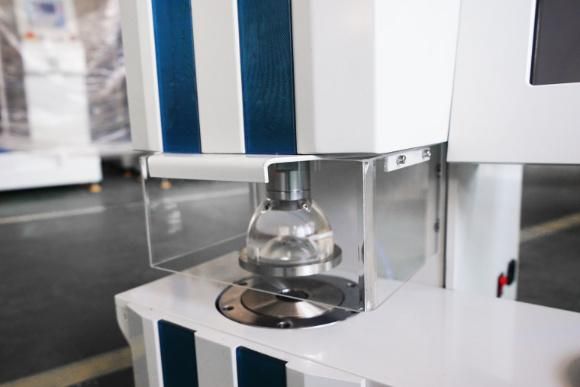

- Improvement of the operational safety regulations>>equipped a cover between plants to protect the operator's hand during testing
- Built-in LED light on the cover>>It is helpful to observe sample's condition during bursting process
The Parameters of Digital Paperboard Burst Strength Test Instrument:
The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
