• Model NO.：LU-LKD-255-RC
• Accuracy Grade：0.5
• Load Way：Hydraulic
• Loading Method：Air Compressor
• Display：Pressure Gauge
• Control：Manual Control
• Weight：0-100Kg
• Oil Cylinder Position：Top
• Drive Air Range：Compressed Air of 3-10 Bar
• Application：Fluid Pressurized and High Pressure Testing
• Material：Stainless Steel and Aluminum
• Working Medium：Oil ,Water and Corrosive Liquid
• Driven Piston Diameter：160mm
• Function：Pressure Can Be Controlled and Adjusted
• Pressure Source：Terek Air Driven Booster Pump
• Appearance：Stainless Steel Cabinet
• Transport Package：Wooden Package
• Specification：50KG
• Trademark：TEREK
• Origin：Jinan
• HS Code：8413501090
• Production Capacity：30000 Pieces,Year

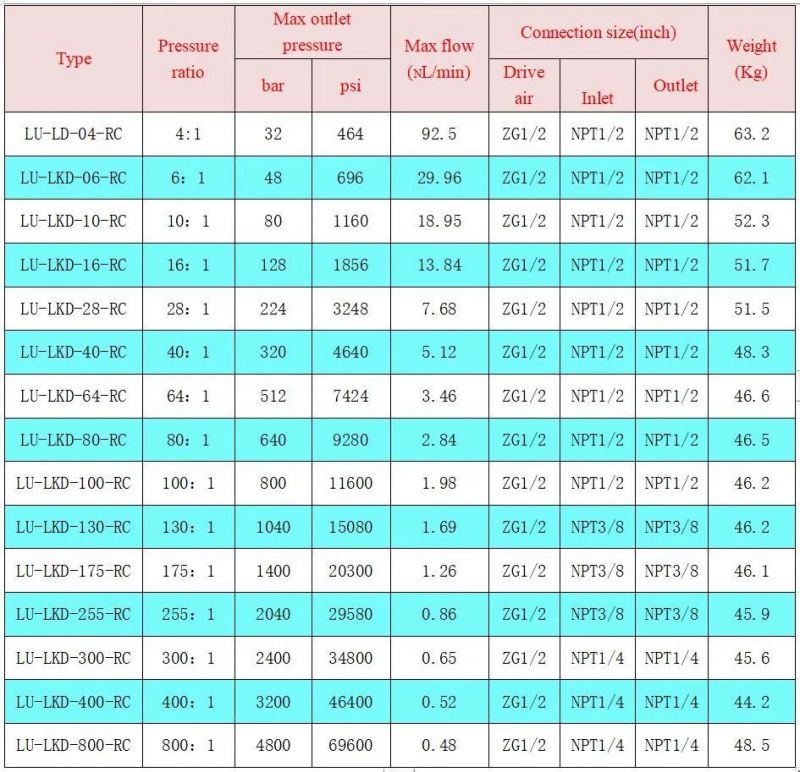

Product name

Pneumatic liquid booster pump hydrostatic test bench with chart recorder.

Model

LU-LKD-100-RC

Pressure ratio

100:1

Drive air source pressure

3-8bar.

Medium

Hydraulic oil or water

Maximum outlet pressure

800 bar

When adjusting drive pressure 5.0 bar

The high output pressure is 500 bar/7250psi

When adjusting drive pressure 6.2 bar

The high output pressure is 620 bar/8990psi

Power source

TEREK liquid booster pump

Outlet pressure Control unit

Drive air regulator valve

Pressure control accuracy

less than 1%F.S;

Pressure measurement accuracy

±0.4% FS pressure gauge

Frame type

304 Stainless steel

Valves and pipeline

High pressure needle valve and stainless steel tube

Round chart recorder

Record and print test data into round chart .

Test period

1hour / 4 hours /12hours/ 24 hours.

Pressure sensor range

100 MPA.

Recorder spare parts

100 paper chart,  Spare print record bar

Equipment Weight:

52KG

Package weight:

62kg

Equipment size:

660*520*630mm

Package size:

720*590*650mm

Connection thread size(inch)   High pressure Outlet

NPT1/4  Internal Thread

Production time

12-15 days.

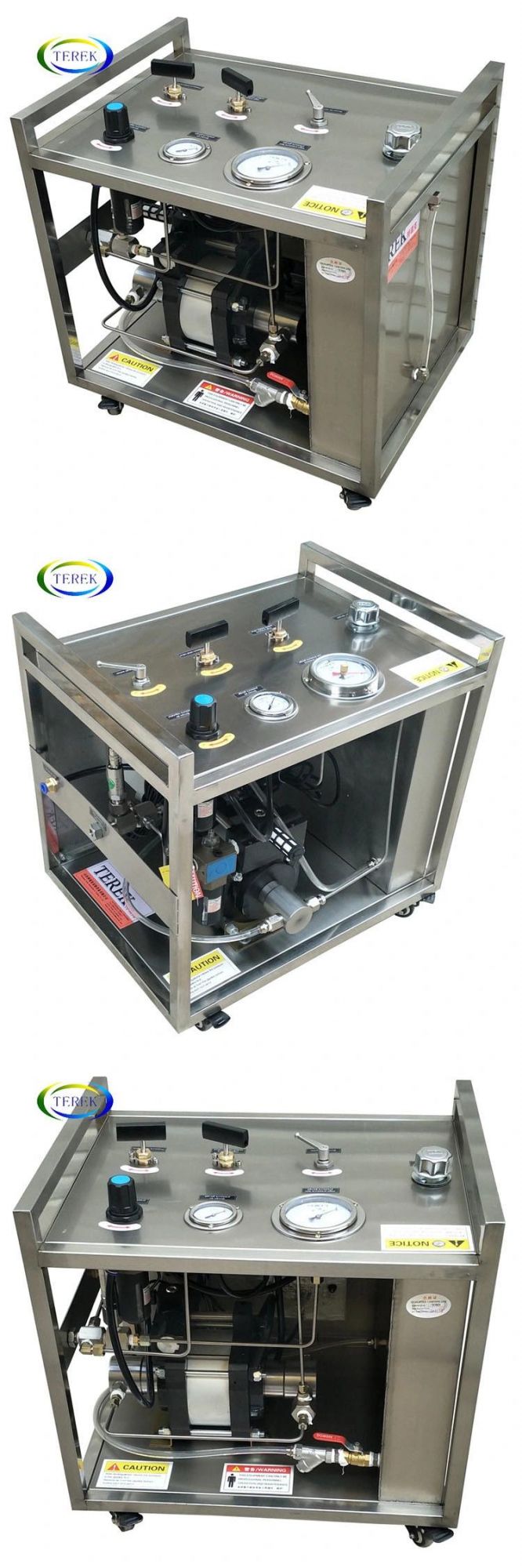

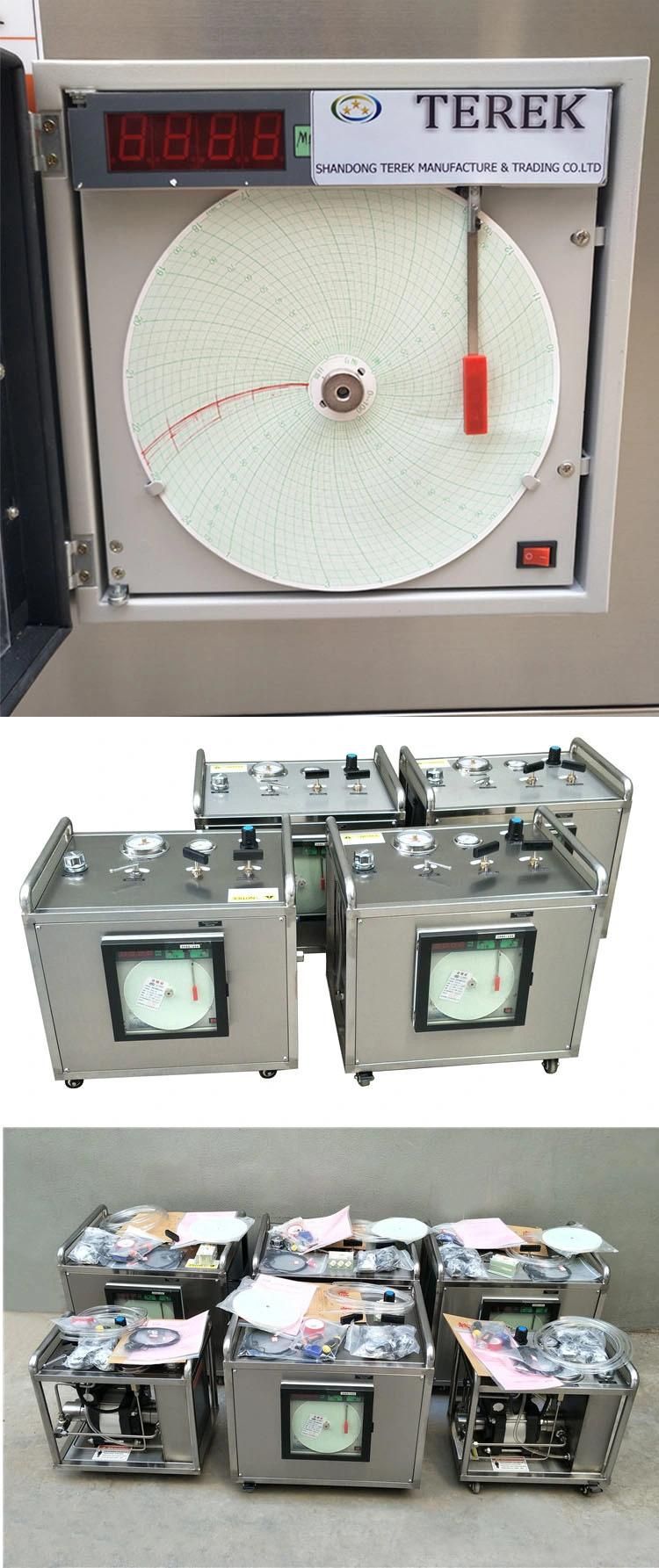

Detailed Images :


Product advantages :
1. Equipped with high quality pneumatic liquid booster pump, It can easily achieve any adjustable and controllable output pressure and flow.
2.The contact section is stainless steel, strong corrosion resistance, suitable for a variety of reagents;
3. It can be used at various levels of wellhead pressure, the pressure system has control function.
4.The output pressure can be adjusted through the pressure regulating valve, the system has to stop working under the set pressure;
5.Advanced technology, reasonable structure design. The features of small size, light weight, beautiful appearance;
6.By air/gas driven, no need to use electricity, there will be no spark generated, safe explosion-proof;

System configuration :
The liquid booster pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, High quality sealing parts, air drive piston, pressurizing piston, silencer etc. TEREK hydraulic test bench system mainly includes an air driven liquid booster pump, Round chart recorder, water tank ,pressure gauges, liquid filter ,air filter, air regulating valve,control valves,pipelines, cabinet , pressure release valve etc.

Our main products including Pneumatic Gas/Liquid Booster Pumps. Refrigerant booster pump and Air Amplifier. Fluid pressurized hydrostatic hydraulic pressure test equipment or high pressure Chemical fluid injection equipment. High pressure oxygen, hydrogen ,nitrogen, argon, Helium ,N2O,CO2 or other gas pressurized transfer refilling equipment or gas injection equipment. Pneumatic pump Glycerin Oil pressurized injection equipment. LPG / Propane and butane Pressurized transfer filling station equipment. Pipe/tube/valve/cylinder/Brake pipe, automobile pipe, aircraft hydraulic pipe ,pressure vessels Hydraulic Pressure Test Machine(Computer control or manual control or Intelligent digital display instrument) MCU Intelligent digital display instrument Pneumatic gas booster pump system leak test bench. Computer control /Intelligent instrument control Safety relief valve PSV test bench,Portable Safety valve test clamping table and test equipment. Online safety valve test instrument equipment.
