Cxnr-400b Plastic Material Melt Flow Rate Meter with The LCD Large Panel Control

Jinan Chenji International Trade Co., Ltd.
  • After-sales Service:Whole Life
  • Certification:TUV
  • Power:Electronic
  • Warranty:1 Year
  • Style:Desktop
  • Application:School, Lab

Base Info

  • Model NO.:CXNR-400B
  • Model No.:Cxnr-400b
  • Name:Plastic Material Melt Flow Rate Meter
  • Temperature Fluctuation:0.5
  • Temperature Range of Charging Barrel:Room Temperature-450 Degree
  • Displacement Measure Error:0.2mm,3mm
  • Charging Barrel Inside Diameter:9.550+-0.025mm
  • Plunger’s Length:6.350 +-0.100mm
  • Testing Load:0.325,1.2,2.16,3.8,5,10,12.5,21.6kg
  • Transport Package:Standard Package
  • Trademark:CHENJI or OEM
  • Origin:China Jinan or Others
  • Production Capacity:100 PCS , Month


Basic Info.

Model NO. CXNR-400B Model No. Cxnr-400b Name Plastic Material Melt Flow Rate Meter Temperature Fluctuation 0.5 Temperature Range of Charging Barrel Room Temperature-450 Degree Displacement Measure Error 0.2mm/3mm Charging Barrel Inside Diameter 9.550+-0.025mm Plunger’s Length 6.350 +-0.100mm Testing Load 0.325/1.2/2.16/3.8/5/10/12.5/21.6kg Transport Package Standard Package Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / Month

Product Description

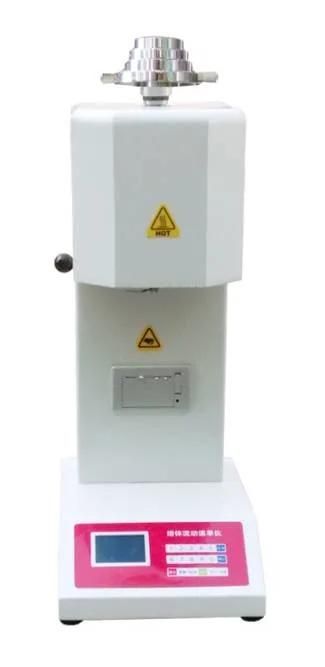

CXNR-400B Plastic Material Melt flow rate meter
with the LCD large Panel Control

Cxnr-400b Plastic Material Melt Flow Rate Meter with The LCD Large Panel Control
 Product Superiority

1. MFR test method
2. LCD large screen display
3. with a built-in printer
4. Cut-off the extrusion automatically
5. Easy to operate
1. Characteristics and Usage
   CXNR-400 Series Melt flow indexer is used to test melt flow index of all kinds of high polymer in viscosity flow. Under certain temperature and load, the melts quality and volume through standard neck ring mold is indicated with MFR . It is not only suitable for polycarbonate, polyarylester, Fluor plastic, nylon and other engineering plastics, but also suitable for polythene, polystyrene, polypropylene, ABS resin,  acetal resin and other lower fusion temperature plastics. It is widely applied to plastic production, plastic products, petrochemical industry and relative college, scientific research department and commodity inspection department.

2. Standards-compliant

2.1 ISO 1133 Plastics- Determination of the melt MFR and MVR of thermoplastics.
2.2 GB/T 3682-2000 Determination of the melt mass-flow rate (MFR) and the melt volume-flow rate (MVR) of thermoplastics

3. Technical Parameter:

3.1Temperature range of charging barrelRoom temperature~450ºC
3.2Temperature Fluctuation±0.5ºC
3.3Displacement measure error0.2mm/3mm
3.4Temperature show resolution ratio0.1ºC(100ºC below  0.01ºC)
3.5Charging barrel inside diameterΦ9.550±0.025mm
3.6Accuracy of oxygen adding nitrogen mixture pressure gauge indicated valueΦ9.475±0.015mm
3.7Plunger's length6.350±0.100mm
3.8Standard's mouth-modelΦ2.095±0.005mm
3.9Standard mouth-model height8.000±0.020mm
3.10Testing load0.325/1.2/2.16/3.8/5/10/12.5/21.6kg
