• Model NO.：HRT-01
• Connector：Luer Connector
• No. of Load Cell：1
• Trademark：Pubtester
• Origin：Shandong, China

Basic Info.

Model NO. HRT-01 Connector Luer Connector No. of Load Cell 1 Trademark Pubtester Origin Shandong, China

Product Description

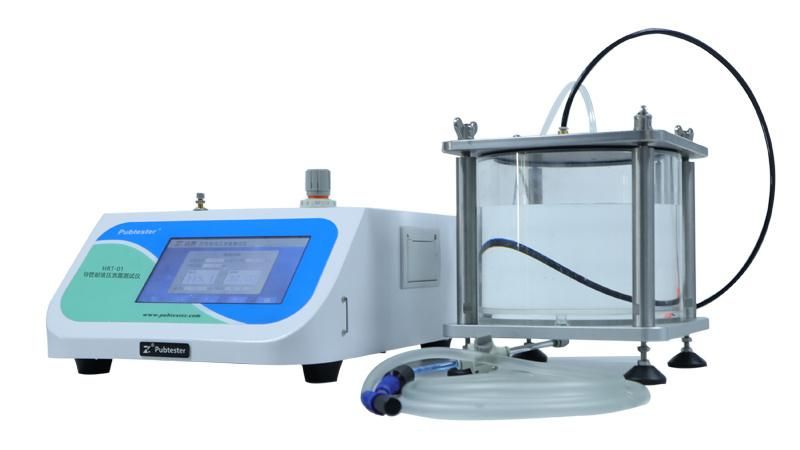

HRT-01 EN1618 Catheters other than intravasular catheters liquid leakage test machine
HRT-01 EN1618 Catheters other than intravasular catheters liquid leakage test machine is used to determine the hydraulic pressure leak performance of various non-intravascular catheters.


Technical Features

• Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience

• 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience
• Equipped with a liquid storage buffer tank to stabilize pressure and provide a hydraulic environment
• With luer connection, can test a variety of catheters
• Support burst, creep, and pressure maintaining and other test modes

• With automatic data storage, power-off automatic memory function, which ensures system stability

• The machine detects the pressure change every 0.1s, maintains the set pressure automatically, effectively controls the pressure fluctuation within the qualified range

• Equipped with standard RS232 interface, which is convenient to PC connection and data transmission

Originality Design

• Standard, modularized and systematic designs can meet personalized requirements of the users.
• Adopts high-precision electronic flow controller to realize precise control of gas flow
• Pressure and time can be preset, input the value directly to enter the test mode
• With a powerful data storage function, storing up to 50,000 test records
• The result is determined automatically, the test data can be printed

Technical Specifications

Specifications	HRT-01
Test Range	0 ~ 600kPa
Test Accuracy	0.1% FS
Liquid Storage Tank	Acrylic
Connector	Luer connector
No. of Load Cell	1
Instrument Dimension	310mm(L)×370mm(W)×150mm(H)
Power Supply	AC 220V 50Hz/ AC 110V 60Hz
Net Weight	30Kg

Standards  GB 15812

Configuration
Standard configuration: Instrument, micro printer, touch screen, liquid storage tank

Note: 1.The gas supply port of the instrument is Φ8 mm PU Tubing;

1. Customers will need to prepare for gas supply.

About Us

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.


FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
