• Model NO.：GDZRS-20A
• Power Source：AC 85V-265V
• Weight：〉10Kg
• Installation：Portable Precise
• Customized：Non-Customized
• Single Phase：1A 5A 10A 20A 40A
• Three Phase：1A 5A 10A 20A
• Accurancy：± 0.2%(Full Range)
• Data Saving Capacity：150 Group
• Power Supply：AC 220V 50Hz
• Working Environment：0-40degree Relative
• Relative humidity：: ≤80%
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030332000
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. GDZRS-20A Power Source AC 85V-265V Weight 〉10Kg Installation Portable Precise Customized Non-Customized Single Phase 1A 5A 10A 20A 40A Three Phase 1A 5A 10A 20A Accurancy ± 0.2%(Full Range) Data Saving Capacity 150 Group Power Supply AC 220V 50Hz Working Environment 0-40degree Relative Relative humidity : ≤80% Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030332000 Production Capacity 2000PCS/Year

Product Description

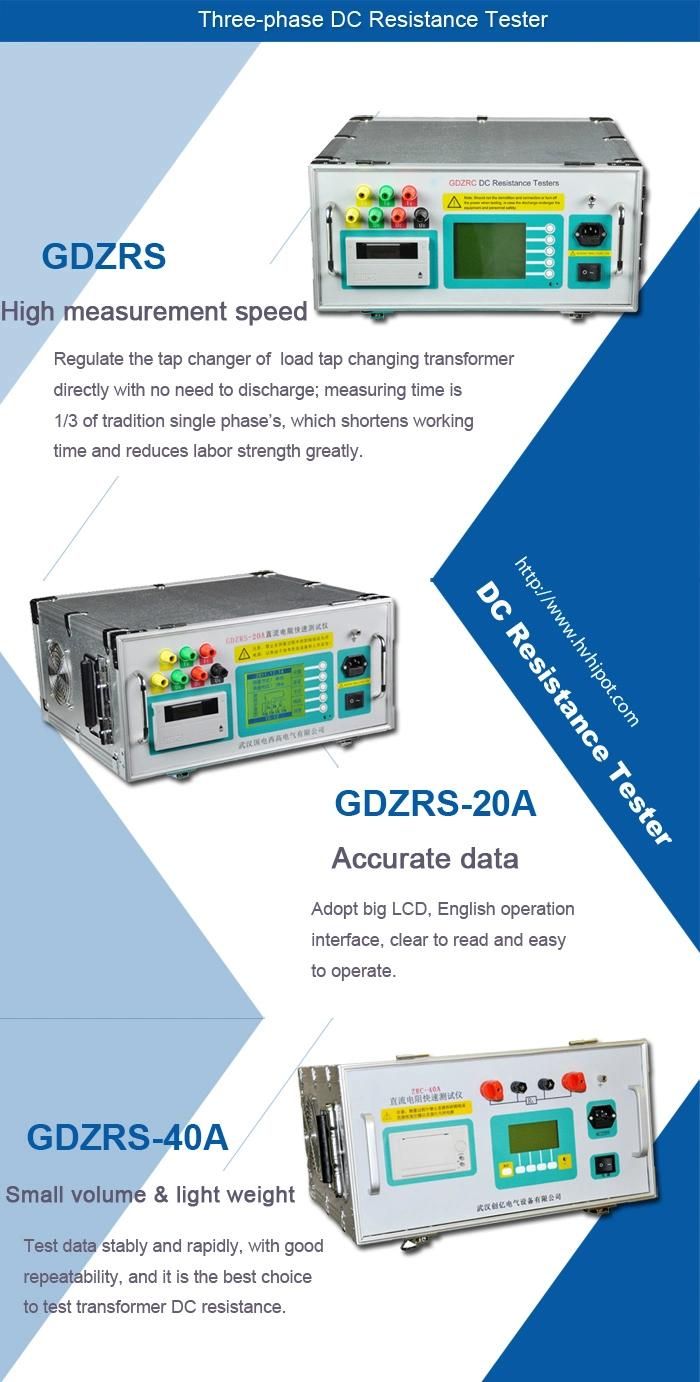

GDZRS Series Portable Inductive Devices DC Winding Resistance Test Set



General introduction

GDZRS series Winding DC resistance tester is optimal designed for measuring three phase winding DC resistance of big capacity transformer. It can test three phase winding DC resistances at the same time.


Features

1. For on-load variable transformer, no need to discharge, just adjust tap switch directly.
2. The measurement time is 1/3 of tradition single phase measurement, that working time and labor intensity is shorten.
3. Big screen LCD display, clear and visual, easy operation.
4. Built-in panel printer and big capacity memory, easy to get printing result and convenient to storage data.
5. Stable data, fast testing and good repeatability, suitable for transformer DC resistance on-site measurement.


Specifications
