• Model NO.：GD-11132
• Illuminating Lamp：1220mm in Length, Power Is 40W
• Air Supply：Nitrogen Cylinder (or Air Compressor)
• Ambient Temperature：(5~35)ºC
• Dimension：350mm*400mm*1770mm
• Maximum Power Consumption：600W
• Transport Package：Wooden Case for Petroleum Products Hydrocarbon Tes
• Specification：350mm*400mm*1770mm
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-11132 Illuminating Lamp 1220mm in Length, Power Is 40W Air Supply Nitrogen Cylinder (or Air Compressor) Ambient Temperature (5~35)ºC Dimension 350mm*400mm*1770mm Maximum Power Consumption 600W Transport Package Wooden Case for Petroleum Products Hydrocarbon Tes Specification 350mm*400mm*1770mm Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

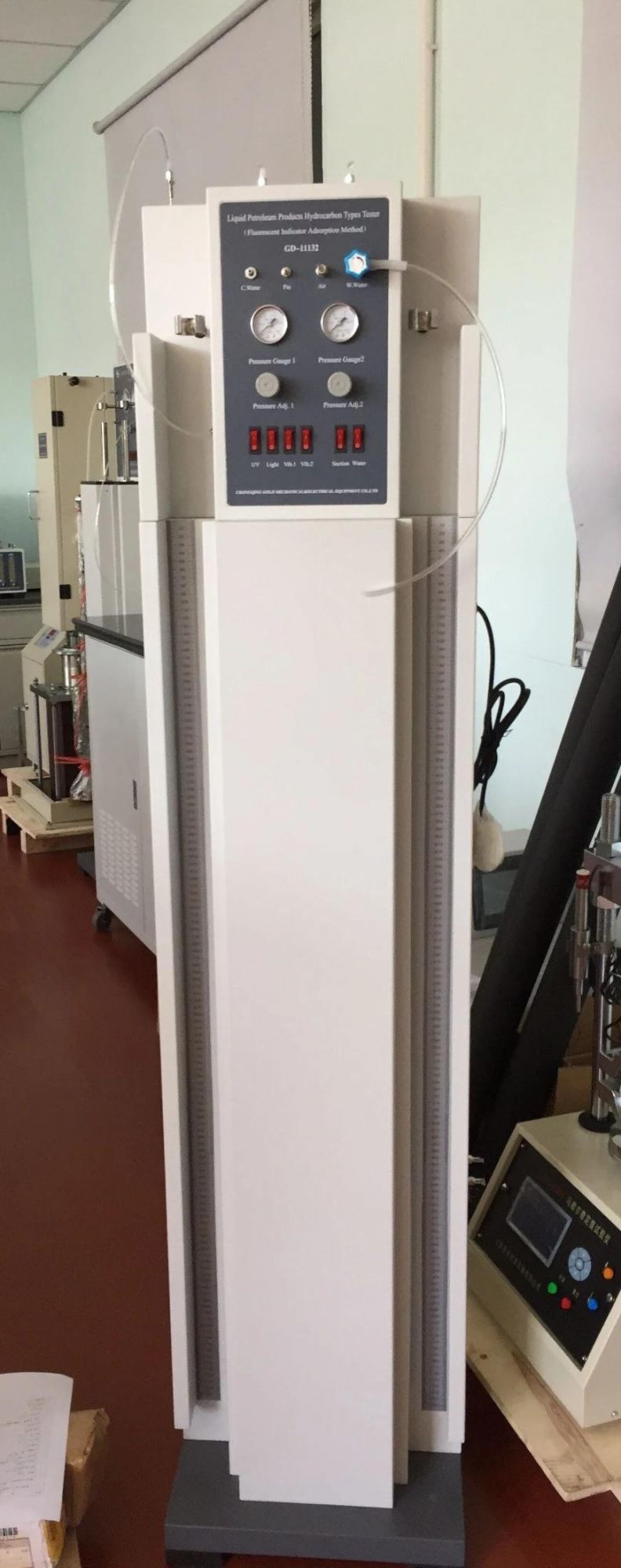

ASTM D1319 Liquid Petroleum Products Hydrocarbon Tester by Fluorescent Indicator Adsorption Method



Liquid petroleum products hydrocarbon tester  is a kind of professional instrument determining percentage of aromatic hydrºCarbon, olefin and saturated hydrocarbon in petroleum fraction.

Liquid petroleum products hydrocarbon tester is designed and made as per national standard of People's Republic of China GB/T 11132 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption and ASTM D1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption.

Liquid petroleum products hydrocarbon tester  is suitable to make the main hydrocarbon of liquid petroleum products shown on the silica gel adsorption column with fluorescent indicator. Then calculate it's volume percentage. This will be regarded as the quality measurement index of engine fuel, aviation fuel and other fuel oils.



Features:
1. Vertical type and unit-body design. No need to install.
2. This instrument is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
3. Two pieces of imported precise glass tube adsorption column. It is convenient to operation.
4. Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.


Specifications:

Product name	GD-11132 Liquid Petroleum Products Hydrocarbon Tester / Hydrocarbon Analyzer
Power supply	AC220V±5%,50Hz
Pressure regulating range of reducing valve	(0~400)kPa
Electric agitator	Independently controlled for each way
Ultraviolet light source pipe	1220mm in length,wavelength is 365mm±5nm
Illuminating lamp	1220mm in length,power is 40W
Air supply	Nitrogen cylinder (or air compressor,compressed air bottle)
Ambient temperature	(5~35)ºC
Relative humidity	≤85%
Dimension	350mm*400mm*1770mm
Maximum power consumption	600W
