Impact Testing Machine (JB-300/500 (B)) / Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)

Jinan Hiwoc Group Co., Ltd.
  • Mass Scope of Workpiece：Could Bd Customized
  • Type：Universal Testing Machine

Base Info

  • Model NO.：JB-300,500B
  • Maxcapacity：<500j
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：Customzied
  • Oil Cylinder Position：None
  • Test Machine Level：1 or 0.5
  • Operation Mode：Microcomputer Control or Digital or Manuel
  • Impact Speed：5.2m,S
  • Pendulum Pre-Angle：150°
  • Sample Holder Span：40mm
  • Bearing Jaw Fillet：R1.0~1.5mm
  • Impact Blade Fillet：R2.0~2.5mm
  • Standard Sample Size：10X10X55mm
  • OEM：Support
  • Certificate：Ce,ISO
  • Transport Package：Plywood Case
  • Specification：2124x600x1340mm
  • Trademark：Hiwoc
  • Origin：China
  • Production Capacity：50000sets,Year

Description

Basic Info.

Model NO. JB-300/500B Maxcapacity <500j Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source Customzied Oil Cylinder Position None Test Machine Level 1 or 0.5 Operation Mode Microcomputer Control or Digital or Manuel Impact Speed 5.2m/S Pendulum Pre-Angle 150° Sample Holder Span 40mm Bearing Jaw Fillet R1.0~1.5mm Impact Blade Fillet R2.0~2.5mm Standard Sample Size 10X10X55mm OEM Support Certificate Ce/ISO Transport Package Plywood Case Specification 2124x600x1340mm Trademark Hiwoc Origin China Production Capacity 50000sets/Year

Product Description

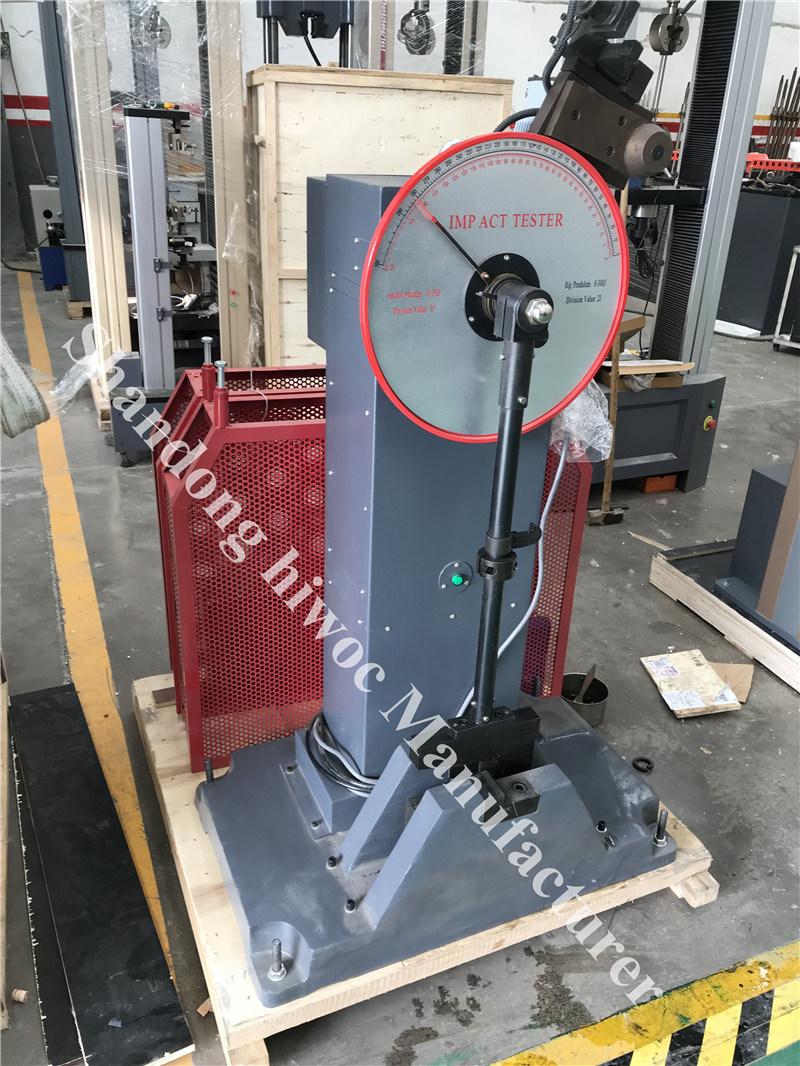

JB series impact testing machine
JB-300B
Semi-automatic impact testing machine
The main functions
JB-300B semi-automatic impact testing machine is used to test the performance of metal materials under dynamic load. The machine uses the residual energy after impacting the sample to automatically swing, easy to operate, high work efficiency, safe and reliable, suitable for all kinds of laboratories for impact testing in metallurgy, machinery, aerospace, quality supervision and other industries have been widely used.
The main technical parameters
Impact energy330J (large hammer) 150J (small hammer)
Impact speed5.2m/s
Pendulum pre-angle150°
Sample holder span40mm
Bearing jaw filletR1.0~1.5mm
Impact blade filletR2.0~2.5mm
Distance from the center of the pendulum to the impact point 7750mm
Standard sample size10x10x55mm
Power3 phases 50HZ 380V 180W
Dimensions2124x600x1340mm
Angle accuracy±0.1°
Weight450KG

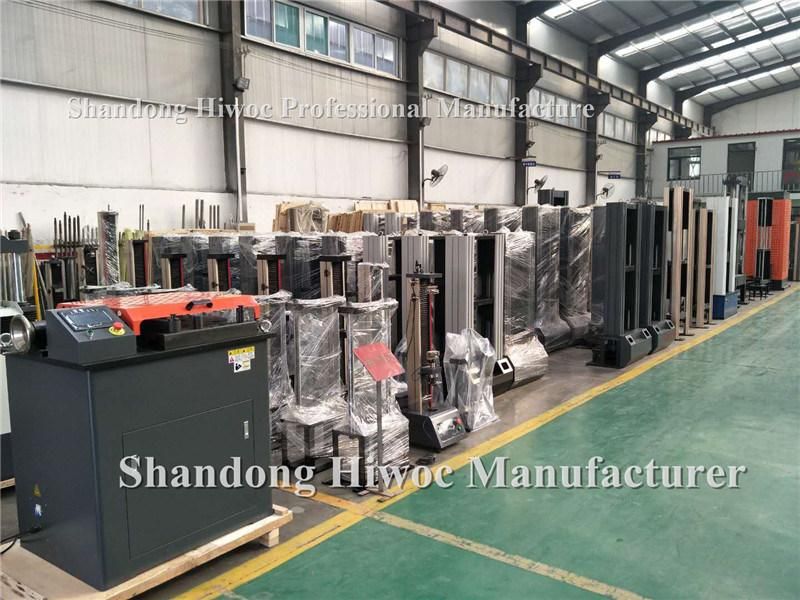

Welcome to our factory to inspect!!
