• Model NO.：WDS-10
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Cases
• Specification：100KN
• Trademark：C-TECH
• Origin：China Mainland
• HS Code：90248000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. WDS-10 Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Wooden Cases Specification 100KN Trademark C-TECH Origin China Mainland HS Code 90248000 Production Capacity 500 Sets/Month

Product Description

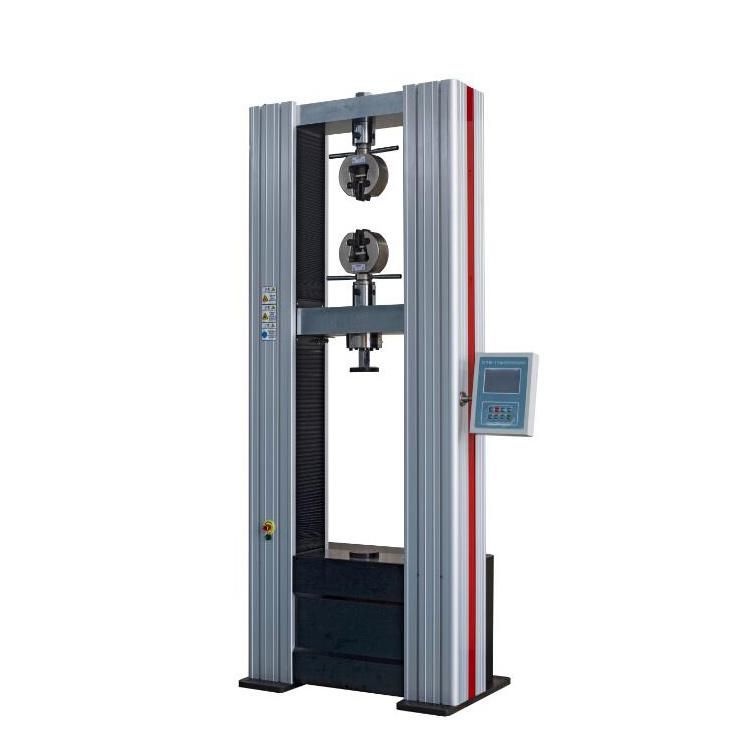

WDS-10 Gate Structure Digital Tensile Tester

WDS-10 Microcomputer-controlled electronic universal testing machine is mainly used for testing mechanical properties of various metals, non-metals and composite materials such as tensile, compression, bending, shear, stripping, tearing, etc. The system adopts microcomputer closed-loop control, which can realize constant velocity displacement, constant velocity stress, constant velocity strain and can be programmed. The design of the test machine has the characteristics of beautiful appearance, convenient operation, stable and reliable performance, no pollution, low noise, and high efficiency. The design of the auxiliary equipment is matched with the main machine. The structure is wedge-type translational and manual rotary clamping. The specimen is not subject to additional force. Convenient, reliable and non - slip clamping.

The working environment should be free from vibration and dust. At room temperature (15-25); Humidity < 70%; Surrounding no vibration, no corrosive medium, no strong magnetic field interference; Power supply voltage fluctuation not exceeding 10% of rated voltage.




Technical Parameters

Max Load(KN)	100
Accuracy	Grade 1
Testing Range	0.2%~100%F.S(Max Load)
Measuring Accuracy	Better than ±0.5% of the Indicator
Resolution of Effort	1/300000 of the Full Scale
Displacement Accuracy	±0.5%
Displacement Resolution	0.04μm
Displacement Error	Within ±0.5% of Indicator
Deformation Resolution	0.001mm
Power Supply	220v/50hz/1phase
Deformation Relative Error	Within ±0.5%
Extensometer Range	10~800mm(if Configured the Extensometer )
Extensometer Relative Error	Within ±0.5% of the Indicator (if Configured the Extensometer )
Extensometer Resolution	0.008mm (if Configured the Extensometer )
Size	560*380*1600mm(Can be Customized)
Net Weight	about 320Kg
