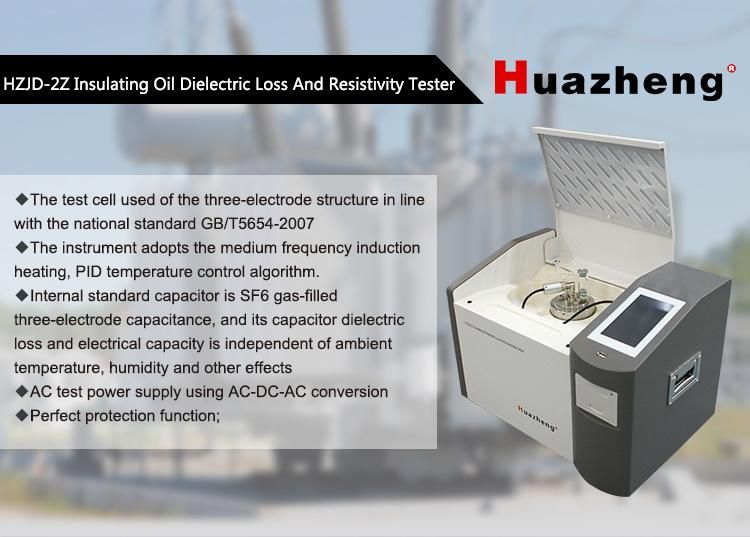

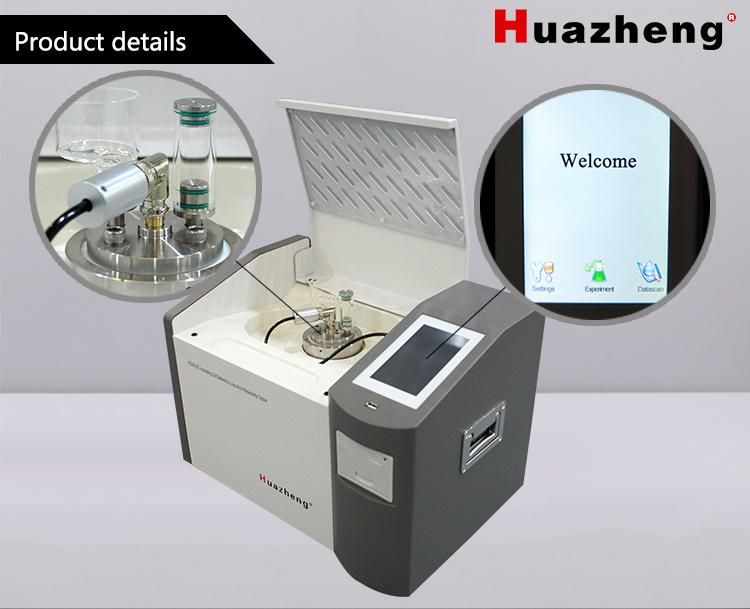

Automatic Cleaning Insulation Oil Resistivity Dielectric Loss Tan Delta Tester
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Type：Strength Testing Machine
- Maxcapacity：100kv
- Accuracy Grade：0.5
- Load Way：Mechanical Load
Base Info
- Model NO.：HZJD-2Z
- Loading Method：Static Load
- Display：Digital
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Top
- Voltage Supply：AC 220V±10%
- Power Frequency：50Hz,60Hz ±1%
- Electric Capacity Range：5PF~200PF
- Relative Permittivity Range：1.000~30.000
- Test Voltage AC(RMS)：500~2200V Continuous
- Accurancy：0.001%
- Test Voltage AC(RMS：500~2200V
- Test Voltage DC：0~500V Continuously
- Power Consumption：100W
- Aftersales Service：Yes
- Transport Package：Wooden Box with Foam Inside
- Specification：CE,ISO,IEC
- Trademark：HuaZheng
- Origin：Hebei, China
- HS Code：9030332000
- Production Capacity：100 PCS,Month
Description
22kg
V.Company Information

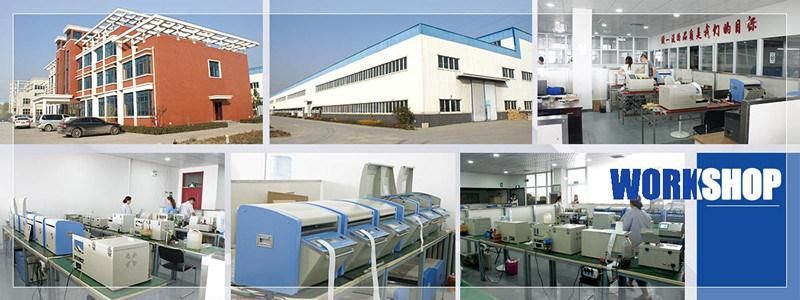

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

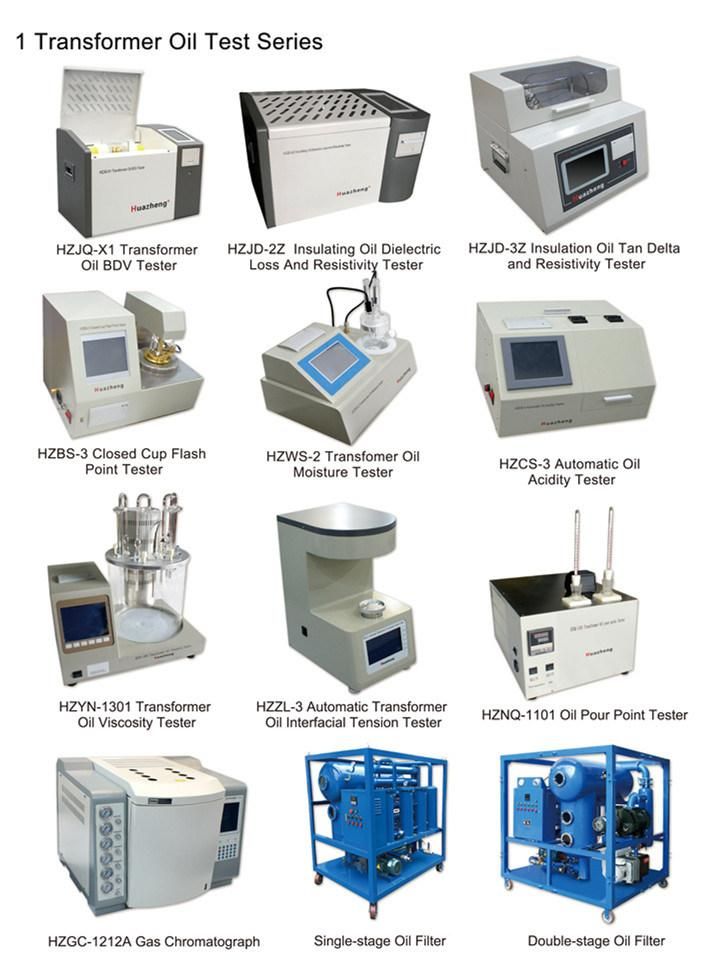

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
