Gauss Meter Digital Gauss Meter Mt-200da Digital Gauss Meter Tesla Meter

Guangzhou Amittari Instruments Co., Ltd.
  • Display：Digital
  • Transport Package：Carrying Case for Digital Gauss Meter, Tesla Mete

Base Info

  • Model NO.：MT-200DA
  • Production Capacity：10000PCS,Year

Description

Measuring range0~200mT~2000mTFrequency range10Hz~200Hz

The accuracy of

0~100mT 2%, above 100mT 5% (measured in a uniform magnetic field)

Resolution

DC×1:0.00~200.00mT 0.01mT DC×10:0.0~2000.00mT 0.1mT AC×1:0.00~200.00mT 0.01mT AC×10:0.0~2000.00mT 0.1mTMagnetic field under test

Dc magnetic field (static magnetic field)



Ac magnetic field (dynamic magnetic field)

Functional specifications

Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely

Dc polarity of measurement

N for positive, S for negative

Operating Conditions5ºC~40ºCRelative humidity

20%~80%(There is no dew)

Power supplyFour no. 5 batteries can be externally connected to a 5V stabilized voltage supplyOverall dimensions140mm (L) X73mm (W) X 30mm (H)

Instrument weight

180g

Display mode

41/2LCDAccording to the unitmT/Gs










































Product Accessories





Standard Accessories

Main engine (one)

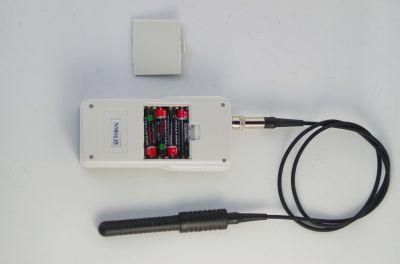

 Hall sensor (one)

Operating Instructions (one copy)









Buying Guide



When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
