Crankshaft Flywheel Automatic Balancing Machine

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
  • Warranty：1 Year
  • Transport Package：Standard Export Wooden Box

Base Info

  • Model NO.：A1WZ1
  • Specification：ISO. CE. SGS CNAS
  • Trademark：JP
  • Origin：Shanghai China
  • HS Code：903110009
  • Production Capacity：100 Sets,Month
  • Package size per unit product：220.00cm * 140.00cm * 230.00cm
  • Gross weight per unit product：1800.000kg

Description

technical parameter

A1LZ1-5A1LZ1-35A1LZ1-150  Workpiece weight(kg)5kg35kg150kgWorkpiece outer diameter(mm)40~400mm100~400mm200~600mm                Balance speed(r/min)·········

Balance motor power

0.75kw1.5kw7.5kwAchievable residual unbalance(e mar)·········total machine power7.5kw8kw15kwMaximum rotor thickness150mm150mm200mmmeasure time8~128~1215~20Imbalance reduction rate≥95%≥95%≥95%working pressure0.4-0.6MPa0.4-0.6MPa0.4-0.6MPaOperating VoltageAC:380VAC:380VAC:380VDrilling motor power0.75kw0.75kw1.5kw

Features:

1. Touch screen operating system

2. Advanced balance measurement software technology

3. Automatic measurement, automatic drilling correction, automatic re-measurement

4. Steel structure design, long service life

5. The workpiece can be deduplicated and corrected more than twice

6. Manual loading and unloading
7. Fast production Beats
8. Higher production efficiency

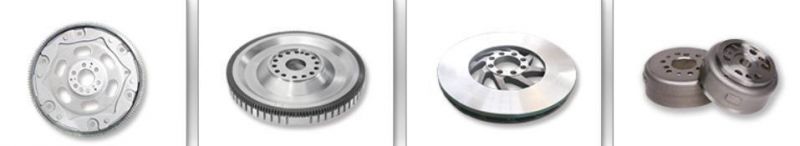

Application:

Crankshaft Flywheel Automatic Balancing Machine
