• Model NO.：PHW-5000
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：5000kg
• Power Source：AC380V
• Length：2200mm
• Width：850mm
• Height：1500mm
• Gross Weight：800kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHW-5000 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 5000kg Power Source AC380V Length 2200mm Width 850mm Height 1500mm Gross Weight 800kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

Product Description

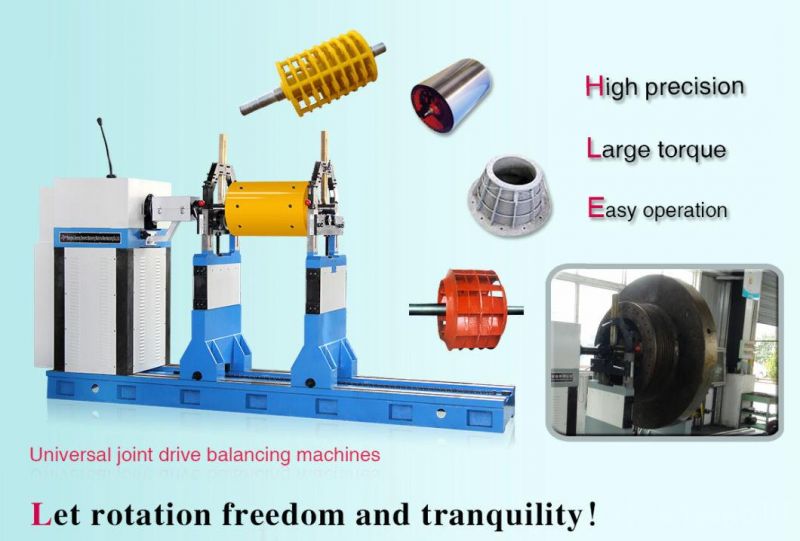

Universal End-Drive Balancing Machine(PHW-5000)

Technical Parameters

Technical data at a glance	PHW-5000
Max Mass of Workpiece (kg)	5000
Max Diameter of Workpiece (mm)	2400
Distance between Two Support Bearings (mm)	Min 320
Journal Diameter Scope of Workpiece (mm)	40-180 (can increase 180-380)
Spindle speed (r/min)	Stepless speed regulation
Motor Power (kw)	15 Frequency conversion
Universal coupling torque	1250
Min Achievable Residual Unbalance Amount(emar)	≤1g. mm/kg

Range of Application

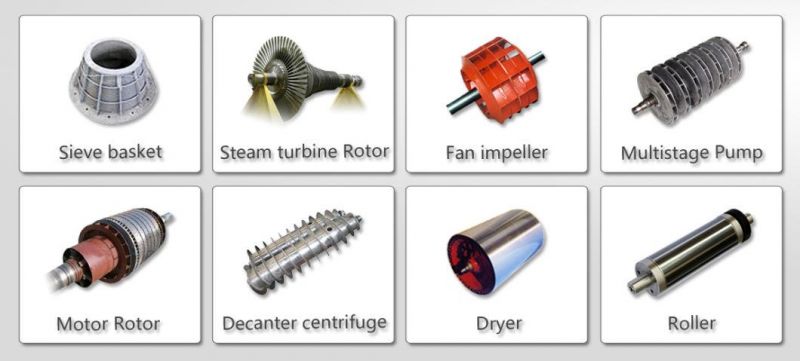

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc

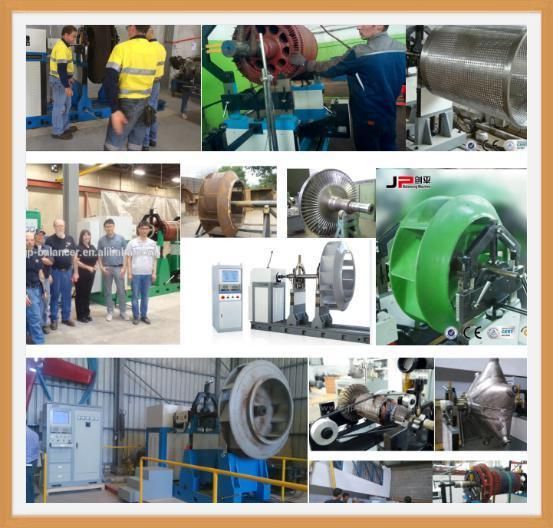

Customer use display

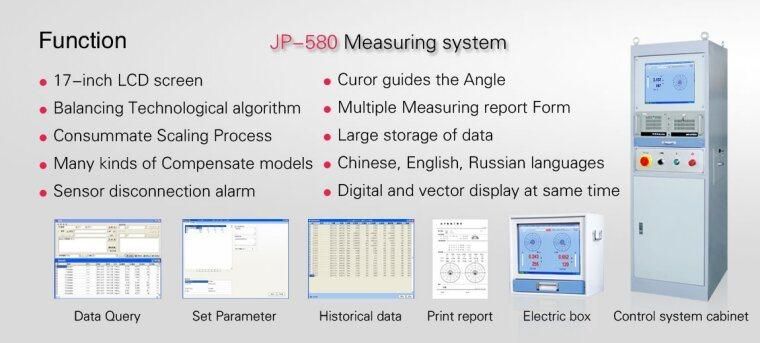

Eletrical Measuring System

Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

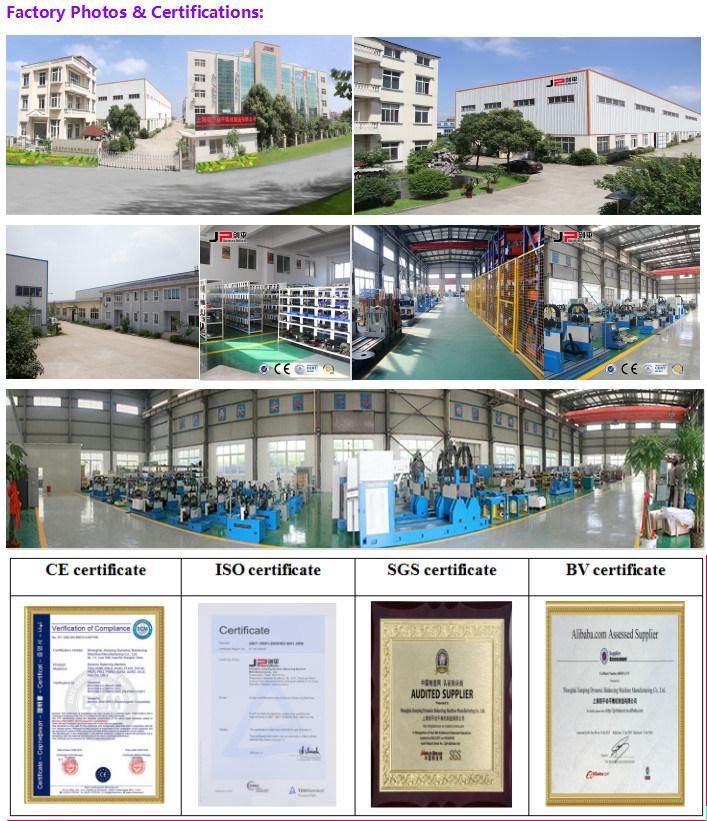

About us & Certificate

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.

We have ten series and more than 40 models of balancing machines, including  belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.

Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
