High Precision Circuit Breaker Analyzer Switch Mechanical Characteristics Comprehensive Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Time Measuring Range：400ms
  • Time Measuring Resolution：0.1ms
  • Speed Measuring Range：0~20m,S
  • Speed Measuring Resolution：0.01m,S
  • Travel Measuring Range：600.0mm
  • Travel Measuring Resolution：1mm

Base Info

  • Model NO.：GDGK-307
  • DC Power：DC 30~250V, 0~20A
  • Working Power Supply：AC 220V±10% 50,60Hz
  • Working Temp.：0~50°c
  • Related Humidity：≤85% Rh
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

Speed Measurement250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D25mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2DAngle sensor: 0~20m/s; error:<0.5%RDG+2DAcceleration sensor: 0~20m/s; error:<5%RDG+2DCoil Current MeasurementRange: 0~20A; resolution: 0.001A; error:<0.01AVibration MeasurementRange: 0~5000G; error:<3%Internal DC Power SourceVoltage: 12~265V; current:0~20AData SaveBuilt-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connectionPower SupplyAC220V±10%; 50Hz±10%Working EnvironmentTemperature: -10~50°C; Humidity:<80%

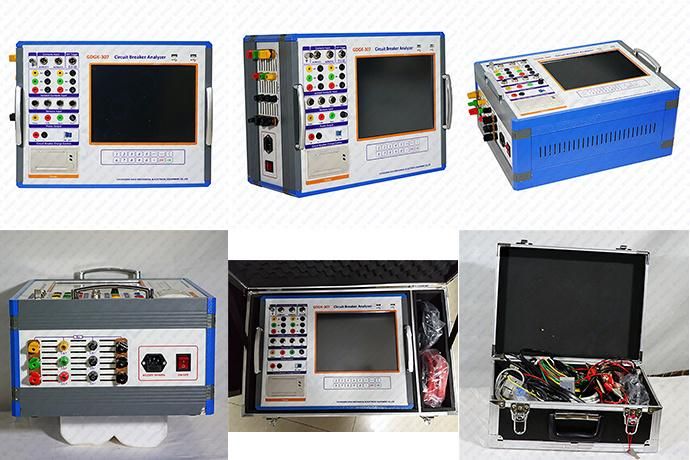

  • Product Show:
High Precision Circuit Breaker Analyzer Switch Mechanical Characteristics Comprehensive Tester
