2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：>1000KN

Base Info

  • Model NO.：WAW-2000
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Sample Clamp：Hydraulic Grips
  • Tension Space：650mm (Can Be Customized)
  • Compression Space：500mm (Can Be Customized)
  • Sampel Grips：Hydraulic Clamp (Can Be Customized)
  • Safe：Protection Net
  • Color：Blue or White
  • Load Resolution：1,300000
  • Deformation Measurement Range：2%-100%Fs
  • Deformation Accuracy：Below Than 1%
  • Displacement Resolution (mm)：0.01
  • Transport Package：Standard Sea Shipping Case
  • Specification：740x580x2035mm
  • Trademark：Hensgrand or OEM
  • Origin：Jinan, Shandong
  • HS Code：9031809090
  • Production Capacity：100 Sets,Month

Description

3-phase, AC380V, 50Hz (Can Be Customized) 2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine

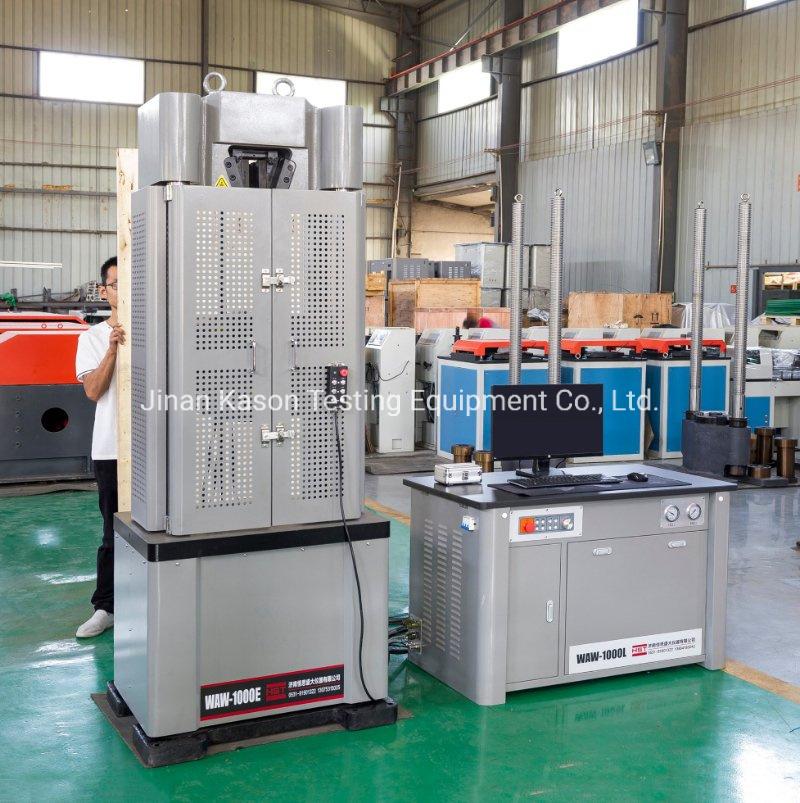

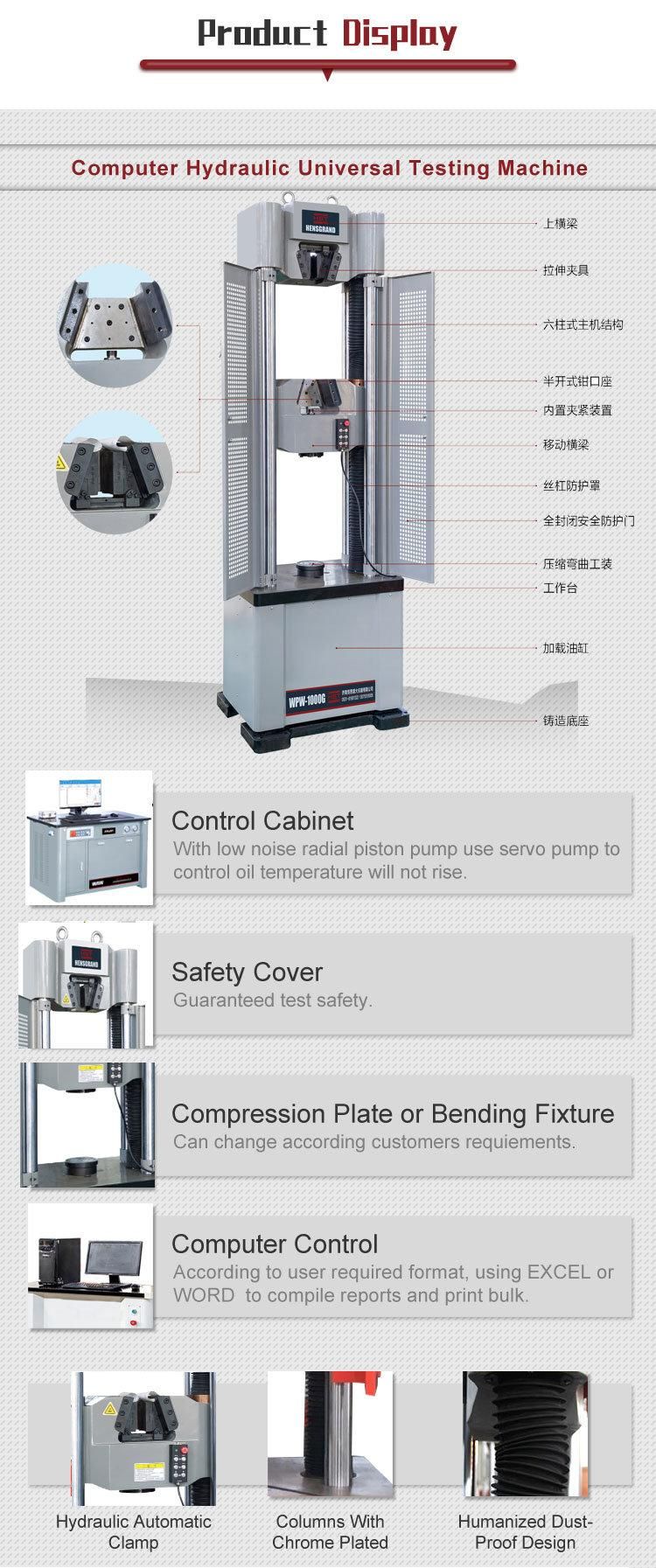

Machines details show:
2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine
2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine
2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine
2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine

Certifications: (CE ISO SGS ETC.)
2000kn Universal Tensile Testing Equipment Measuring Material Strength Machine

Hydraulic universal testing machines style:
Digital display model: WE-100/300/600/1000D
Computer display model: WEW-100/300/600/1000D
Computer Display Electro-Servo model: WAW-100/300/600/1000D/1500H/2000H

Dear customers , we have many kinds of universal testing machines for choice, from 200N to 2000KN for choice. They are suitable for testing the steel, steel strand, the steel wires, the rubber , the plastic etc.If any demand, please send inquiry directly to Sunny for more informations.
