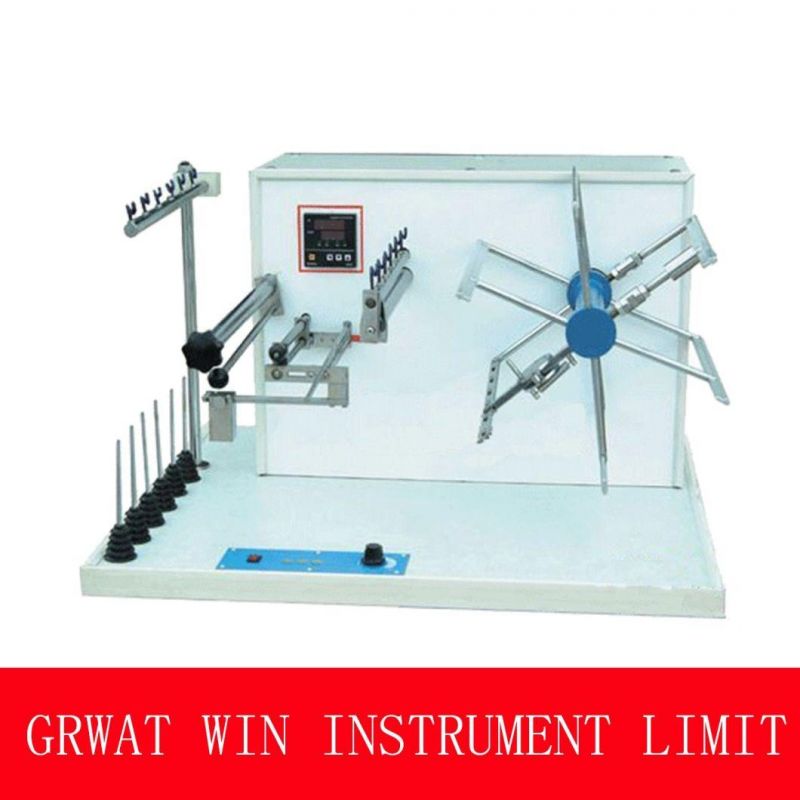

Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：1000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：Operation Speed:20-250 Rpm Adjustable
  • Accuracy Grade：1
  • Load Way：Mechanical Load

Base Info

  • Model NO.：GW-073
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-073
  • Sample Number：6 PCS
  • Spread of Each Lea：60mm
  • Swift/Wheel Circumference：1.5 Yards or 1 Meter
  • Operating Speed：100+,-2 Rpm(20-250 Rpm Adjustable)
  • Digital Counter：0-999999,LED
  • Pre-Tension：0-100cn
  • Dimensions：78*66*48cm
  • Transport Package：Standard Export Safety Packing
  • Specification：78*66*48cm
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Sets,Year

Description

Number of leas made at a time6Spread of each lea60 mmSwift/wheel circumference1.5 yards or 1 meterOperating speed100 ± 2 rpm (20-250rpm adjustable).Digital Counter (Preset Type)0-9999,LEDTraverse motion35 ± 0.5 mmPre-tension0 -100 cNDimensions780 x 660 x 480 mmPower supply220V,50Hz or 110V,60HzWeight53 Kg

Accessories:Main Unit01 No.Power Cord01 No.This User's Manual01 No.Inspection & Conformance Certificate01 No. Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)
Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)Automatic Electronic Yarn Reel Tester / Wrap Reel for Textile (GW-073)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
