• Model NO.：STYE-2000D
• Power Source：AC220V
• Oil Cylinder Position：Under
• Max. Testing Power：2000kn
• Relative Indication Error：±1%
• Max. Distance Between The up and Down Be：310mm
• Max. Piston Stroke：90mm
• Rated Pressure of The Hydraulic Pump：40MPa
• Max. Piston Lift Height：30 Cm
• Size of The Bearing Plate：320×260mm
• Diameter of The Piston：Φ250mm
• Transport Package：Export Wooden Case
• Trademark：YF
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. STYE-2000D Power Source AC220V Oil Cylinder Position Under Max. Testing Power 2000kn Relative Indication Error ±1% Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Rated Pressure of The Hydraulic Pump 40MPa Max. Piston Lift Height 30 Cm Size of The Bearing Plate 320×260mm Diameter of The Piston Φ250mm Transport Package Export Wooden Case Trademark YF Origin Made in China HS Code 9031809090 Production Capacity 200PCS/Month

Product Description

STYE-2000D Analogue Display Hydraulic Compression Testing Machine

Application:
Compression test of building  materials including concrete, cement, airbrick, fire proofing tile, engineering  ceramics and building stones
Technical parameters:

Max. testing power	2000kN
Precision	Superior than grade 1
Piston lift height	30 cm
Working voltage	380V±10% or 220V±10%
Size of the bearing plate	320×260mm
Max. distance between the up and down bearing plates	310mm
Max. piston stroke	90mm
Diameter of the piston	Φ250mm
Rated pressure of the hydraulic pump	40Mpa

Package:
Measurement of 2000KN capacity: 960×480×1170mm,
weight: 800kg;3.Why Choose Us?
1, Established in 1981, with the 35 years of development, YF has development more than 14 modernized standard workshops, which be equipped with complete vehicle, gear, milling, grinding and boring machine, and covered 26,680 sqm2 workshop.
2,YF obtained the ISO9001,14001 and European Standard CE certification.
3, YF brand was authorized as "ZheJiang Famous Brand"and "National Key New High-Tech Enterprise"
4. Full range of Products, including steel soil, asphalt, concrete, cement, motor and rock, offering you one-stop purchase, save your money and delivery time.
5. Great Production Capacity, 14 modernized standard workshops
6. Experienced  Engineer & Satisfactory After-sales Service
7.MOQ:1 set is available

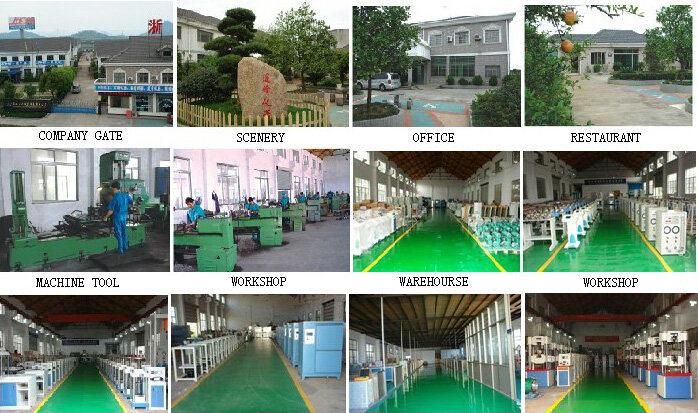

4.Production workshop

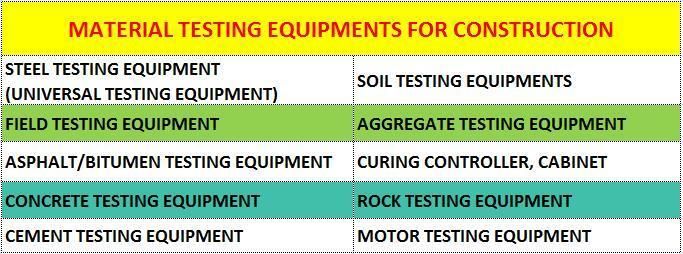

5.Product Line

6.Packaging
Packaging: Standard export wooden case
Delivery: About 3-20 days according to the order

7.Our Service
1. Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2. Customizing machines according to clients' inquiry, such as different design, different brand parts, different colors, more function, designed logo etc.
3. If possible, Engineers could go to clients' factory in time for installation, training and trial production.
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5.1 year free warranty, Lifetime technical service support.
8.FAQ
What's the delivery time?
Delivery time from 3 days-20 days according to the products.
What's your payment terms?
We accept T/T, L/C or Western Union.
What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.
Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No..
Certificates (ISO9001 AND ISO 14001)

Send us an inquiry and we will contact you soon!
If you want to know more, pls view our official website: cnzjtg.en.made-in-china.com
Contact person: Joyce Hu
Tel:0086-13858405918
