Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：1000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Waterproofness Testing Machine
  • Maxcapacity：Waterproofness Testing Machine
  • Accuracy Grade：1
  • Load Way：Air Pressure Engine

Base Info

  • Model NO.：GW-014F
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-014f
  • Sampling：2 PCS
  • Bending Angle：25 Deg Adjustable
  • Bending Speed：60 Times,Min
  • Counter：0-999999 Adjustable
  • Dimension：91*82*84 Cm
  • Power：220V 50Hz
  • Transport Package：Standard Export Safety Packing
  • Specification：910x 820x840mm
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Basic Info.

Model NO. GW-014F Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-014f Sampling 2 PCS Bending Angle 25 Deg Adjustable Bending Speed 60 Times/Min Counter 0-999999 Adjustable Dimension 91*82*84 Cm Power 220V 50Hz Transport Package Standard Export Safety Packing Specification 910x 820x840mm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

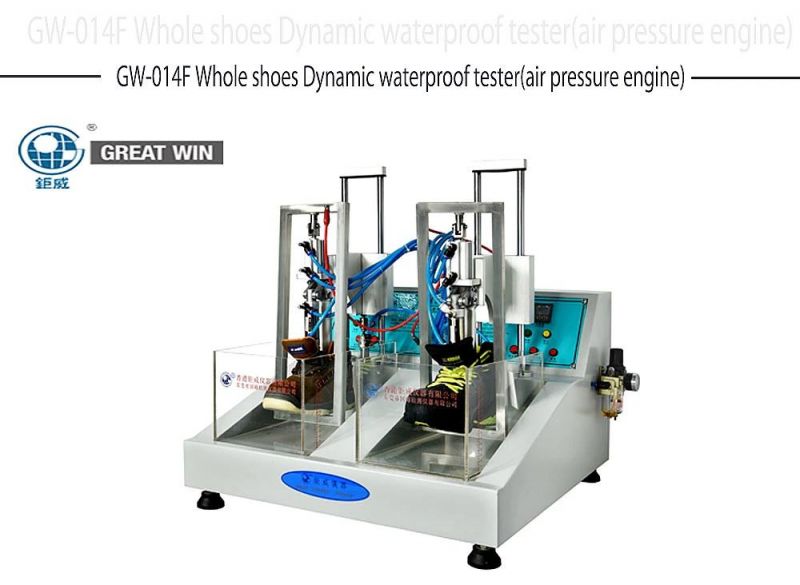

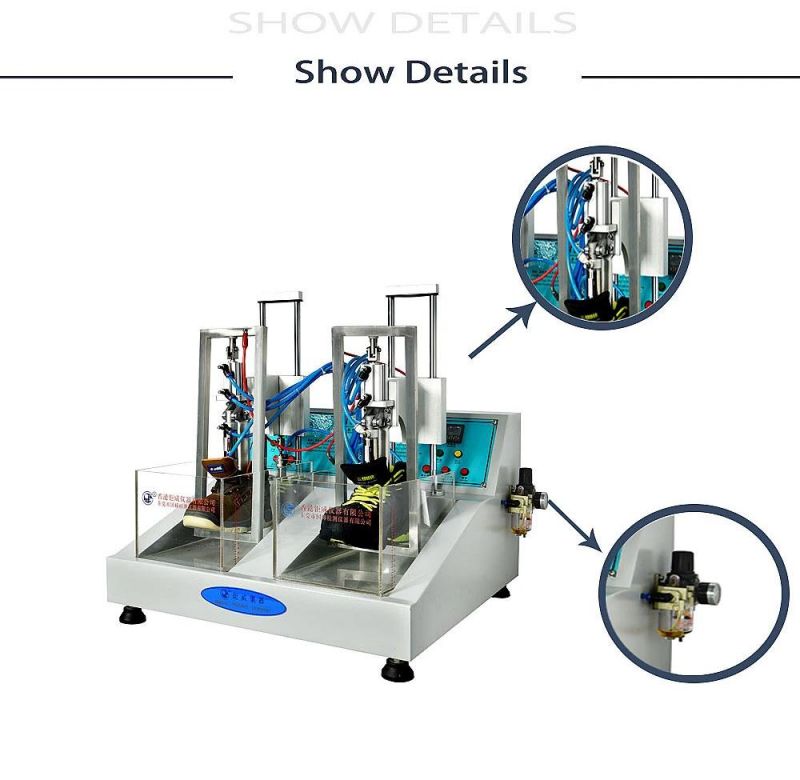

 Whole shoes Dynamic waterproof  testing machine(air pressure engine)(GW-014F)


•Brief introduction:
This machine was used to test whole footwear dynamic waterproof.set up the sample , put  some water in the water box and make it touch the water.then the tester will engine with standard degree flex the half sole. According the time of water form outside permeate to the inside and the flexing times to judge the test.

•Technical Specifications:

ModelGW-014F Whole shoes Dynamic waterproof tester(air pressure engine)
Sampling: 2pcs
Bending angle: 25° adjustable
Bending speed:60 times/minc
Compressed air 6 bar min
Counter: 0~999999 adjustable
Dimension: 910×820×840mm
Tank size:400*200*200
N.W.: 59kg
Power: AC220V, 50HZ


•Standard for:
SATRA TM 230


•Attached accessories:
1pc hex wrench
Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)
Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)
Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)Satra TM230 Whole Shoes Dynamic Waterproof Testing Machine (GW-014F)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
