• Model NO.：GD-2806H
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply:  AC 220V (-5%~+10%), 50 Hz;2. Measurement range:  32 ºC~160 ºC.

 (1) Heating medium: distilled water (softening point under 80 ºC)

 (2) Heating medium: glycerin (softening point over 80 ºC)

3. Temperature resolution:  0.01 ºC4. Stirrer:  the stirring speed can be adjusted continuously.5. Heating rate: it will be adjusted to 5.0±0.5 ºC/ min automatically after three minutes6. Test result:  LCD screen shows results and printer to print.7. Heating power:  600 W8. Computer Interface:  RS-232C Communication Interface9. Cubage of beaker:  1000 ml, quartz square glass jar



10. Ambient temperature:

The temperature shall be lower than 35 ºC and keep stable. There

shall not be any airflow

11. Relative humidity:

≤85%

12. Maximum power consumption:

700 W

13. Dimension:

400mm*300mm*490mm (Length * width * height)



I. Main technical specifications

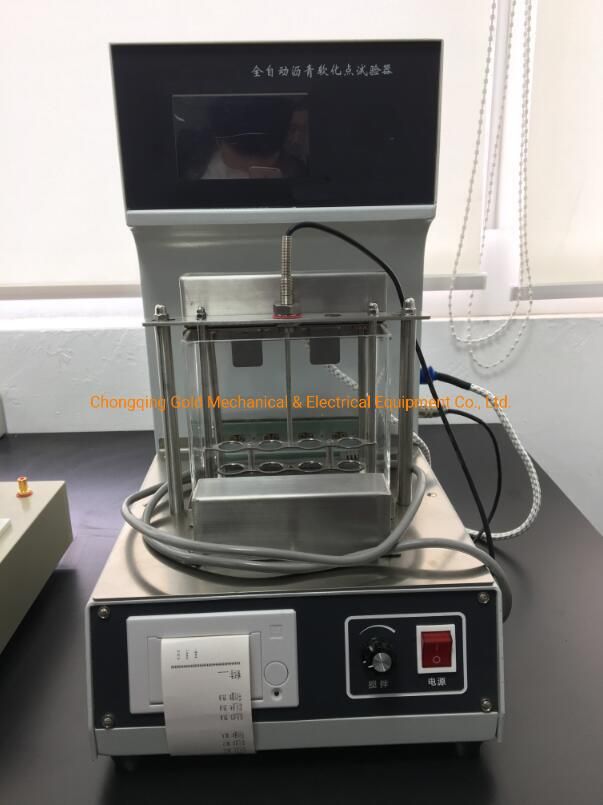

1. This instrument adopts microcomputer to control the test. Automatically stir, linear heating, automatically get the

result and automatically print the test result.

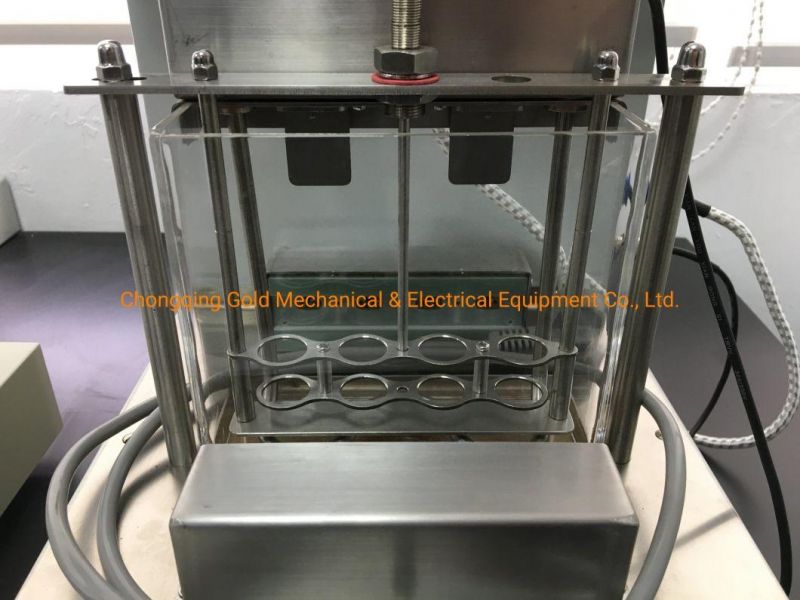

2. The beaker adopts high temperature resisting glass material. The sizes of steel ring and ball can meet test standards.



3. Small desktop structure. LCD display. Light touch panel. It can determine four samples at a time. Easy to use and results reliable.



4.The maximum heating temperature of the water bath is 160°C.

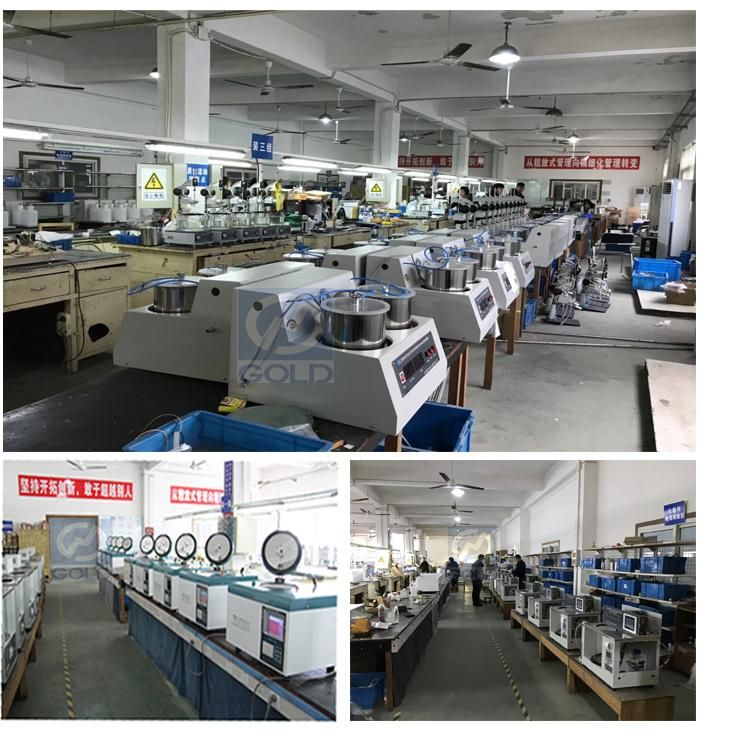

Workshop
