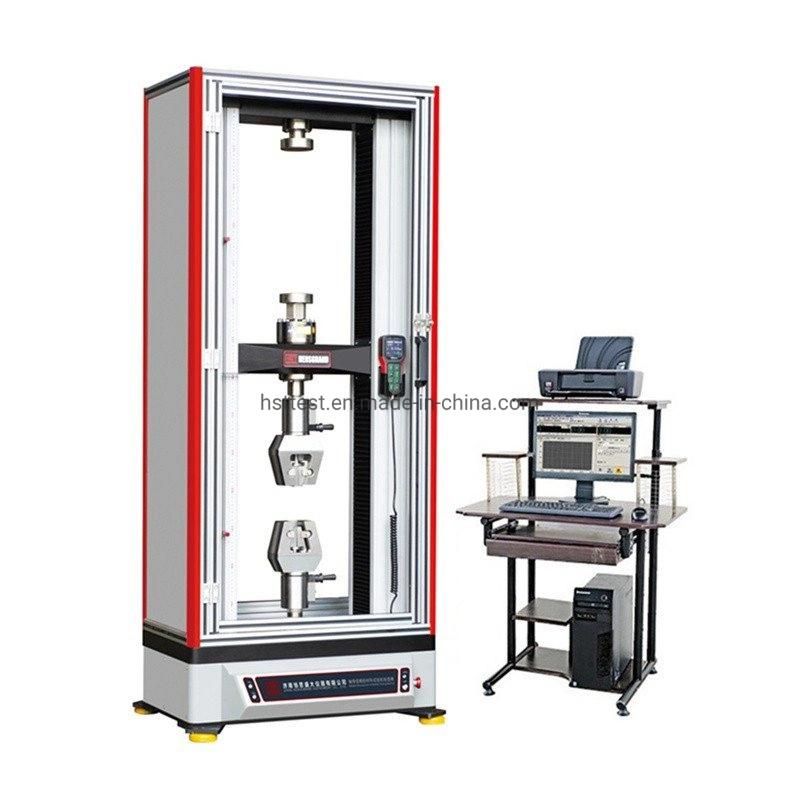

10kn 20kn 50kn 100kn 200kn Jinan Hensgrand Electronic Tensile Strength Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Yes
- Warranty：12 Month
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：1
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
Base Info
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Computer
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Capacity：10-1000kn
- Certificate：CE ISO
- Tensile Space：770mm
- Name：Electronic Universal Testing Machine
- Gross Weight：660kg
- Control Method：Computer Control, Digital Display
- Software：Yes
- OEM：Yes
- ODM：Yes
- MOQ：1 Set
- Transport Package：Plywood
- Specification：1.6cbm
- Trademark：hensgrand
- Origin：China
- HS Code：9024109000
- Production Capacity：1000per Year
Description
4. Main Unit Feature:
4.1 Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile,
lower for compression, double space. The beam is step less lifting.
4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of
the test force and deformation speed.
4.3 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid
sensor damaged due to the moving distance is too large.
4.4 The table, moving beams is made of high quality precision machining steel plate , not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
4.5 Three columns of mandatory orientation, make the main unit rigidity much improved, to further
ensure the repeatability of measurement.
4.6 Adopt bolt type grip installation, make the grip replace easier.
4.7 Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have
over-current, over-voltage, over speed, overload protection device.
5.Function Features:
5.1 Automatic calibration: system can automatically realize the accuracy of the calibration value.
5.2 After the sample broken, automatic stop.
5.3 Automatic display: Real-time display testing force, displacement, testing speed, peak value,
testing status on one LCD.
5.4 Automatic return: beam automatic return to initial position when testing finished.
5.5 Breakage judgment: sample after fracture,beam automatic stop moving.
5.6 Limiting protection: Program control and Mechanical limiting protection.
5.7 Overload protection:When more than 3~5% of the rated load device automatically stop working
5.8 Automatic calculation: automatic calculation area after input sample diameter (round); Width,
thickness (flat), sample gauge ect.
