80 Kv Equipment Dielectric Strength Bdv Analyzer Transformer Breakdown Voltage Insulation Oil Test Apparatus

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Standards：IEC60156,Is6792,BS5874,VDE0370-5, Astmd877, Astmd1
  • Output Voltage：AC 0V~80kv
  • Measurement Accuracy：±(1% of Full Scale + 2 Digits)
  • Max. Test Times：9
  • Resolution：0.1kv
  • Temperature Measurement Range：0°c to 70°c, or Better

Base Info

  • Model NO.：GDYJ-502A
  • Data Storage：100 Groups
  • Power Supply：AC220V, 50Hz
  • Working Environment：Room Temperature to 45°c, Humidity<85%
  • Display：7 Inch Colorful LCD with Touch Pad
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：1000 Sets , Month

Description

No.ParametersSpecifications1StandardsIEC60156/IS6792/BS5874/VDE0370-5, ASTMD877, ASTMD18162Output voltageAC 0V~80KV3Rate of voltage rise0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%4Measurement accuracy±(1% of full scale + 2 digits)5Max. test times96Stir time0~999s7Wait time0~999s8Resolution0.1KV9Temperature measurementYes10Temperature measurement range0°C to 70°C, or better11Temperature resolution1°C, or better12Data storage100 groups13Weight38kg14Size550 mm*500mm*580mm15Power supplyAC220V, 50Hz16Working environmentRoom temperature to 45°C, humidity<85%17Display7 inch colorful LCD with touch pad18PrinterYes19Oil Vessle1

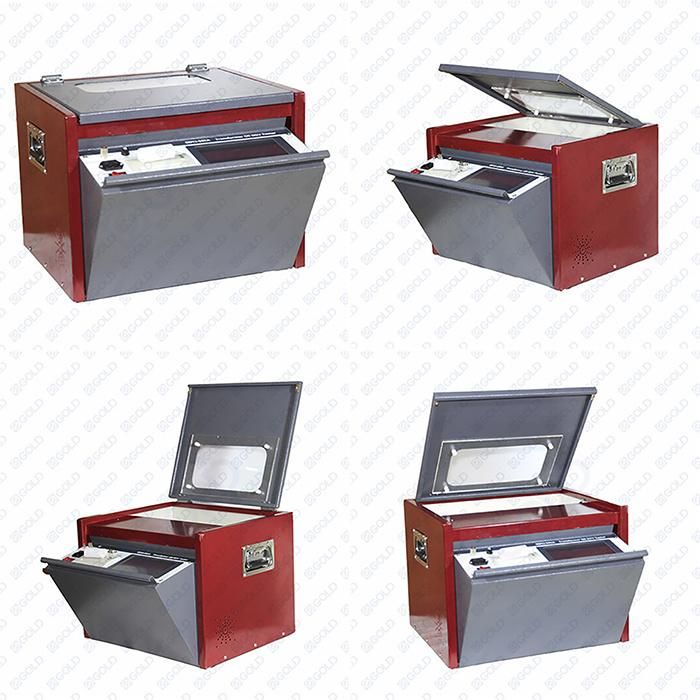

  • Product Show:
80 Kv Equipment Dielectric Strength Bdv Analyzer Transformer Breakdown Voltage Insulation Oil Test Apparatus
