Test Instrument

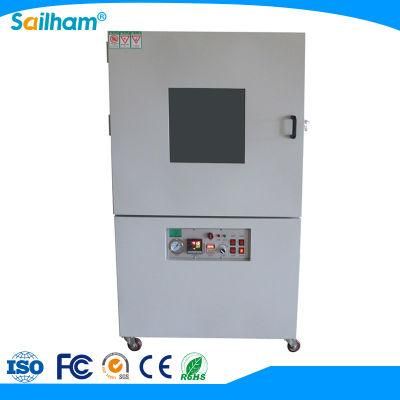

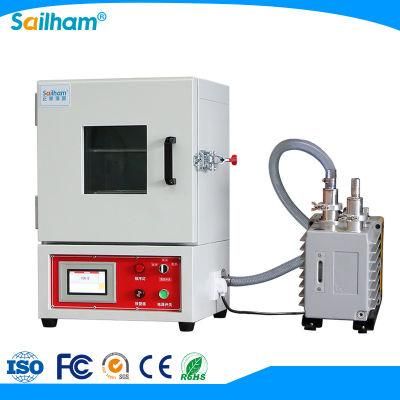

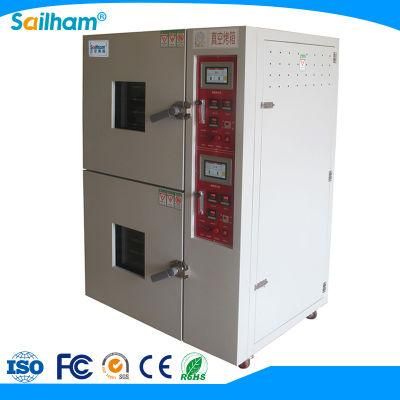

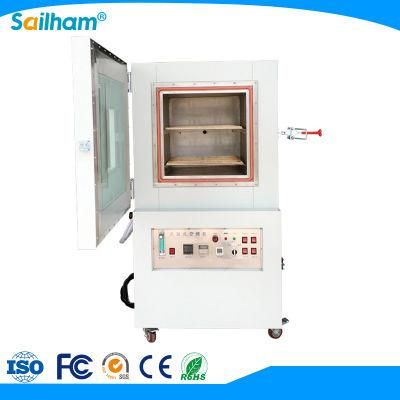

New Model Professional Hot Air Vacuum Drying Oven

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification:Ce, RoHS, FCC, ISO, SGS Certificates
  • Controller:Pid or PLC,Programmable Control
  • Inner Material:SUS 304 Stainless Steel
  • Service:OEM , ODM , Non-Standard Available
  • Applications:School, Hospital, Lab, Factory
  • External Materials:Powder Coating or SUS 304

Base Info

  • Model NO.:ZH-VT-30
  • Max Temperature:200c ~ 1200c Optional
  • Power:Electronic, AC220V or 380V
  • Other Function:Programmable Remote Control
  • Warranty:12 Months
  • Transport Package:Wooden Case for Export
  • Specification:Customization available
  • Trademark:Sailham
  • Origin:Guangdong, China
  • HS Code:8479899990
  • Production Capacity:5000sets,Year

Description

   ModelZH-VT-20
(A~D)ZH-VT-30
(A~D)ZH-VT-40
(A~D)ZH-VT-50
 (A~D)ZH-VT-60
 (A~D)ZH-VT-70
 (A~D)Power SupplyAC220V 50/60Hz & 1 , AC380V 50/60Hz 3Shell MaterialSpray-paint Anti-corrosionLiner Material304 Stainless SteelTemp. Range(A~D) A: 200°C; B: 300°C; C: 400°C; D: 500°CVacuum Degree0Mpa~-0.1MPa,vacuum degree:≤133PTemp. Stability±1.0°CTemp. Analysis0.1°CWorking Temp.+5~40°CInput Power (W)4007001400200020602800Chamber Capacity (L)82764125216343Inner Dimension (W*D*H, mm)200*200*200300*300*300400*400*400500*500*500600*600*600700*700*700Overall Dimension (W*D*H, mm)520*390*430460*370*680560*470*780760*670*1350880*770*1450980*870*1550Weight (kgs)5090~180220~320250~380360~480550~650Shelves (Pcs)1234Time Range1~9999 minOptional ConfigurationExplosion-proof

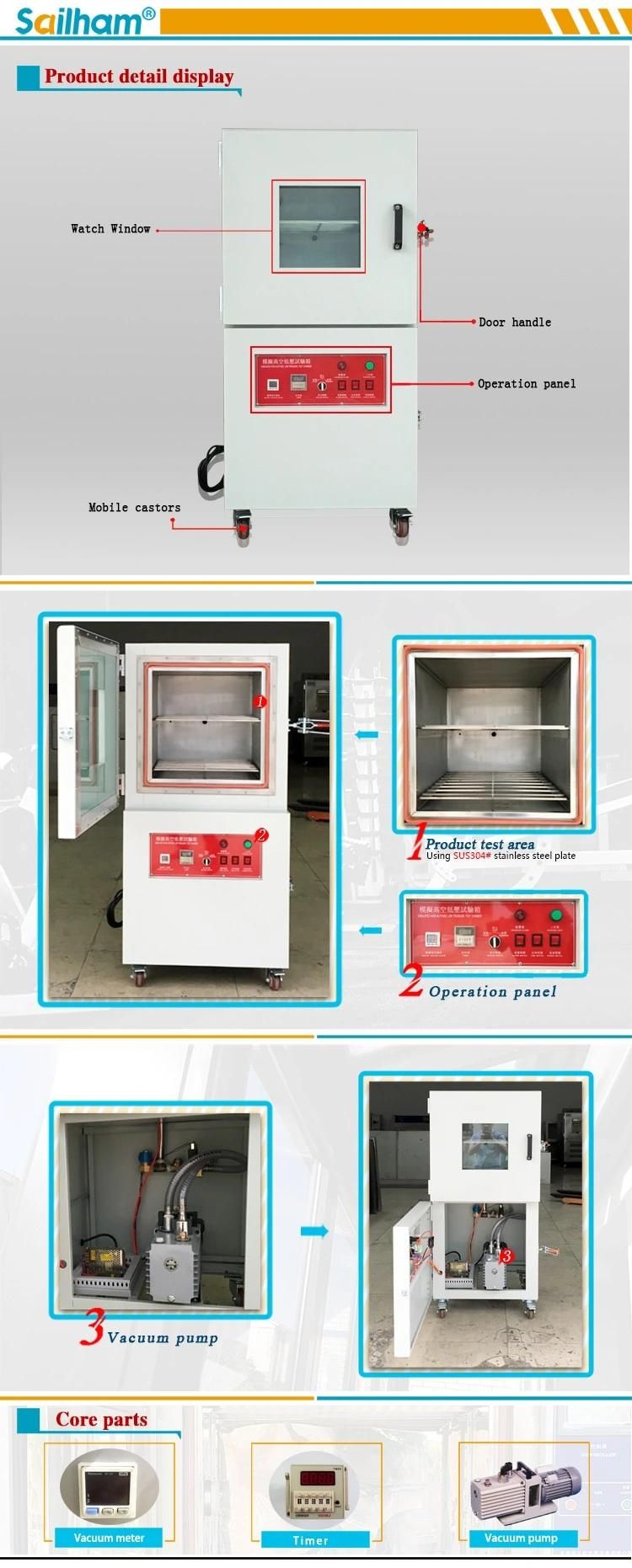

Function
1. Outside SECC steel material, with fine powder coating treatment; Inner mirror stainless steel;
2. The oven adopts new high temperature resistant long shaft motor;
3.Silicone forced tight;
3. Over temperature protection, super load automatic power system;
4. Circulation system: air force level cycle.
5. PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
6. Timer: temperature to time, when the power failure with alarm indication;
7. According to customer demand to match glass window which can be customized according to customer specifications.



New Model Professional Hot Air Vacuum Drying Oven



Company profile
With more than 14 years of experience.
Sailham is a leading manufactuer that specializes in manufacturing and marketing the cost effective& nbsp;and reliable environmental test chambers. Our main products includes:environmental test equipment and mechanical/optical equipment,such as:programmable constant temperature humidity test chamber, high - low temperature cycling test chamber,thermal shock test machine(2zone or 3zone)...

Sailham have got the international advanced ISO9001: 2008 quality management system certification,FCC certification, RoHS certification and SGS certification and also got the national
high-tech enterprise certificate.
Sailham work with many greatest company in the different industries in the world and provied the professional service

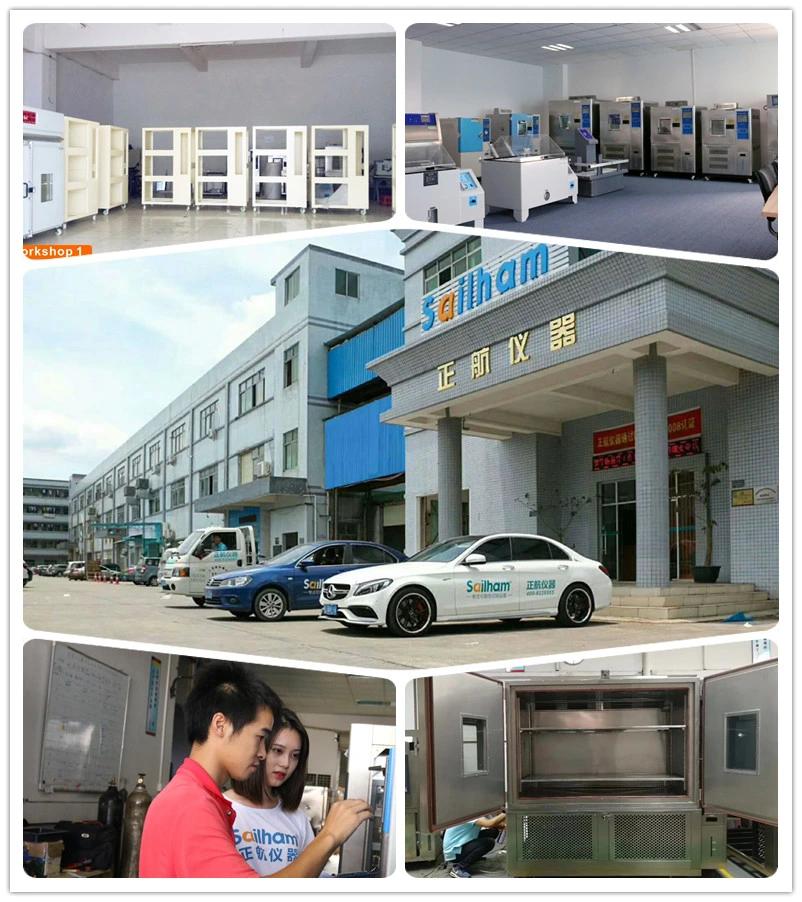

Our Factory

New Model Professional Hot Air Vacuum Drying Oven




New Model Professional Hot Air Vacuum Drying Oven




Packaging and shipping
New Model Professional Hot Air Vacuum Drying Oven



New Model Professional Hot Air Vacuum Drying Oven




FAQ

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.



Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.



Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory



Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
