Fuootech Transformer Insulating Oil Tan Delta Dielectric Loss Resistivity Testers Oil Tan Delta Tester for Insulating Oil
Chongqing Fuootech Oil Purifier Technologies Co., Ltd.- After-sales Service：Online, Video, Call, Email Supports or on-Site
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：21 Kgs
- Type：Insulating Oil Dielectric Loss Tester
- Accuracy Grade：+-0.5%
Base Info
- Model NO.：FT-YJS-059A Transformer Oil Dielectric Loss Tester
- Display：Digital
- Control：Computer Control
- Weight：21 Kgs
- Power Source：AC 220V, 50Hz
- Measurement Range 01：Capacitance: 5PF-200PF
- Measurement Range 02：Relative Permitity 1.000 ~ 30.000
- Measurement Range 03：Dielectric Loss Factor: 0.00001 ~ 100
- Measurement Range 04：DC Resistivity: 2.5 MΩm-20 TΩm
- Temperature Range：0 ~ 125 Degree
- Temperature Measurement Error：+-0.5 Degree
- AC Experimental Voltage：0 ~ 2200V, Adjustable Continuously
- DC Test Voltage：0 ~ 600V, Adjustable Continuously
- Power Consumption：100W
- Ambient Temperature：0 ~ 40 Degree
- Relative Humidity：Less Than 80%
- Certificate：CE, ISO, SGS
- Delivery Time：7 Days
- Transport Package：in Standard Exportation Plywood Case
- Specification：420 * 380 *385mm3
- Trademark：FUOOTECH
- Origin：Chongqing, China
- HS Code：9030899090
- Production Capacity：2000 PCS,Month
Description
Overview
Product Description
Detailed PhotosFeatures
- Product ParametersCertifications

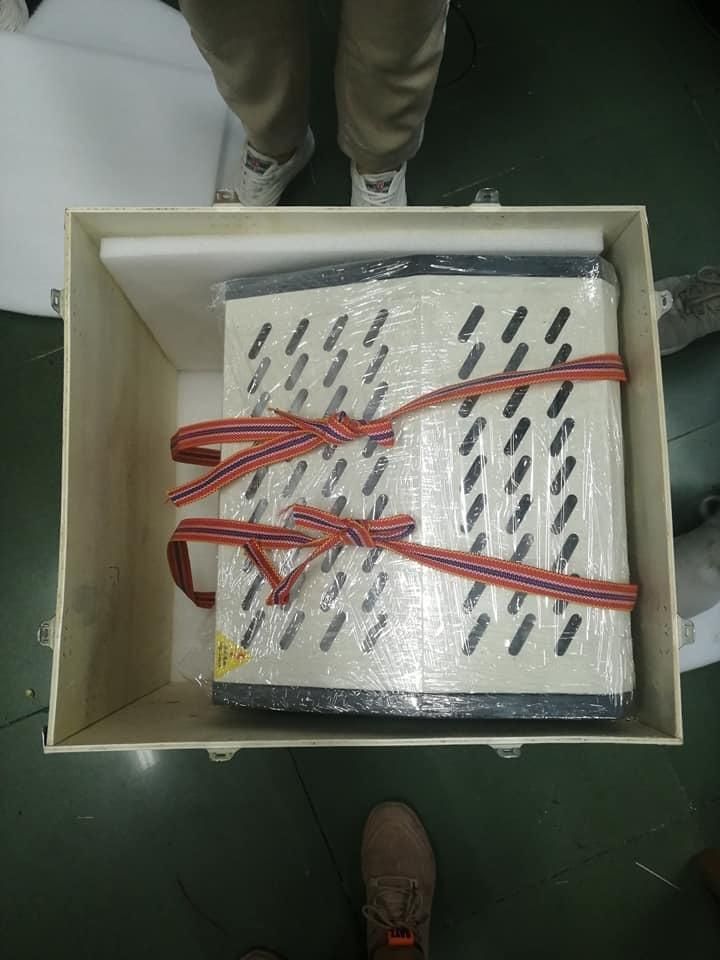

Packaging & Shipping
Company Profile
FAQ
1). What's the payment method?
A: Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance, etc.
2). How long is the delivery period?
A: Generally, it takes about 10 working days for production and then the delivery will be done timely.

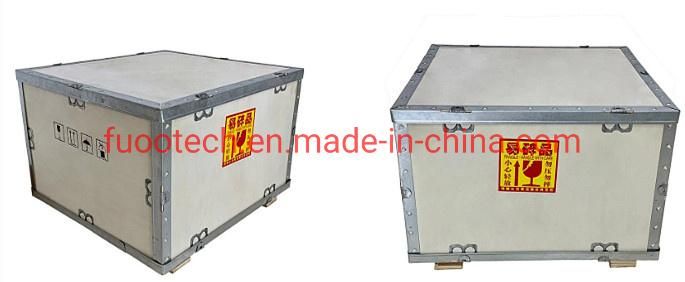

3). What's the package made of?
A: The package is made of international export standard wooden case.
4). What's the delivery method?
A: By train, by air, by sea, by truck, by express, etc.
Welcome to visit our website and visit our company, welcome your inquiry and contact.
