• Model NO.：GD-R3027
• Inspecting Mode：Electrochemistry Sensor
• Test Time：15 Minutes
• Sampling Volume：1ml, 2ml, 5ml( Determined by H2s Concentration)
• Diluted Doses：20ml
• Working Power Supply：AC220V±10V 50Hz
• Engine Power：300W
• Transport Package：Wooden Case
• Specification：420*500*340mm
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：10000 Sets, Month

Overview Product Description

Hydrogen Sulfide H2S Analyzer, which will volatilize during storage and transportation. Excessive hydrogen sulfide will seriously threaten the health of related personnel. In addition, in the crude oil refining process, the presence of hydrogen sulfide not only causes health threats, but also corrodes machinery and equipment. In order to formulate reasonable countermeasures, it is necessary to accurately understand the content of hydrogen sulfide in crude oil and fuel oil.

Features

1.Air flow is measured and controlled by digital mass flowmeter.
2.The instrument is designed and manufactured completely in accordance with ASTM and IP testing standards.
3.Microcomputer control, automatic measurement, automatic calculation results;
4.The gas phase processor of semiconductor refrigeration has fast cooling speed.
5.Fisher glass reaction test tube with easy operation.
6.Luer type sintering filter, filled with special adsorbent;
7.Detection system for direct reading;
8.Quick Screwing gland self-sealing;

SpecificationsApplicable standardsASTM D7621 ISO 8217 IP 570 Measuring range0-250mg/kg H2SOperating temperature15~30ºC,RH80%Viscosity rangeUp to 3000mm2/sInspecting modeElectrochemistry sensorTest time15 minutesSampling volume1ml, 2ml, 5ml( Determined by H2S concentration)Diluted doses20mLWorking power supplyAC220V±10V 50HEngine power300WDetailed PhotosCertifications

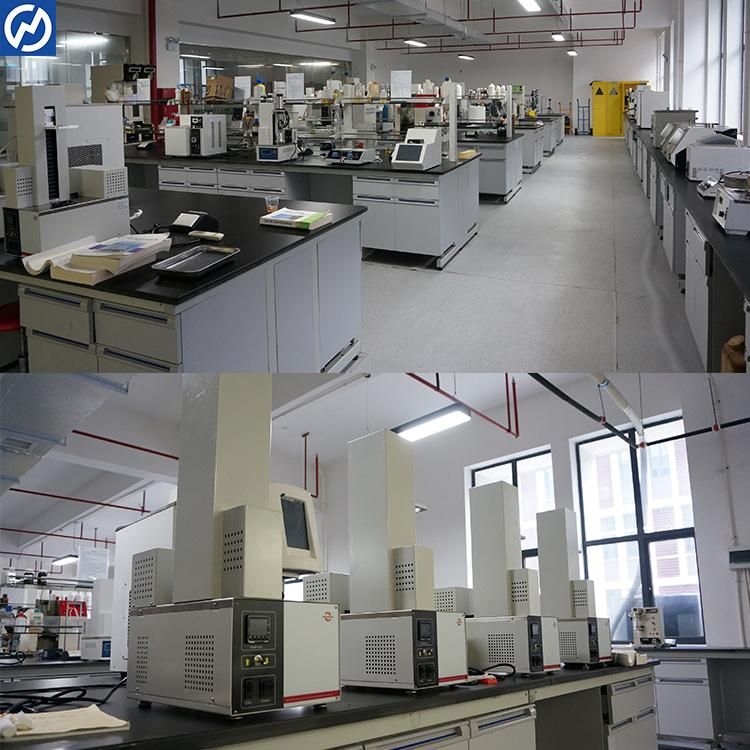

Company ProfileChongqing Gold Mechanical & Electrical Equipment Co., Ltd. which is mainly design and manufacture the petroleum testing instrument, asphalt testing equipment and related lab equipment.After more than 20 years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument and asphalt testing instrument. We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.And we have gained strong advantage and high reputation in international market.
