• Model NO.：HZ-109S2
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Power Supply：AC: 220V± 10%· 25A, 50Hz,60Hz
• Current Output：AC: 1000A· 5V or 500A· 10V
• Primary Current Range：0~1100A
• Resolution：0.1A;
• Working Environment：Temperature -10~40
• Accuracy：± 0.5%
• Transport Package：Wooden Box with Foam Inside;
• Specification：CE,ISO,IEC
• Trademark：Huazheng
• Origin：Hebei, China
• HS Code：9030339000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZ-109S2 Control Computer Control Weight 0-100Kg Power Source AC220V Power Supply AC: 220V± 10%· 25A, 50Hz/60Hz Current Output AC: 1000A· 5V or 500A· 10V Primary Current Range 0~1100A Resolution 0.1A; Working Environment Temperature -10~40 Accuracy ± 0.5% Transport Package Wooden Box with Foam Inside; Specification CE/ISO/IEC Trademark Huazheng Origin Hebei, China HS Code 9030339000 Production Capacity 100 PCS/Month

Product Description

High Current Generator 1000A 2000A primary current injection test machine


I.Introduction

I. Overview

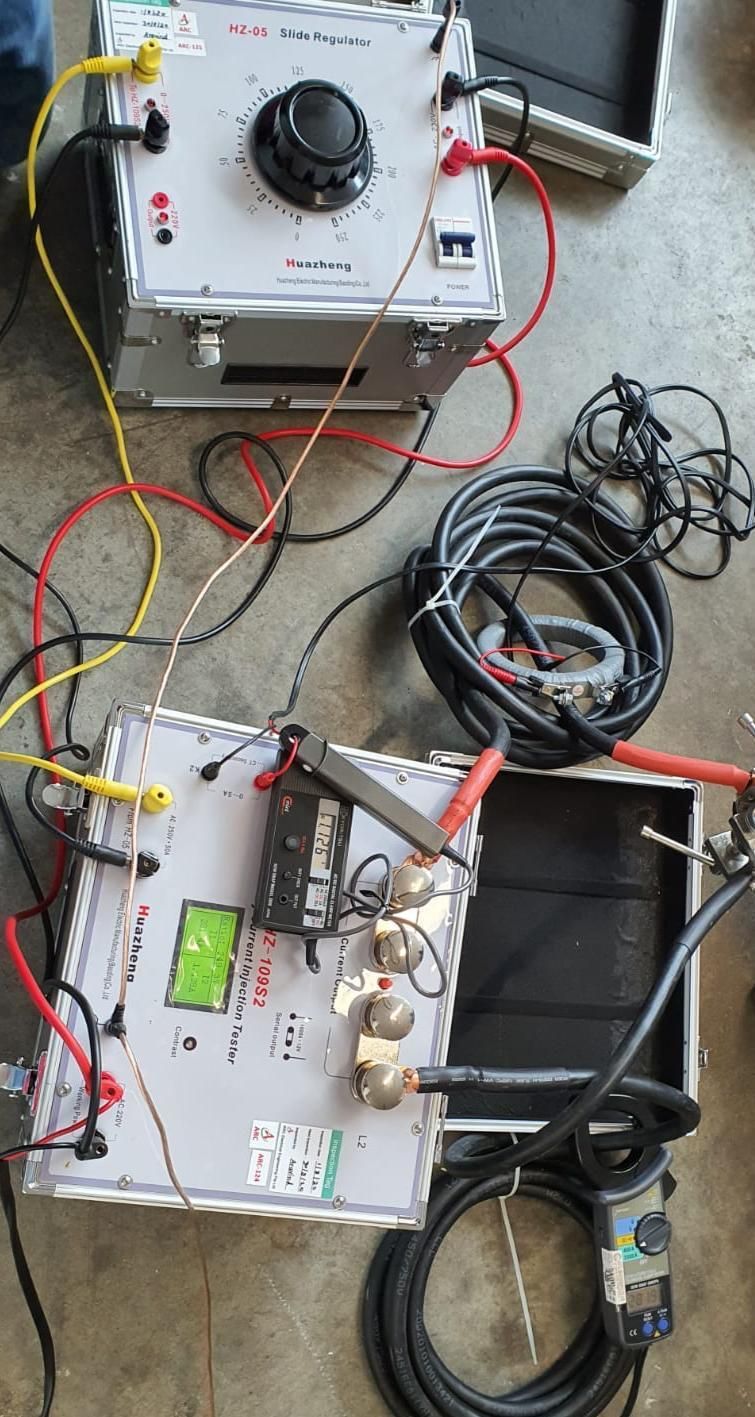

the HZ-109S2 Primary Current Injection Tester could simultaneously display primary current, secondary current and turn ratio. It is mainly suited for CT turn ratio and contact resistance tests of power system and other occasions needed high current test.

II. The Main Performance Index

2.1 Input Power Supply: AC:220V·50A,50Hz.

2.2 Output Current: AC:2000A·6V or 1000A·12V.

2.3 LCD Screen Digital Display: Simultaneous display of primary current and secondary current as well as the turn ratio;

The Range of Primary Current: 0~2200A,    Resolution:0.1A;

The Range of Secondary Current: 0~6A;    Resolution:0.001A.

2.4 Precision: TRUE RMS ±0.5%.

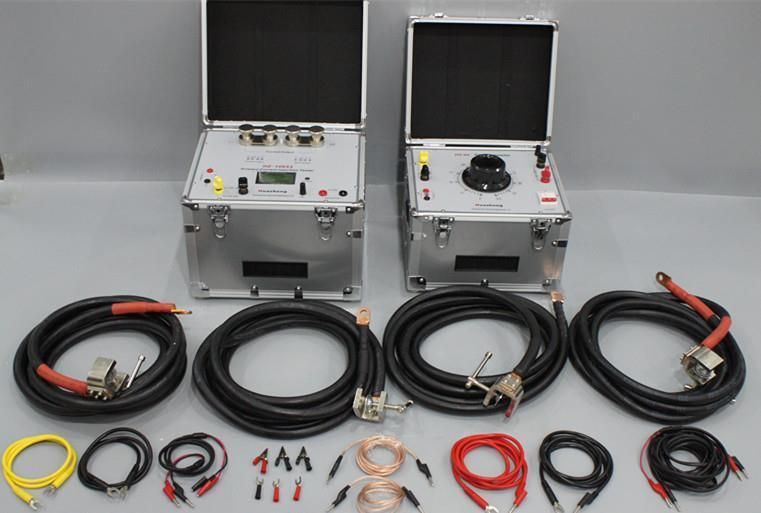

Packing List

No.	Item	Qty
1	Main engine	1
2	Test line	2
3	Power line	1
4	Double core sheathed wire	2
5	Ground lead	1
6	Small clip	5
7	Insert	1

III.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



IV.Customer Visit



V.Exhibition

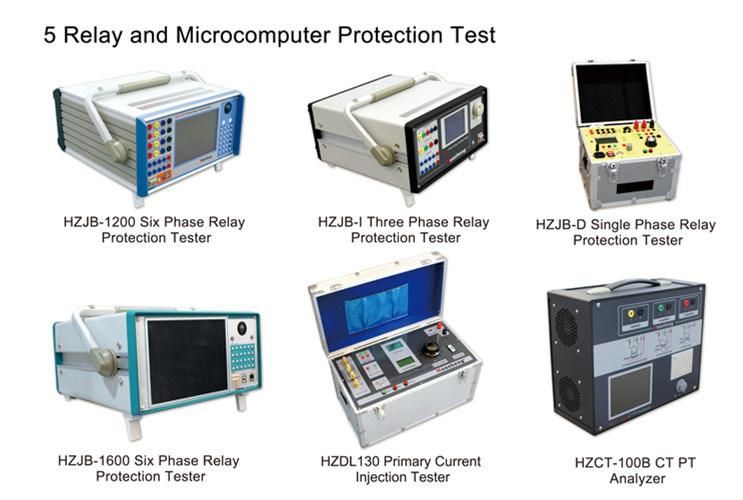

VI.Similar Recommendation
