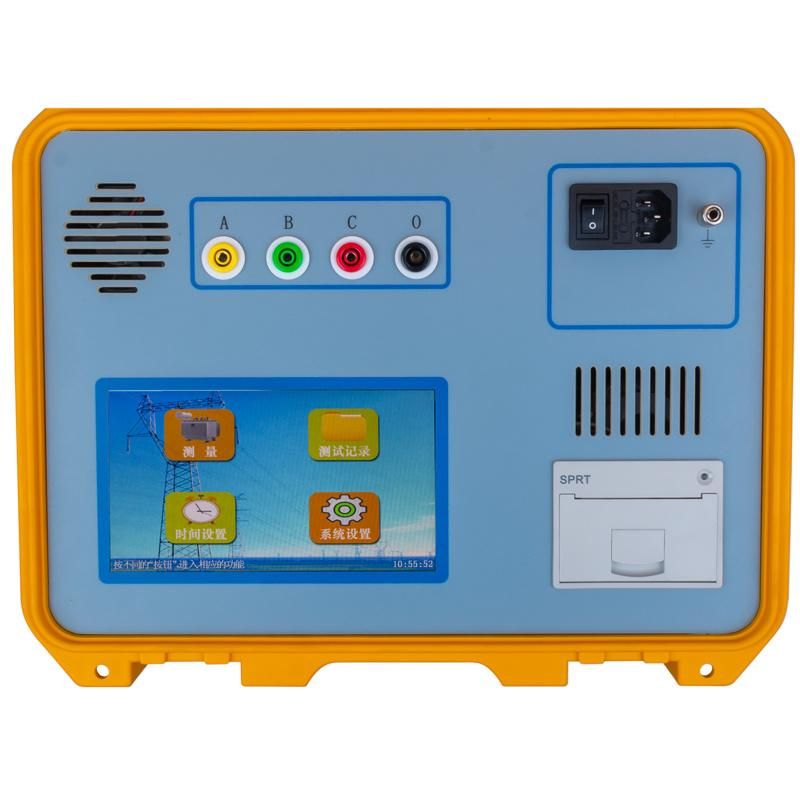

XHYZ1668A On-load tap-changer tester
Product description
The on-load tap-changer is the only moving part that is connected to the transformer circuit, so the detection of the on-load tap-changer is getting more and more attention. In the "Procedures for Handling and Preventive Tests for Electrical Equipment", it is required to check the sequence of actions and the switching time of the on-load tap-changer.
The XHYZ1668A on-load tap-changer tester is mainly used to measure the transition waveform, transition time, transient resistance value, and three-phase synchronization of the on-load tap-changer.
Main features
The instrument has large output current and its weight is light;
2. Two-stage current output, wider test range and higher stability;
3. Can automatically calculate the transition resistance value and transition time;
4. It has perfect protection circuit and strong reliability;
5. 5.7-inch large LCD display, it's easy for on-site operation;
6. U disk storage function, can store more waveforms data .
7. The keyboard and one-button shuttle are operated independently, which makes the instrument more convenient to operate.
Main Technical Parameters
Output current: 1.0A, 0.5A
Test range: Transition resistance: 0.5Ω~20Ω(1.0A), 0.5Ω~40Ω(0.5A)
Transition time: 0 ~ 250ms
Test accuracy: Transition resistance: ± (5% reading + 3 words)
Transition time: ± (0.1% reading + 3 words)
Storage mode: U disk storage, local storage
Ambient temperature: -10 ° C ~ 50 ° C
Ambient humidity: ≤85%RH
Working power supply: AC220V±10%
Power frequency: 50±1Hz
Size: 345 *295 * 175mm
Weight: 5kg
