• Model NO.：STDT-12
• Accuracy Grade：1
• Load Way：Digital Display
• Loading Method：Digital Display
• Display：Digital
• Control：Digital
• Weight：30kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stdt-12 Concrete Dynamic Elastic Modulus Tester
• Frequency Measuring Range：100-50kHz
• Measuring Error：Less Than 2%
• Frequency Sensitivity：1Hz
• Output Power：0-15W
• Environment：0-40ºC
• Relative Humidity：Less Than 90%Rh
• Working Time：Continuous 8h
• Voltage：AC220V, 50Hz, Less Than60W
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STDT-12 Accuracy Grade 1 Load Way Digital Display Loading Method Digital Display Display Digital Control Digital Weight 30kgs Power Source AC220V Oil Cylinder Position No Product Name Stdt-12 Concrete Dynamic Elastic Modulus Tester Frequency Measuring Range 100-50kHz Measuring Error Less Than 2% Frequency Sensitivity 1Hz Output Power 0-15W Environment 0-40ºC Relative Humidity Less Than 90%Rh Working Time Continuous 8h Voltage AC220V, 50Hz, Less Than60W Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

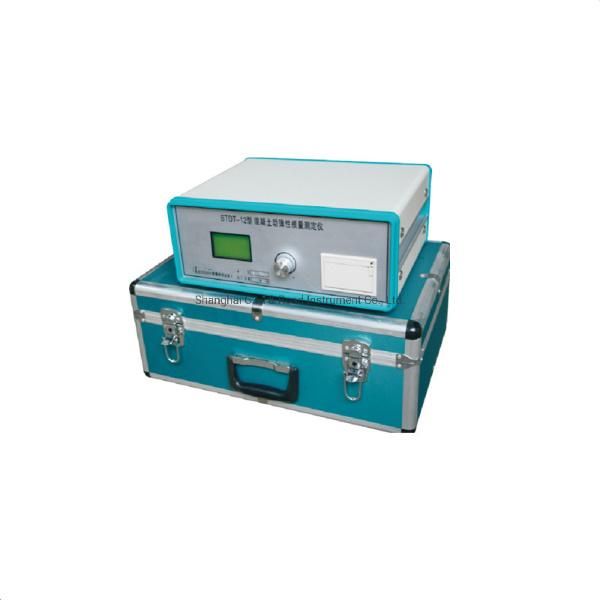

STDT-12 Concrete Dynamic Elastic Modulus Tester


Application:
For a certain object, there is an inherent resonant frequency. When the volume and material of an object are constant, the resonant frequency of the object is only related to its density. The strength of an object is related to its density, so the natural vibration frequency of the object determines the strength of the object. If the resonant frequency of the object can be measured, the strength of the object can be derived from the strength theory.
The dynamic tester is an instrument for measuring the resonant frequency of an object.
 It is widely used in the measurement of elastic modulus of concrete, carbon, slate, glass, brick, plastic, and metal materials in the fields of metallurgy, construction, bridges, and hydropower.

Features:
1. Single chip microcomputer and integrated circuit design and processing data are adopted to realize the whole process automation.
2. Equipped with RS230 communication port, with special analysis software, can collect the internal line of frequency and amplitude, and calculate the frequency elastic modulus accurately.
3. Equipped with special instrument , able to collect and analyze
4. The digital potentiometer is used to increase the output frequency of the manual measurement frequency to make the measurement process more simple and accurate.

Technical Parameters:

Frequency test range	10Hz-50kHz
Measuring error	less than 2%
Frequency sensitivity	1Hz
Sensitivity	128*64 LCD screen output, micro printer printing, (with computer display frequency display)
Voltage	AC220V+ 10%, 50Hz, <60W
Environmental conditions	0 ~ 40 ºC relative humidity < 90%
Working time	can work for 8 hours continuously
Output power	0-15W
Working time	continuous 8h
