• Model NO.：SX-2.5-12
• Power：2.5kw
• Temperature：Rt + 50-1000 ºC
• Studio Size：80 * 120 * 200mm
• Timing Range：1-9999s
• Temperature Resolution：1 ºC
• Atmospheric Pressure：86-106kpa.
• Relative Humidity：≤ 85% Rh.
• Transport Package：Plywood Case
• Specification：440 * 460 * 500mm
• Trademark：Chenji or OEM
• Origin：China Jinan or Others
• Production Capacity：300set Per Months

Basic Info.

Model NO. SX-2.5-12 Power 2.5kw Temperature Rt + 50-1000 ºC Studio Size 80 * 120 * 200mm Timing Range 1-9999s Temperature Resolution 1 ºC Atmospheric Pressure 86-106kpa. Relative Humidity ≤ 85% Rh. Transport Package Plywood Case Specification 440 * 460 * 500mm Trademark Chenji or OEM Origin China Jinan or Others Production Capacity 300set Per Months

Product Description

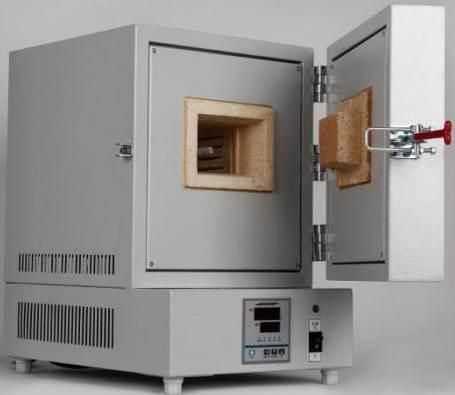

SX-2.5-12 Electric Heating Muffle Furnace for Ash analyzing

Functions:

The integrated muffle furnace is used for metallurgical factories, mining enterprises, colleges and universities, scientific research, medical institutions and various laboratories.

Characteristics
SX2 series integrated muffle furnace is composed of a box body, a temperature control system and. The shell of the box body is made of high-quality steel plate by stamping. Its surface is electrostatic spray molded and has good heat insulation performance. Small heat loss, good energy saving effect.

Temperature control system: it adopts micro-computer artificial intelligence regulation technology, with PID fuzzy control, self-tuning function and high control accuracy.

The furnace has the characteristics of balanced temperature field, low surface temperature, fast temperature rise and fall rate and energy saving.


Working conditions

1. Ambient temperature + 5-40 ºC.

2. Relative humidity ≤ 85% RH.

3. Atmospheric pressure 86-106kpa.

4. There is no strong vibration around, and the clearance around is more than 50cm.

5. The test chamber shall be free from direct sunlight and heat source radiation.

6. There is no strong air flow to directly blow the box.

7. There is no high concentration of dust and corrosive substances around.


Technical parameters

Temperature range: RT + 50-1000 ºC

Power supply voltage: 220V 50Hz

Input power: 2.5kW

Studio size: 80 * 120 * 200mm

Overall dimension: 440 * 460 * 500mm

Constant temperature fluctuation ± 2 ºC

Temperature resolution: 1 ºC

Timing range: 1-9999min.
