• Model NO.：KTS-150
• Accuracy Grade：Non Specific
• Load Way：Non Specific
• Loading Method：Non Specific
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Non Specific
• Test Weight(Kg)：5
• Interrior Material(Cm)：61*77*61
• Basket Material(Cm)：51*51*51
• Low Temp. Chamber：-70oc~-10 Oc
• Pre-Cold Time：+20 Oc~-50 Oc Within 60mins
• Test Chamber：-55 Oc~+150 Oc
• Institutional Transfer Time：Within 10seconds
• Recovery Time(High Temp.)：Exposure 30mins
• Recovery Time(Low Temp.)：Exposure 30mins
• Recovery Time：Within 10seconds
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan China
• HS Code：90321000
• Production Capacity：100-500kg

Model DescKTS-64A/B/DKTS-100A/B/DKTS-200A/B/DVoluem Size64L100L200LInterior Dimension (W×H×D)400*400*400mm500*450*450mm500*600*500Exterior Dimension (W×H×D)1420*1930*2000mm1520*1990*2050mm1700*2400*2200mmStructureTwo/Three ZonesTwo/Three ZonesTwo/Three ZonesMaximum Sound Level70 dBA70 dBA70 dBAElectric Current55A max78A max120A maxCooling SystemWater CoolingWater CoolingWater CoolingTemperature Range-65°~150°C-65°~150°C-65°~150°CTemperature Fluctuation±1.0°C±1.0°C±2.0°CPreheating Temperature Limit200°C200°C200°CHeating Rate0°C~200°C/30 min0°C~200°C/30 min0°C~200°C/30 minPrecooling Temperature Limit-70°C-70°C-70°CCooling Rate0°C~ -70°C/90 min0°C~ -70°C/90 min0°C~ -70°C/90 minTemperature Recovery TimeIn 10 minIn 10 minIn 10 minTest Area Bearing50 Kgs50 Kgs80 KgsShelf Bearing20 Kgs30 Kgs30 KgsSetting Range-70°C~200°C-70ºC~200ºC-70ºC~200ºCOutput Mode(control method)control method(control method)Power supply50/ 60 HzAC 380V ±10%,50/ 60 HzGross Weight475 Kgs650 Kgs950 Kgs

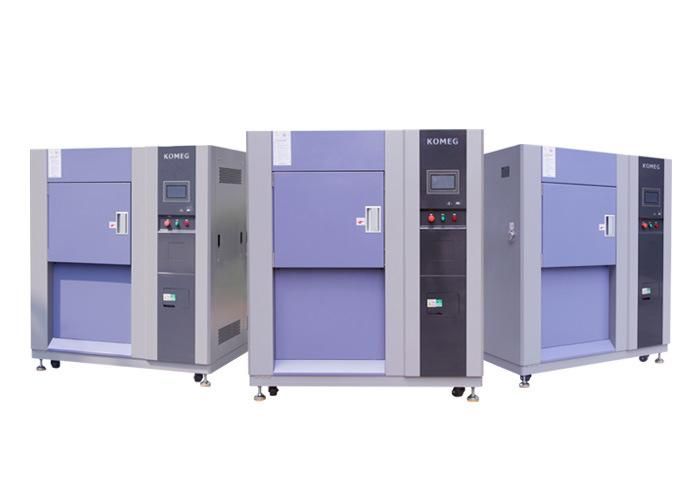

Overall Feature of the Thermal Shock Chamber:

Thermal Shock Chamber's Type:	Three cabinet version, Air to air vertical type thermal shock chamber.
Testing Type of thermal shock chamber:	Time based thermal shock (Test specimen   dwells at each test area for   a definite  period of time defined by the respective dwell timer)
Cooling Method:	Cooling by Refrigeration, and Cooling by Liquid Nitrogen (LN2) circulation/ injection.
Heating Method:	Electrical Resistance Heaters.
Nominal Operating Temperature Range:	Hot Cabinet : ≤ +40º C  to ≥ +150º C Ambient cabinet : ≤ +10º C  to ≥ +40º C Cold cabinet : ≤ -65º C  to ≥ +60º C (Cooling by refrigeration)  Cold testing cabinets :  ≤ -110º C to ≥ +60º C (Cooling by liquid nitrogen).
Temperature  Accuracy :	± 1ºC
Test Specimen Load:	3 kg Compact Stainless Steel.
Test Specimen Recovery Time :	≤ 5.1 minutes to cool from+150º C to -65º C (by refrigeration cooling in cold test cabinet) ≤ 5.3 minutes to heat from -65º C to +150º C. (Heating in hot cabinet) ≤ 5.2 minutes to cool from +150º C to +25º C. (Cooling in ambient cabinet) ≤ 5.3 minutes to heat from    -65º C to +25º C. (Heating in ambient cabinet)
Basket Transfer Type:	Electro mechanical elevator/ pneumatic piston.
Basket Displacement  Speed:	≤  10  seconds  (without  jerks  &    mechanical shock
Basket Load Carrying Capacity:	≥25kg.
Number of Settable Test Cycles:	0 to 9999 cycles (operator re-settable).
Dwell Timers Set Range:	0 to 99 minutes with least count of seconds.
Cold Cabinet Gasket Heating:	By diathermic oil circulation.

After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
