• Model NO.：BPT-01
• Specimen Size：75mm×75mm
• Pressure Area：28.26 Cm2
• Spraying Speed：450cm,S, 550cm,S, ,S
• Trademark：Pubtester
• Origin：Shandong, China
• Production Capacity：30 Sets,Quarter

Basic Info.

Model NO. BPT-01 Specimen Size 75mm×75mm Pressure Area 28.26 Cm2 Spraying Speed 450cm/S, 550cm/S, /S Trademark Pubtester Origin Shandong, China Production Capacity 30 Sets/Quarter

Product Description

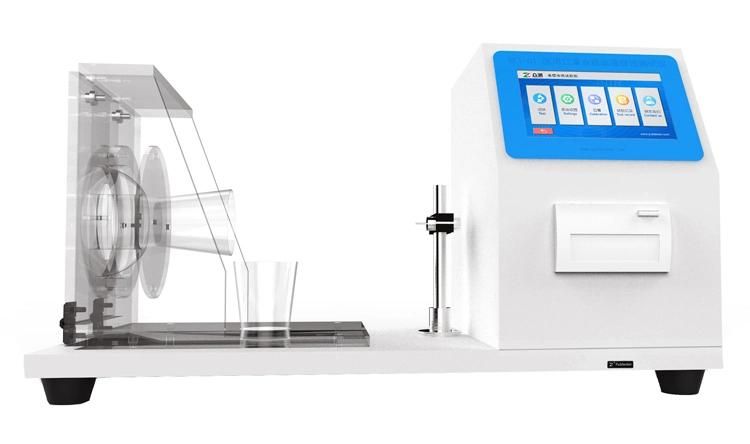

BPT-01 Mask Synthetic Blood Penetration Permeability Tester
BPT-01Mask Synthetic Blood Penetration Permeability Tester is used to test the particle filtering efficiency of daily protective masks, medical masks and respirators.



Technical Features

• 7 inch color HD touch screen for easy use
• The convex sample fixing device can simulate the actual use state of the mask
• Leaves the target area of the test without damaging the sample and allows synthetic blood to be distributed to the target area of the sample
• The test tank is equipped with a special fixing device, which is convenient for customers to operate
• Equipped with an automatic sample clamping device, without manual clamping
• Special constant pressure injection device, which can inject a certain volume of synthetic blood in a controlled time
• Can fully simulate the average human blood pressure 10.6kPa, 16kPa, 21.3kPa corresponding to the injection speed for testing
• Professional software program design can be used to judge whether the experimental results are qualified
• Equipped with micro-printer for printing test results in real time
• Equipped with a target plate, which can block the high-pressure edge part of the jetted liquid flow, and only let the steady-state flow part jet onto the sample, which increases the accuracy and repeatability of the liquid velocity jetted onto the sample
• With a powerful data storage function, which can store up to 50,000 test records
• Equipped with micro-printer and standard RS232 interface, which is convenient to data output and transmission
• Overvoltage protection and power-down memory ensure the operating safety
• GMP "computerized system" test software is available, with user management, rights management, data audit tracking and other functions (Optional)

Applications

Basic Application

Face mask

Suitable for synthetic blood penetration testing of medical protective masks, medical surgical masks, ordinary medical masks, etc.

Technical Specifications

Specifications	BPT-01
Press Range	0~0.04MPa
Accuracy	±1kPa
Spraying Distance	300mm~305mm (adjustable)
Nozzle Diameter	0.84mm
Specimen Size	75mm×75mm
Pressure Area	28.26 cm²
Spraying Speed	450cm/s, 550cm/s, 35cm/s
Power Supply	AC 220V 50Hz
Net Weight	30 kg

Standards
ASTM F 1862-07, GB 19083, YY/T0691, YY0469, ISO 22609

Configuration
Standard Configuration: Instrument, Micro-printer

FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
