• Model NO.：XHLJ504L
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHLJ504L Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

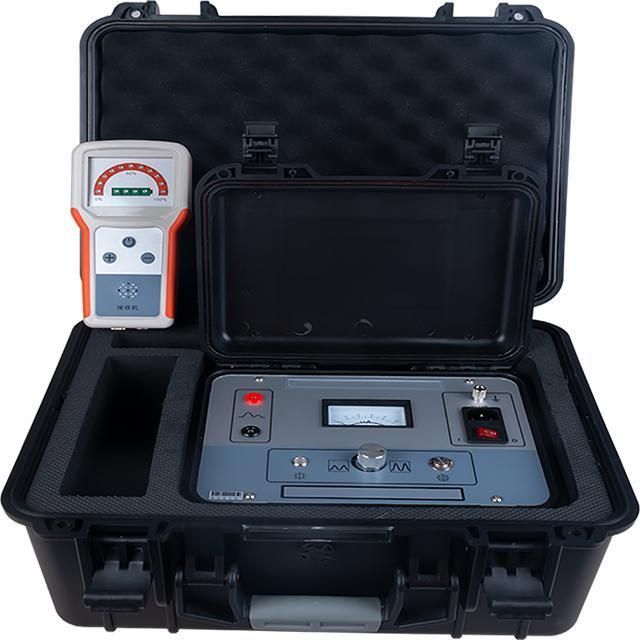

  Product Introduction§1.Introduction Cable Route tracer is specially-designed for detecting the underground cable layout position and underground depth. in a certain range. Cable route detector consists of signal transmitter and receiver (Cable fault pinpoint detector), both of which finish the detection. By united operation the Cable route detector could exactly pinpoint the cable route in the probable range of cable burial.  §2 ,Main consist of cable route tracer Cable route tracer mainly consists of route signal transmitter and
receiver. 2.1 Cable Route signal transmitter Cable route tracer is the big power route signal transmitter required in detecting the underground cable route.  2.1.1 Main Technical Index Parameters. a) big power output, anti-vibration, strong anti-interference
ability, stable and reliable; b) With reliable over current, open circuit and short circuit protection function; c)Output
Frequency: Audio Frequency. d) Output signal:intermittent,0~50Vpp e) Working power supply:220V(1±10%) 50Hz(1±5%);f) Output power:100W; g) Output current:0~2A;
