SYD-17144 Carbon Residue Tester (Micromethod) of Petroleum Products
Shanghai Changji Geological Instrument Co., Ltd.- Application：petroleum products
- Total Power：1400W
- Detection：Carbon residue
- Standard：GB,T17144-1997
- Transport Package：by Carton or by Wooden Case
- Specification：500mmx430mmx340mm
Base Info
- Model NO.：SYD-17144
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809000
- Production Capacity：1000 Sets,Month
Description
I.Product Description
1.SummaryThis instrument is designed and made as per GB/T17144-1997 Standard Test Method for Carbon Residue of Petroleum Products-Micromethod. It is suitable to determine the the amount of carbon residue of petroleum products.
2. Main technical features1.This instrument adopts all-in-one structure. It consists of two parts: electrical control chamber and high temperature heating furnace. The design is simple and reasonable.2.It adopts single chip machine system. The instrument controls the whole procedures automatically according to program preset.3.The screen adopts all English interface. Operator can do determination by prompts on the screen even no need to read the operation manual. Easy to operate.4.It controls the flow rate of nitrogen, temperature heating rate and preset temperature automatically. Easy to adjust the flow rate. The heating rate is accurate and temperature control is stable.5.It collects test data and calculates results automatically. It can print and save the data according to customer's requirements.6.The measurement range of this instrument is 0.10%(m/m)~30.0%(m/m). The test result is equivalent to Conradson method if the carbon residue is higher than 0.10%(m/m).7.The instrument can also be used to determine the petroleum products composed of distillate oils which carbon residue is lower than 0.10%(m/m). But the specimen shall be sampling to 10%(V/V)distillation residue according to GB/T6536 firstly.8. It equips a electric balance to achieve the automation of sample weighing and data input.
3.Main technical specifications
1. Power supply: AC(220±10%)V, 50Hz
2. Power consumption: ≤1400W
3. Temperature of coke chamber: 500ºC
4. Temperature control accuracy: ±2ºC
5. Ambient temperature: 15ºC~35ºC
6. Relative humidity: ≤85%
7. Dimension:500mm×430mm×340mm
8. Net Weight: 18.5kg II.Company Profile

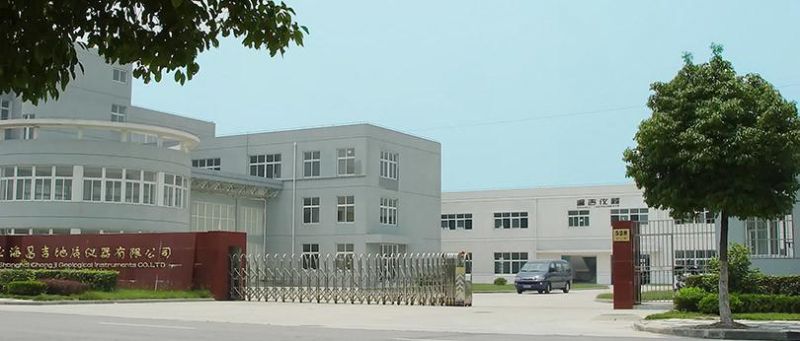

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

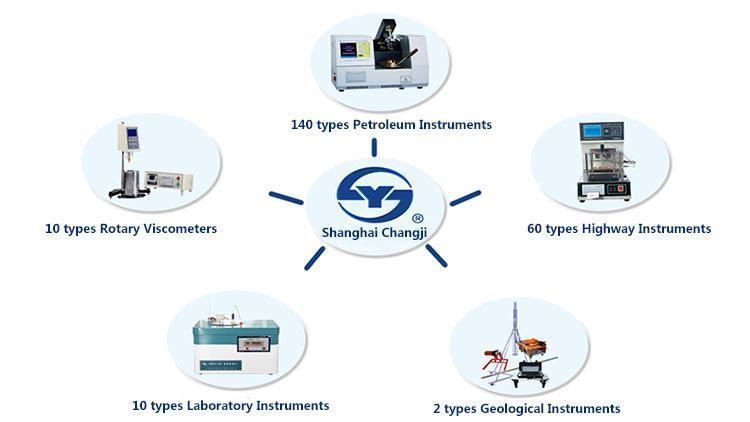

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
The highway instrument three major index:penetrometer,ductility tester and softening point tester.Changji's products are with the advanced technical features and fit the ISO, ASTM, IP, GB and other international standards.Recent years,we develop smart instruments with the communication port to realize the remote control, transmitting test parameters and networking management of Laboratory equipments. Changji pays more attentions to develop and invest in the technology innovation.So far,we have gotten the China National Invention Patent 1,the No. ZL 2005 1 0024291.9;Utility Model Patent 2,the No.ZL 2004 2 0023460.8 and ZL 2013 2 0365490.6.Other two national innovation patents and two ulility model patents are in the process of the official investigation.Changji's products become more and more stabilization and elegant after many years development and research.So selecting Changji,you choose the precipitation of time and satisfication.

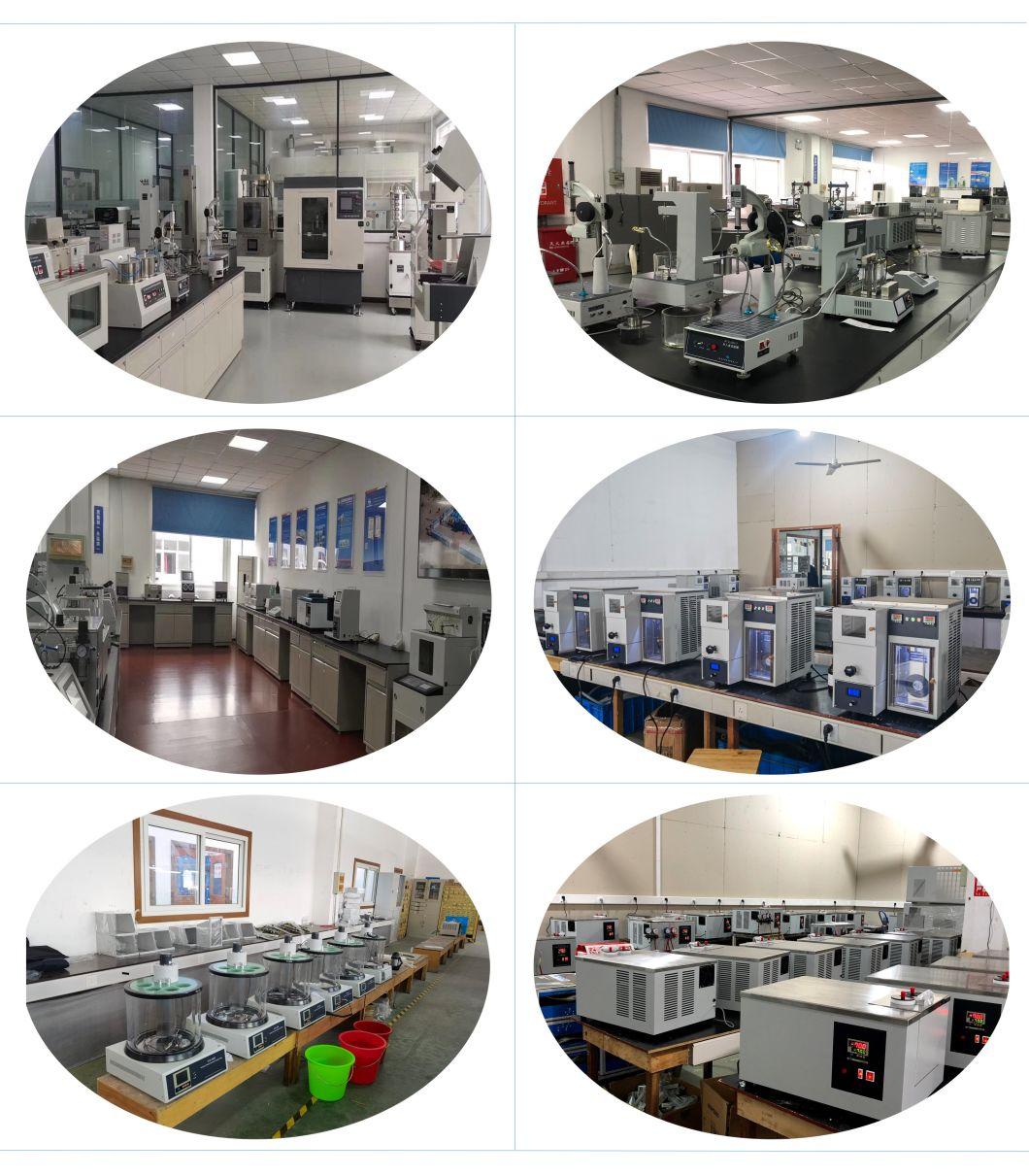

III.Sample Room and Work Shop

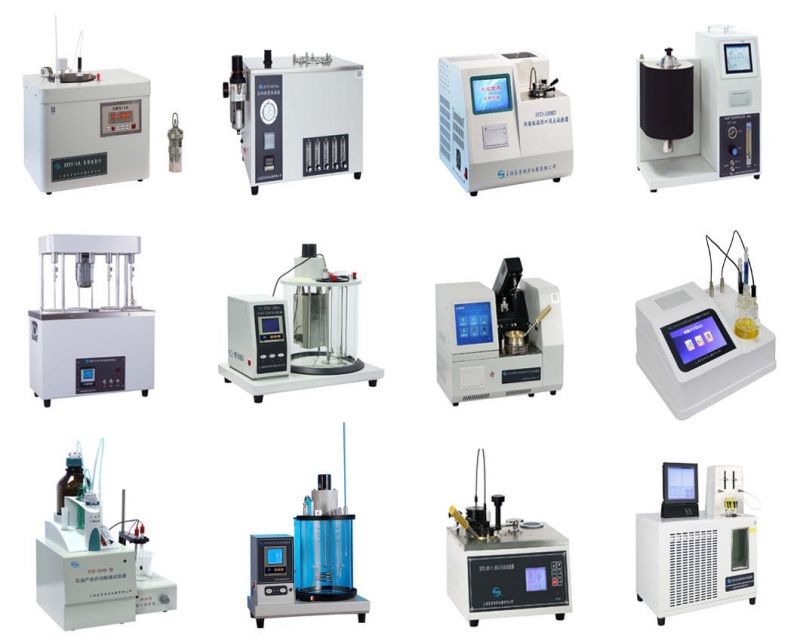

IV. Hot Products
V. Product Packing and Transportation
VI. FAQ
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
2. How can I choose the right one for me?
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
VII. Certificate
