6 Phase Protective Relay Test Set Differential Protection Over Current Earth Fault Test Equipment
Haomai Electric Power Automation Co., Ltd.- After-sales Service：on-Site Training
- Warranty：3 Years
- AC Current Output：6 Phase, 30A,Phase
- AC Voltage Output：6 Phase, 120V,Phase
- DC Current Output：6 Phase,10A,Phase
- DC Voltage Output：6 Phase,160V,Phase
Base Info
- Model NO.：HME-1200
- Differential Protection Test：Available
- Binary Input：8 Channels
- Binary Output：4 Channels
- Operation System：Inbuild Windows
- Remote Control：Win10,Win7,Win XP
- Transport Package：Standard Export Wooden Package
- Specification：420*360*210mm3
- Trademark：HME,OEM
- Origin：China
- HS Code：9030820000
- Production Capacity：500 Set,Year
Description
Product Description

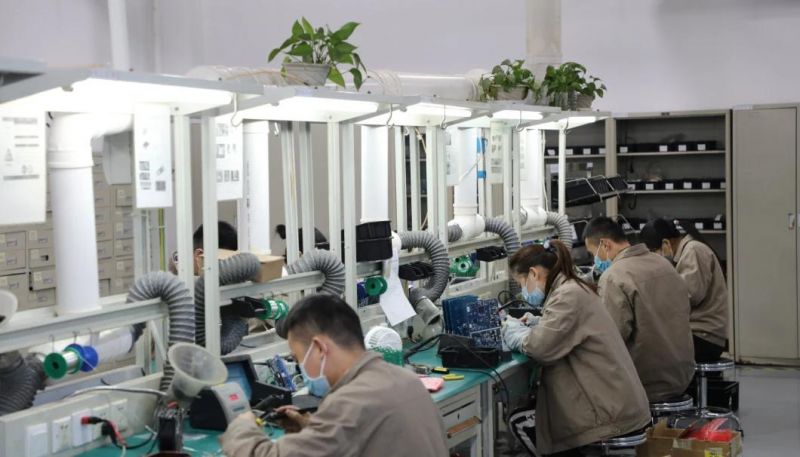

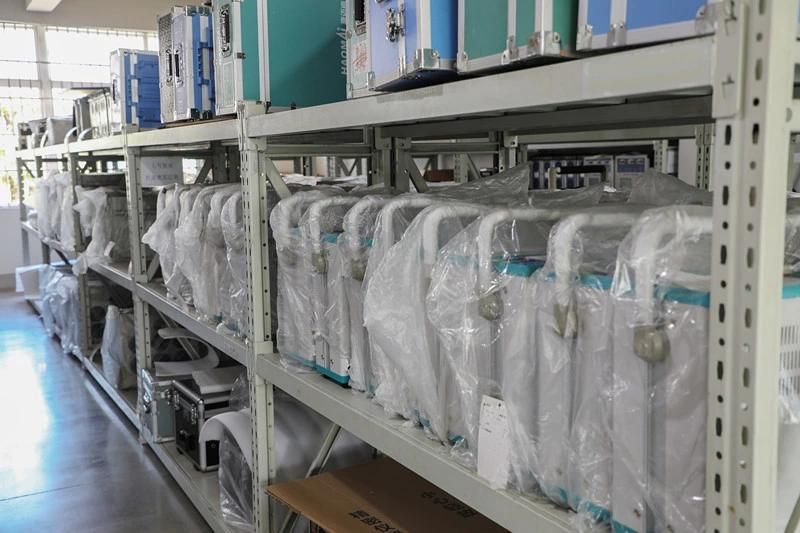

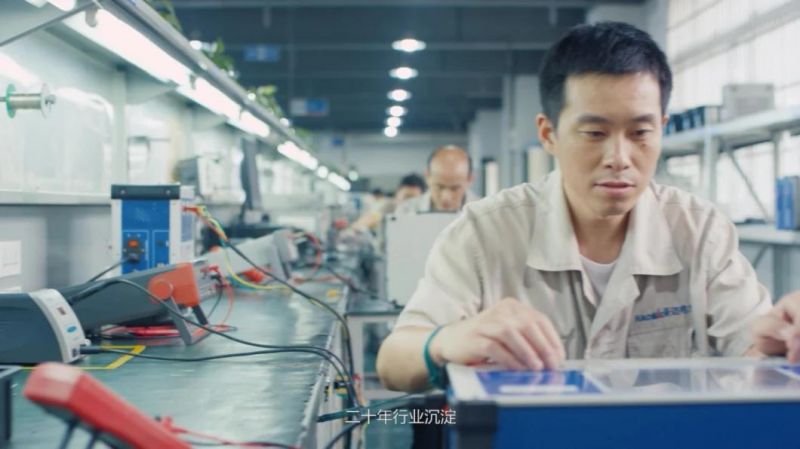

High Power 6-phase Protection Relay Test SystemSetting Range 6-Phase AC(L-N) 6x0…40A 3-Phase AC(L-N) 3x0…80A 1-Phase AC(LL-LN) 1x0…240A DC(L-N) 6x0…±20 A Power 6-Phase AC(L-N) 6x300VA At 40A 3-Phase AC(L-N) 3x450VA At 80A 1-Phase AC(LL-LN) 1x1000VA At 240A DC(L-N) 6x120VA At 20A Accuracy AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A) DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A) Resolution 1mA Setting Range 6-Phase AC(L-N) 6x0…150V 3-Phase AC(L-N) 3x0…300V DC(L-N) 6x0…±175V Power 6-Phase AC(L-N) 6x80VA At 150V 3-Phase AC(L-N) 3x100VA At 300V DC(L-N) 6x80VA At 175V Accuracy AC: ±2mV(0.2~2V), ≤0.1% (2~150V) DC: ±10mV (0.5~5V), ≤0.2% (5~175V) Resolution 1mV Auxiliary DCFrequency Range: 0~1200Hz Accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz) Resolution: 0.001Hz Phase Range: -360° ~+360° Accuracy: 0.1° Resolution: 0.01° Harmonic Superposition Order: 2~24 Times Distortion: ≤0.5% Certifications Company Profile
Our Advantages
