• Model NO.：HZJS-1B
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Automatic Interfacial Tension Tester
• Measuring Range：0-200mn,M
• Accuracy：0.1%( Test Result)±0.1 Mn,M
• Mains Voltage：AC220V±20% 50Hz±10%
• Maximum Power Dissipation：20W
• MOQ：1
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9024109000
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. HZJS-1B Control Computer Control Weight 0-100Kg Power Source AC220V Name Automatic Interfacial Tension Tester Measuring Range 0-200mn/M Accuracy 0.1%( Test Result)±0.1 Mn/M Mains Voltage AC220V±20% 50Hz±10% Maximum Power Dissipation 20W MOQ 1 Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9024109000 Production Capacity 1000 PCS/Month

Product Description

Portable Oil Particle Counter Equipment For Lube Oil Clealiness Analysis

I. Overview

The HZJS-1B portable oil particle counter is designed using the principle of photoresist (shading method) to detect the size and number of particles in a liquid. Can be widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields for hydraulic oil, lubricating oil, transformer oil (insulating oil), automotive oil (turbine oil), gear Oil, engine oil, aviation kerosene, water-based hydraulic oil and other oils are used to detect solid particle contamination, and to detect insoluble particles in organic liquids and polymer solutions.



II. technical indicators

1. Measurement range: 1um ~ 100um
2. Measurement channel: 8 channels, particle size can be set arbitrarily (according to the selected calibration curve particle size range)
3. Sampling volume: ≥0.2ml
4. Sampling speed: 5 ~ 80ml / min
5. Resolution: <10%
6. Coincidence error limit: 10,000 grains / ml
7. Pressure range: low pressure: 0~6bar high pressure: 3~400bar
8. Viscosity range: maximum 350cst
9. Data Storage: 1000 Groups
10. Power supply: AC220V±10%; 50Hz; ≤200W
11. Battery capacity: 5200mA
12. Battery continuous working time: 4 to 6 hours
13. Data output: built-in printer and RS232 interface

III.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

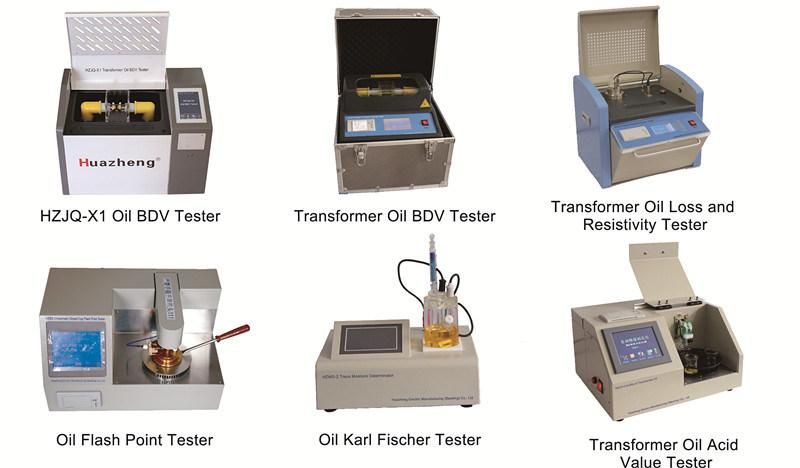

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


 IV.Customer Visit



V.Exhibition




VI.Similar Recommendation
