• Model NO.：GDKC-5000
• Weight：0-100Kg
• Power Source：AC220V
• Port Maximum Voltage：24V
• Transition Resistance Maximum Range：100ohm
• Transition Resistance Measurment Range：1A Level: 0.4~20ohm
• Waveform Record Time：300ms
• Sampling Rate：30k
• Time Resolution：0.1ms
• Accuracy: Transition Resistance：± 5%Reading± 0.1ohm
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030820000
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. GDKC-5000 Weight 0-100Kg Power Source AC220V Port Maximum Voltage 24V Transition Resistance Maximum Range 100ohm Transition Resistance Measurment Range 1A Level: 0.4~20ohm Waveform Record Time 300ms Sampling Rate 30k Time Resolution 0.1ms Accuracy: Transition Resistance ± 5%Reading± 0.1ohm Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030820000 Production Capacity 2000PCS/Year

Product Description

I. General Information

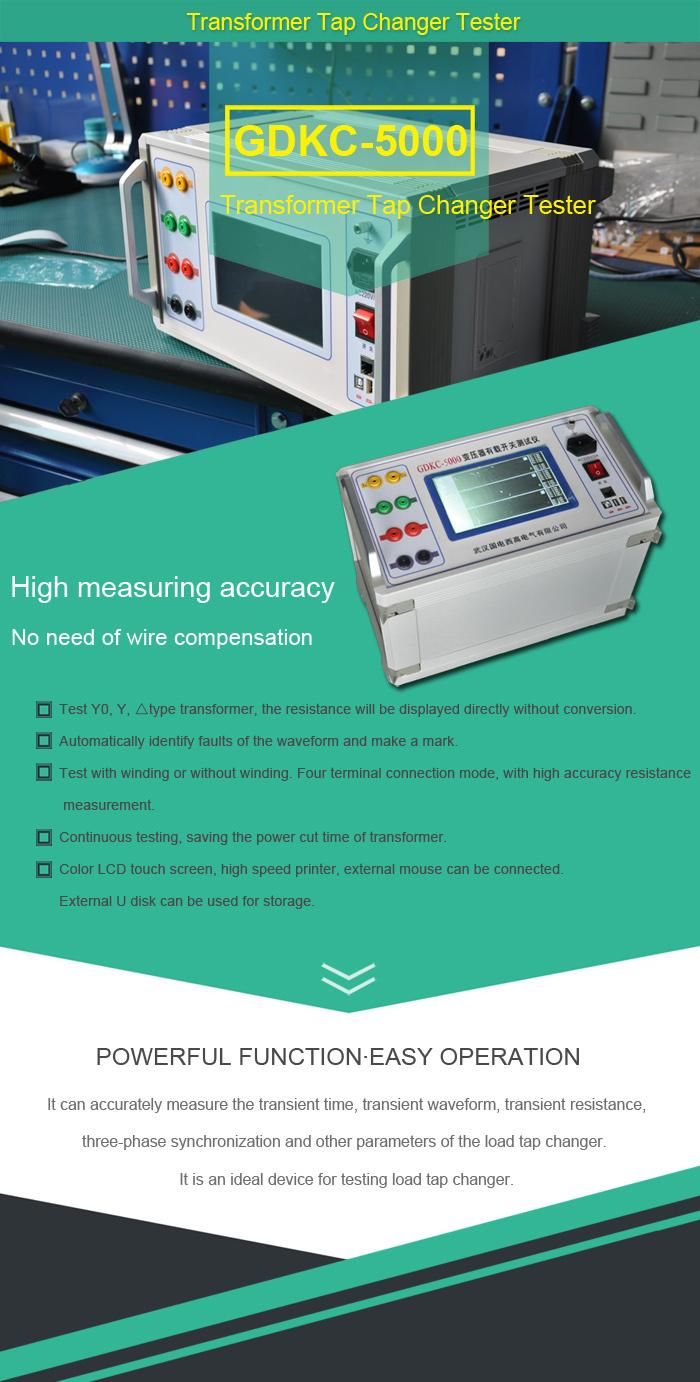

GDKC-5000 Transformer on-load tap changer tester is designed by general technical condition DL/T846, 8-2004 according to the national power industry standard high voltage test equipment, which can meet the requirement of checking the action sequence of on-load tap changer and measuring the switch time inPower equipment and preventive testing procedures. It is an ideal equipment to achieve the precise paramenter measurement of transition time, transition waveform, transition resistance, the same period of the three-phase for on-load tap changer.


II. Features

Measure Y0, Y, type transformer, directly display resistance value without conversion.
Humane data analysis and automatically identify the fault of waveform and mark it.
Waveform displays the automatically adjusted resistance value and magnitude of the time according to the sampling data type transforer can display the same period of three phase.
Can test with or without winding
Four-terminal wiring way, providing high precise resistance measurements and without compensation wire
Can continuously test to save the transformer outage time during testing.
Instrument can generate word report to make data management and query easier.
Instrument is control by small computer with 800 x480 color LCD touch screen, high-speed printer and can support plug-in mouse, easily operate.
Automatically save 1000 sets of data and save with external U disk.


III. Specifications


Three-phase current source to charge and charging current	3A/1A level; 0.6A/0.2A level
Port maximum voltage	24V
Transition resistance maximum range	100Ω
Transition resistance measurment range	1A level: 0.4Ω ~20Ω 0.2A level: 10Ω ~100Ω
Waveform record time	300ms
Sampling rate	30k
Time Resolution	0.1ms
Resistance resolution	0.1Ω
Accuracy	Transition resistance: ± 5%reading± 0.1Ω Transition time: ± 0.5%reading± 0.2mS
Temperature	-10~40 degree
Relative humidity	<85%RH
