Test Instrument

Bst-01 Bone Screw Tester

Pubtester Instruments Co., Ltd.
  • Display:Digital
  • Control:Computer Control
  • Weight:0-100Kg
  • Trademark:Pubtester
  • Origin:China

Base Info

  • Model NO.:BST-01


Basic Info.

Model NO. BST-01

Product Description

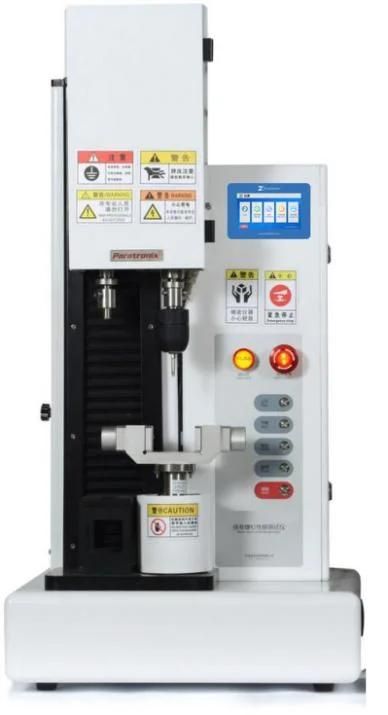

BST-01 Bone Screw Performance Tester

BST-01 Bone Screw Performance Tester, a multi-functional integrated instrument, is used to test the bone screw driving torque and self-tapping performance. It can be widely used in medical device testing institutions, medical device manufacturers and other units.

   Bst-01 Bone Screw Tester

Technical Features
  • Open structure, friendly man-machine interface operation, curve drawing, clearer test process
  • Adopt precision differential motor drive, smoother transmission, lower noise, more accurate positioning and better repeatability of test results
  • Imported custom high-sensitivity load element, TBI screw to ensure accurate displacement
  • Professional high-performance imported control system to control the coordinated action of dual servo motors
  • Fully automated measurement
  • Easy to use, highly simplified control system puts everything set up in the background for one-touch start-up
  • Professional fixture for different testing modes
  • Built-in special calibration program, easy to calibrate
  • 7-inch color touch screen with intelligent data processing functions, providing users with a comfortable and smooth operating experience
  • Multifunction: pull-out strength, self-tapping performance, torsional strength, insertion and removal behavior
  • With data automatic storage, power-off automatic memory function
  • With powerful data storage function, which can store more than 6000 test records
  • The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Technical Specifications
Load Cell Capacity5kg
  Pull-out Strength Range≤200kg
  Torque Range0-10Nm
Testing Accuracy0.5% FS
Test ModeDriving torque, self-tapping performance
Test Speed1-300mm/min (stepless speed)
Instrument Dimension  470(L)x 440(B)x 1000(H)mm
Power SupplyAC220V±22V,50Hz
Net Weight60kg

ASTM F543, ISO 6475, YY 0018-2016, YY/T 1504, YY/T 1505, YY/T 1506

Standard configuration: Instrument, Test fixture

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.
