• Model NO.：AS-120N
• Fiducial Error：5%

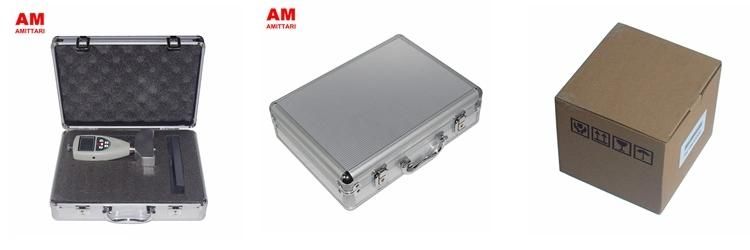

• Transport Package：Portable Aluminum Case
• Specification：175x95x40mm
• Trademark：AM
• Origin：China
• HS Code：9024800000
• Production Capacity：999PCS,Month

Measurement Range7~40 N/cmDisplay Range

0~50 N/cm

Resolution0.1Fiducial Error5%Operating EnvironmentTemperature: 0 ~ 40 ºC   Humidity: 10 ~ 90 %RHPower Supply4x1.5v AAA(UM-4) batterySize175x95x40mmWeight490 g (Not included Batteries)



Product Accessories







Standard Accessories

Main Unit



Calibration Block

Carrying CaseOperation Manual

Optional Accessories

USB/RS232C data output

Bluetooth data output



Printing Task and Determination of Screen Tension

Wire MeshPrinting TaskTension (N/cm)Ultra High Tension Wire MeshCircuit Board and Measuring Scale16~20High Strength Wire MeshMulticolor and Four-Color Printing
(Mechanical Printing)16~20High Precision Ultra Fine Wire MeshHigh Precision Multi Layer Circuit Printing25~30High Precision Polyester Net
(Standard Monofilament)Multicolor and Four-Color Printing
(Manual Printing)8~12Ordinary Polyester Net
(Standard Monofilament)Flat Object8~12Nylon MeshCurve Surface or Rough Object8~12



Commonly Used Screen Maximum Tension

*Data in the table is based on testing condition of Swiss thick gauze. Concrete data depends on the quality of network machine. With good quality network machine, the gauze will not crack even in the highest tension. but if it exceeds the maximum tension, the gauze crackes easily, please reference when trapping net.

  Maximum TensionRegulating Pressure77T200 mesh30N/cm7kg/cm90T230 mesh25N/cm6.5kg/cm100T250 mesh23N/cm6kg/cm120T300 mesh21N/cm5.7kg/cm140T350 mesh20N/cm5.3kg/cm165T420 mesh18N/cm5kg/cmNote: The above data is the reference data in the use of a factory pneumatic net machine, the specific operation according to actual circumstances.



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories

Amittari  instruments generally can be supplied with Bluetooth data  utput function ( except few instruments ) . As Bluetooth data  output is included in optional accessories, not  standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.
