• Model NO.：GW-037
• Loading Method：Dynamic Load
• Display：Digital
• Control：PLC Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-037
• Testing Temperature：Rt to 300 Deg
• Test Samaple：6 PCS
• Dimension：69*50*38cm
• Power：AC 220V, 50Hz
• Transport Package：Standard Export Safety Packing
• Specification：69*50*38cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GW-037 Loading Method Dynamic Load Display Digital Control PLC Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Packaging Wooden Case Export Markets Global Model No Gw-037 Testing Temperature Rt to 300 Deg Test Samaple 6 PCS Dimension 69*50*38cm Power AC 220V, 50Hz Transport Package Standard Export Safety Packing Specification 69*50*38cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Sets/Year

Product Description

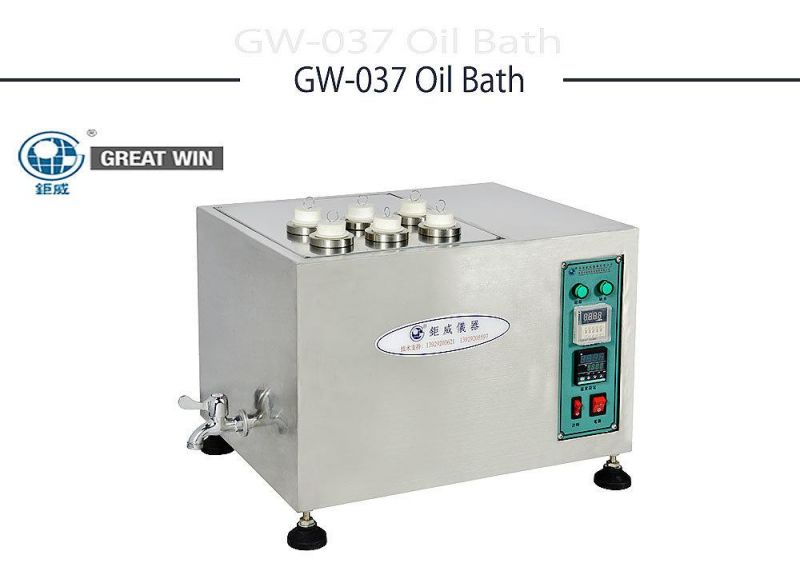

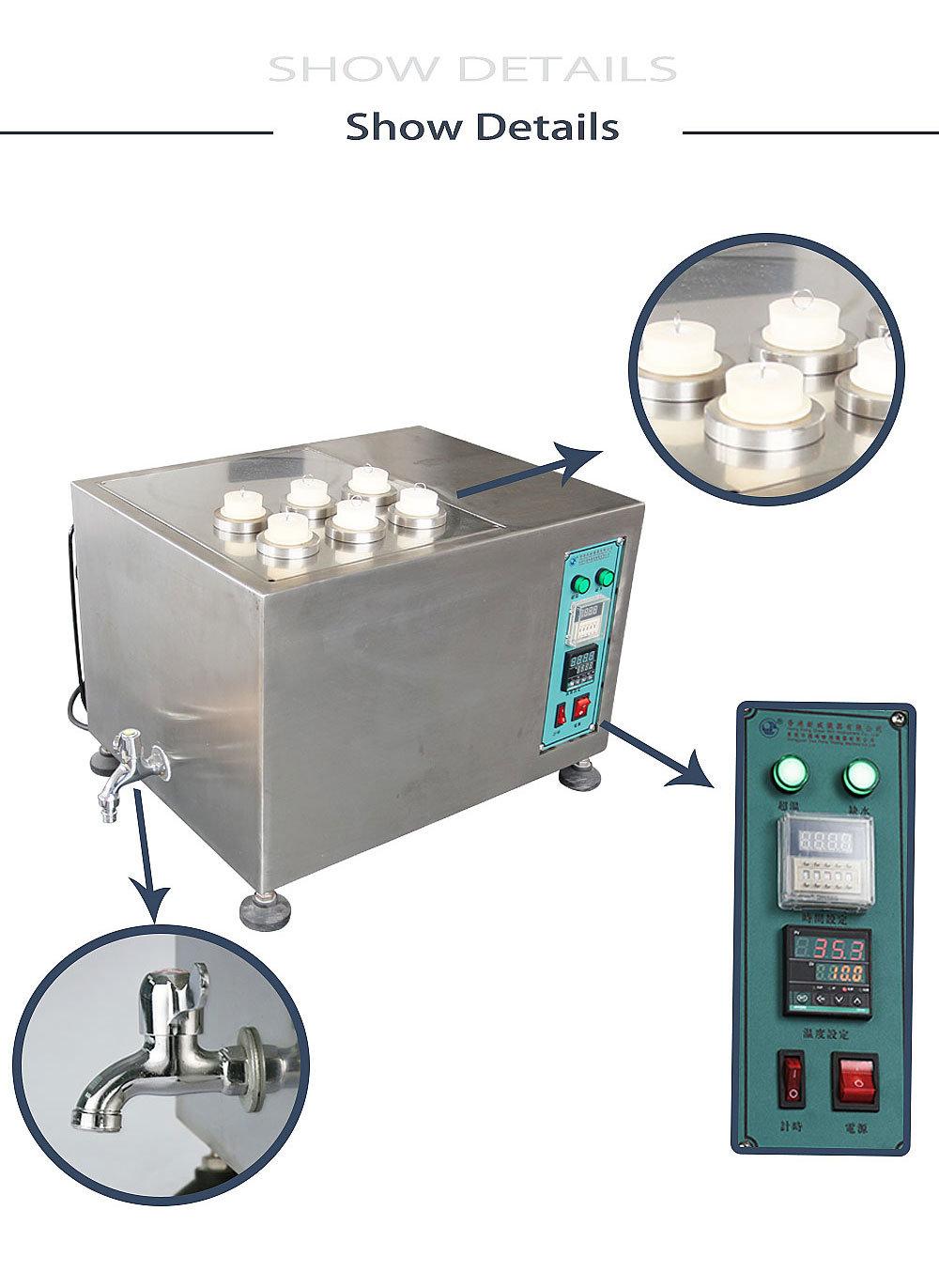

Homoiothermy Oil Bath testing machine(GW-037)

•Brief introduction:
Specially test the oily heat-endurance oiliness of rubber products such as oil seal,oil-protection coil.

•Technical Specifications:

Model	GW-037 Homoiothermy Oil Bath
Temperature:	room temp~300ºC
Test cup:	6 PCS
Dimension(W*D*H):	69*50*38CM
Weight:	28kg
Power:	220V

•Standard for:
ISO-1817,ASTM-D471,DIN-5361

•Technical Specifications:
1.standard knife mould (diameter:16)
2.Tweezer *1
3.isooctane *1

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
