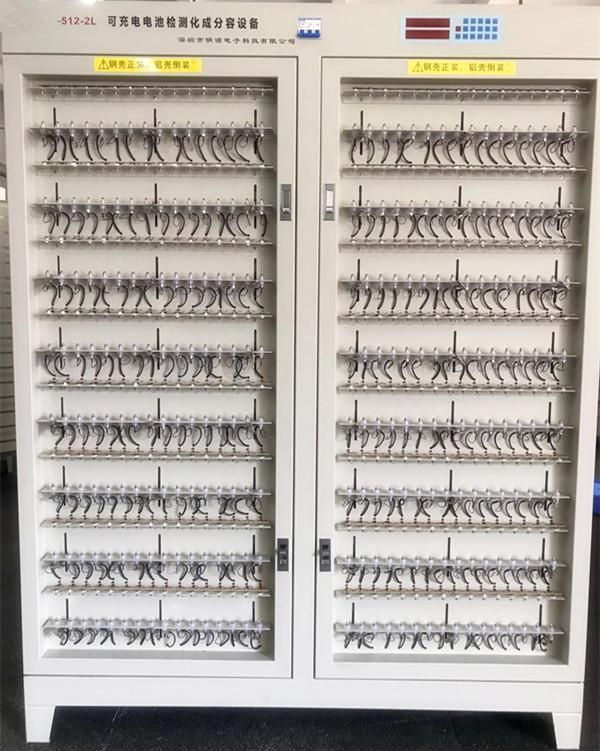

• Model NO.：TOB-512-3L

Model

TOB-512-3L

Channel No.

512

Workflow control method

Whole equipment control

Charging mode

Constant voltage, constant current

Charge cutoff condition

Voltage, current, time, capacity

Discharge mode

Constant current

Discharge cutoff condition

Voltage, time, capacity

Sampling inspection cycle

≤10s

Voltage measurement range

0~5V, Resolution 1mV

Battery voltage range

Charge: 0~4.5V  Discharge: 4.5~2.0V

Constant voltage range

3~4.5V

Voltage accuracy

± (0.05%RD+0.1%FS)

Current range

Charge: 0.015-3A  Discharge: 0.015-3A, Resolution 1mA

Current accuracy

± (0.1%RD+0.1%FS)

Time set range

Any setting within 0~30000 minutes, the time unit is min

Time accuracy

≤±0.1%

Clamp type

Four-wire method fixture

Clamp adjust range

10-90mm

Support battery type

Cylinder cell

Working power

Three-phase four-wire system, AC380V±10%, 50HZ, 14.5KW

Communication method

RS485, Baud rate 57600

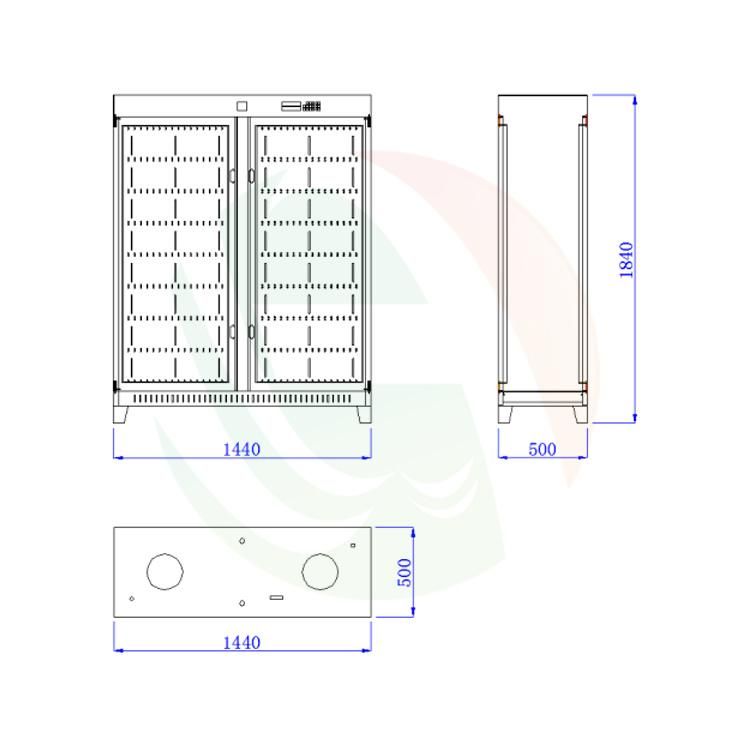

Dimension

L1550 × W500 × H1840mm

Working environment

0-40ºC

Full load operating current

Phase line up to 15A, zero line up to 3A

Startup current

Air switch closing moment about 60A

Net weight

About 300kg

System main

configuration requirements

Minimum configuration of computer system: CPU above P4, memory above 2G, hard disk space above 200G, EGA/VGA color display, one CD-ROM, one mouse, MicrosoftTM Windows XP and above, one available RS232 serial communication port, Windows support Printer. The computer system is self-contained by the user, and the number of microcomputer systems is determined according to actual needs.
