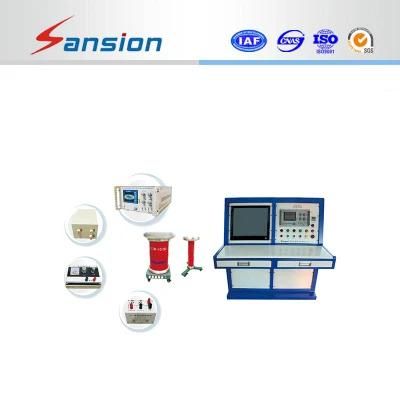

10kVA/50kv Pd Free Detection Test Equipment Partial Discharge Testing System

Sansion Power Electric Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：LCD

Base Info

  • Model NO.：SXJF
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC 110V,220V at Customized
  • Oil Cylinder Position：Under
  • Rated Capacity：0-1000kVA
  • Rated Output Voltage：0-800kv
  • Rated Output Current：0-375A
  • Cooling Way：Onan
  • Transport Package：Plywood Case
  • Specification：ISO9001 SGS
  • Trademark：Sansion
  • Origin：Wuhan, China
  • HS Code：9030339000
  • Production Capacity：100 Units

Description

Rated capacity:0-1000KVARated input voltage:0.22/0.38/3/6/10KVRated input current:0-1.25ARated output voltage:0-800kVRated output current:0-375ARated voltage of measuring terminal:100VConnection:II0Cooling:ONANWorking Duty:
 100%UN,IN , 60min
70%UN,IN  continuous working.Single PhaseFrequency:50Hz

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
