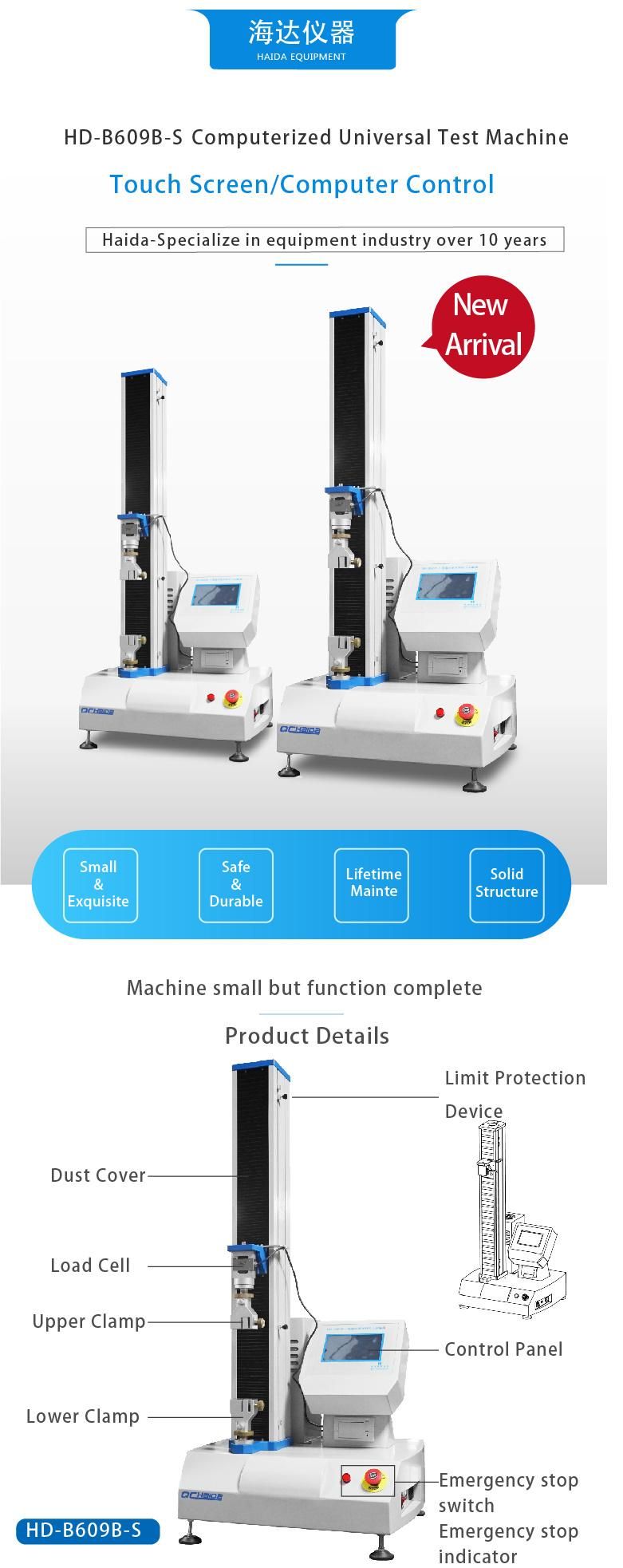

Desktop Digital Single Pole Universal Tensile Testing Machine
Dongguan Haida Equipment Co., Ltd.- Warranty：One Year
- Type：Tensile Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：HD-B609B-S
- Display：Computer Display, Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Standards：ASTM JIS Cns Pstc
- Motor：Panasonic Servo Motor
- Delivery Time：15 Days After Receive The Deposit
- Elongation Accuracy：0.001mm
- Load Cell：Celtron Sensor
- Load Resolution：1,250, 000
- Screw：High Precise Ball Screw
- Stroke：1000mm
- Capacity：10, 20, 50, 100, 200kg
- Transport Package：Strong Plywood Case
- Specification：Design Standards: GB,T16491; GB,T1040; GB,T1041; G
- Trademark：Haida
- Origin：Dongguan, China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description

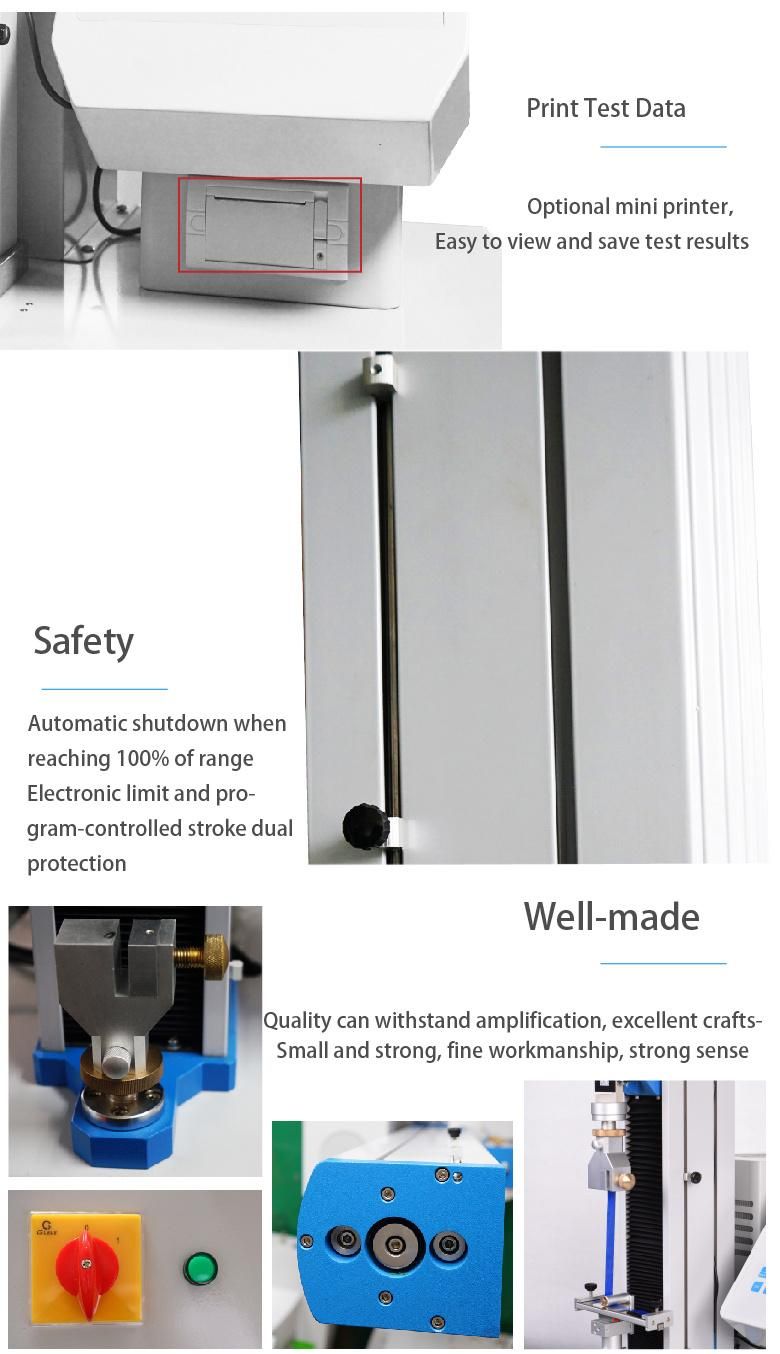

Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat

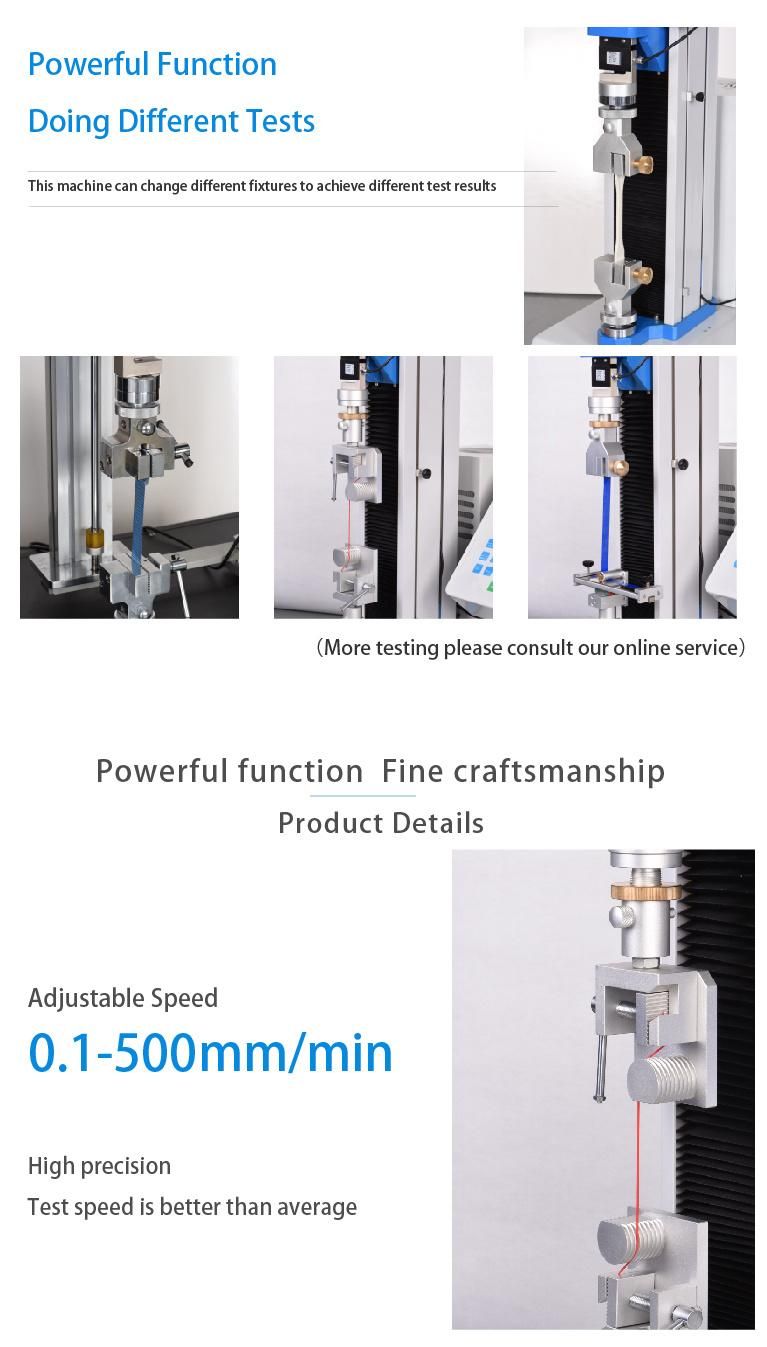

Plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Features of Film Elongation Tensile Tester:
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
3. Data transmission: RS232.
4. Displacement resolution: 0.001mm.
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Company Showing:
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
