Lab Programmable Pull Electronic Universal Tensile Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-5
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：None
  • Delivery Time：3 Days After Get Tt Payment
  • Transport Package：Standard Export Packing
  • Specification：425*400*1315mm
  • Trademark：HST or OEM
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：200 Sets Per Month

Description

Basic Info.

Model NO. WDW-5 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position None Delivery Time 3 Days After Get Tt Payment Transport Package Standard Export Packing Specification 425*400*1315mm Trademark HST or OEM Origin China HS Code 9031809090 Production Capacity 200 Sets Per Month

Product Description

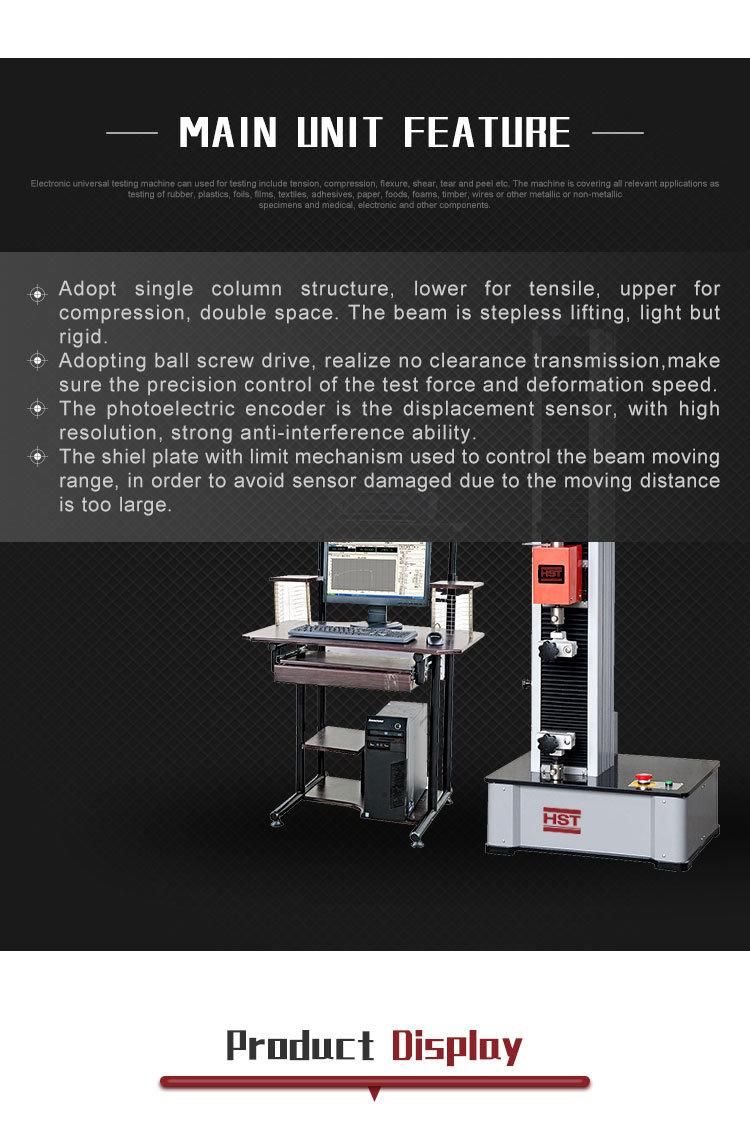

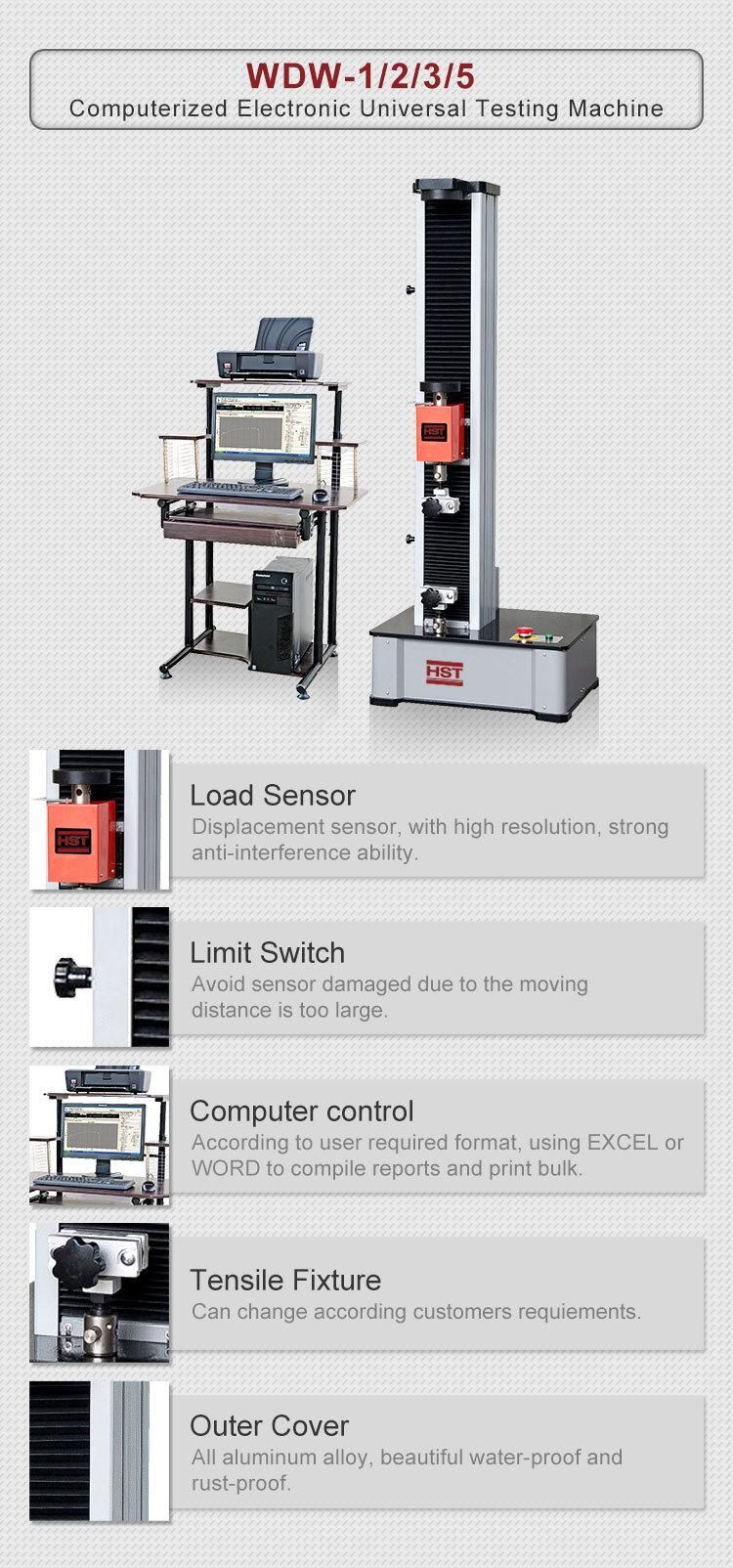

500n Computer Control Electronic Rubber Universal Testing Machine (WDW-05)
 Lab Programmable Pull Electronic Universal Tensile Testing MachineLab Programmable Pull Electronic Universal Tensile Testing MachineLab Programmable Pull Electronic Universal Tensile Testing Machine
1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
ModelWDW-05
Max. Load500N
StructureSingle Column Double Spaces
Control
Method		Computer Control
Load
Accuracy		1 Class
Load Range2%~100% FS
Displacement Resolution0.01mm
Test Speed0.05~500mm/min
Tensile Space600mm (Can be customized)
Compression Space600mm (Can be customized)
Power SupplyAC220V±10%, 50Hz (Can be customized)
GripsWedge Type, Plate Type And Other Grips As Customers' Demand
Dimension425*400*1315mm
Weight120.00 KG

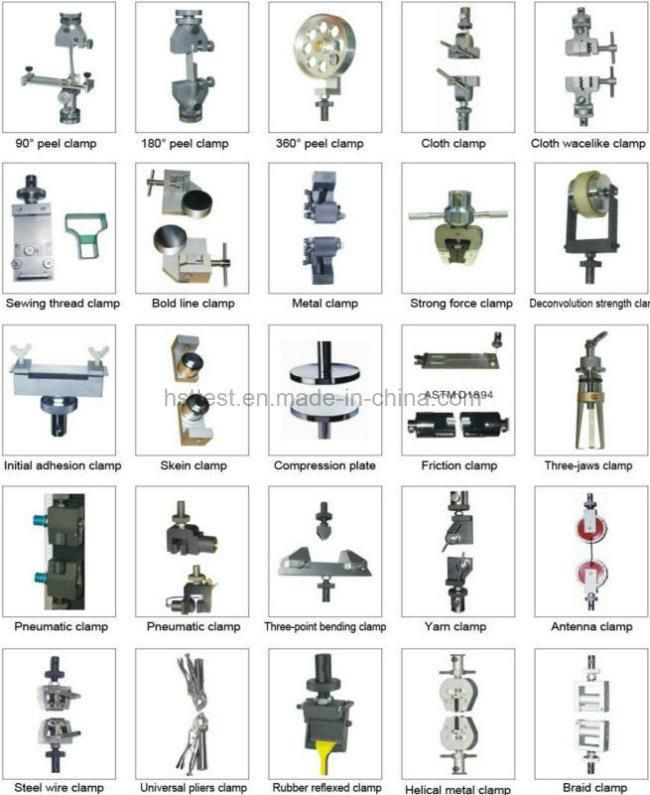

Fixtures for choice according to different material:
Lab Programmable Pull Electronic Universal Tensile Testing Machine

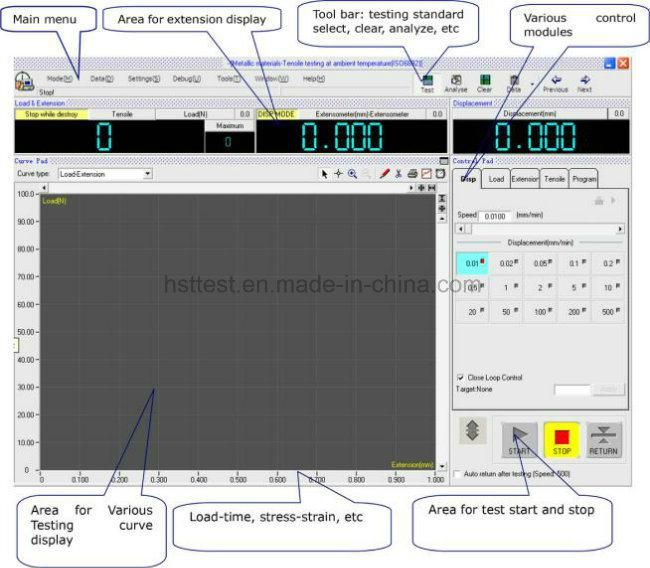

Machine software show:
Lab Programmable Pull Electronic Universal Tensile Testing Machine

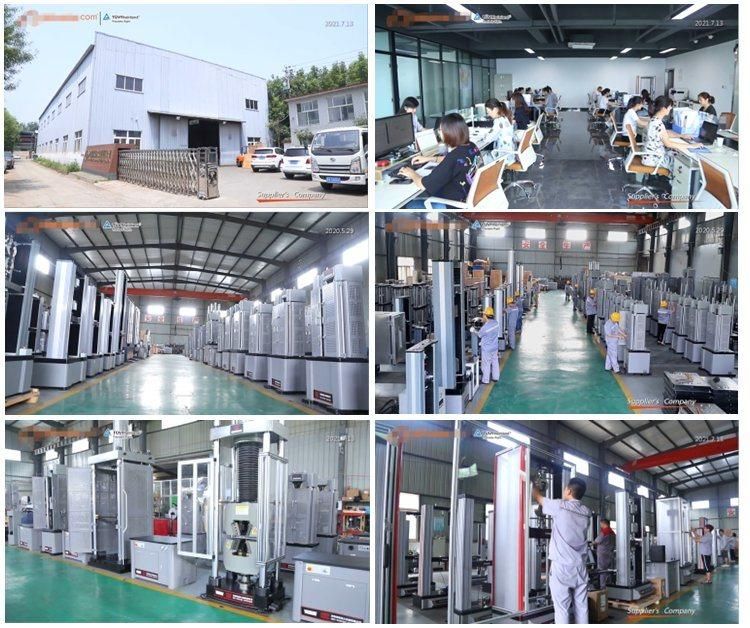

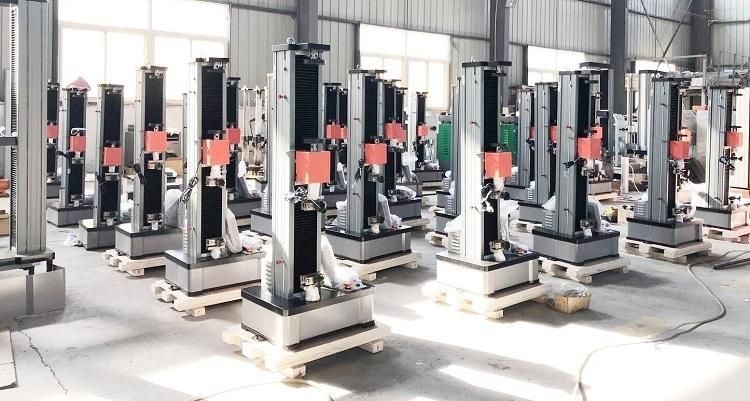

WORK SHORP:
Lab Programmable Pull Electronic Universal Tensile Testing Machine
EXHIBITON
Lab Programmable Pull Electronic Universal Tensile Testing MachineOUR Customers all over the world

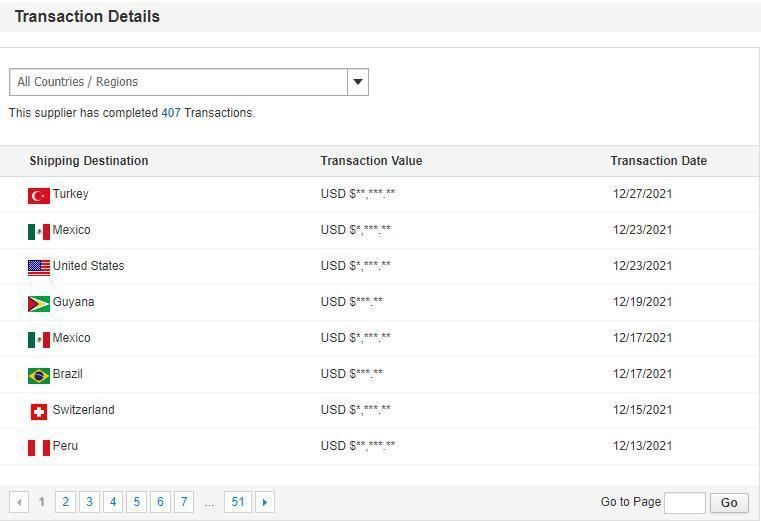

Lab Programmable Pull Electronic Universal Tensile Testing MachineTransactions trade:
Lab Programmable Pull Electronic Universal Tensile Testing MachineCERTIFICATE
Lab Programmable Pull Electronic Universal Tensile Testing Machine
HST GROUP machines scope:
A: Universal Testing Machine :Electronic/hydraulicSingle column/door tye WDS/WDW/WE/WEW/WAW series
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting machine, polishing and grinding machine, mounting machine, microscopes.

Dear Customer, with enough technical engineers and skilled workers, we could supply high quality machines with moderated prices. All the machines could be OEM and customized according to your special requests. Welcome to visit our factory in Jinan city, for more informations please contact Sunny for more details :
