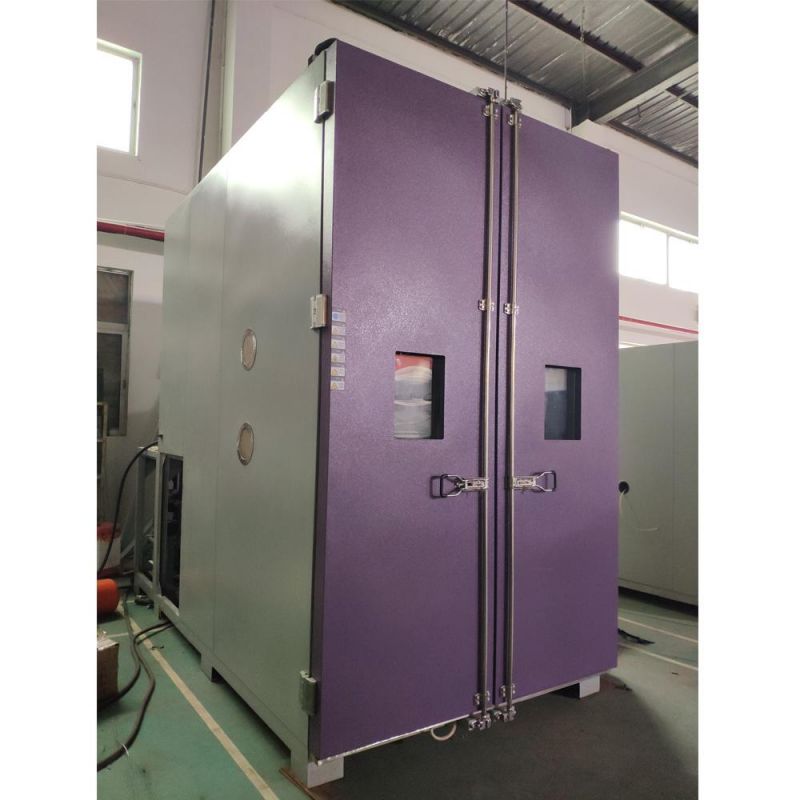

• Model NO.：HTPV-16
• Control：Touch Screen +Pid Intelligence
• Can Placed Test Modules：12 PCS
• Inner Chamber Size：Approx 1.5×2.5×1.5m (L*W*H)
• Transport Package：Wooden Case
• Trademark：HOTOTECH
• Origin：Dongguan,China
• Production Capacity：500 Set a Month

Test temperature

85ºC±2ºC

Relative humidity

85%±5%

Temperature fluctuation

≤±1ºC

Temperature deviation

≤±1ºC

Temperature uniformity

≤2ºC

Humidity range

30~95%RH

Relative humidity deviation

≤±2.5 %RH(Humidity 75%RH)

Common moisture point

85ºC/85%RH continue time≥1000h 90ºC/90%RH continuity≥1000h

control

Touch screen +PID intelligence

Can placed test modules

12 PCS

Inner chamber size

approx 1.5×2.5×1.5m (L*W*H)

Outer chamber size

approx 2.5×3.0×2.5m (L*W*H)

Inner chamber material

Stainless steel(SUS #304)

Outer chamber material

Steel plate baking finish

PID automatic calculus

Thermal insulation material

 hard foam and glass wool

Chamber door

double type

With cut off program memory

restart after can automatic restart and continue perform program function

Communicate interface

RS-232 or RS-485 communicate interface

Air supply circulation system

Motor

Refrigerant

Environmental protection refrigerant;

condenser

water-cooled

Interface show

Touch screen control

Language

 Chinese and English change each other

data acquisition

Export, view graphic function

Power

380V 60HZ

1.High quality and best after-sell service

2.100%  quality inspection before delivery

3.Managment Innovate

4.Strong R & D team

5.Can handle customers's feedback  problems and doubt timely

6.Our testing machine have one year Warranty time
